RTD Sensor with M4 Threaded Housing RTD-850M - OMEGA - #1

Text version of the page

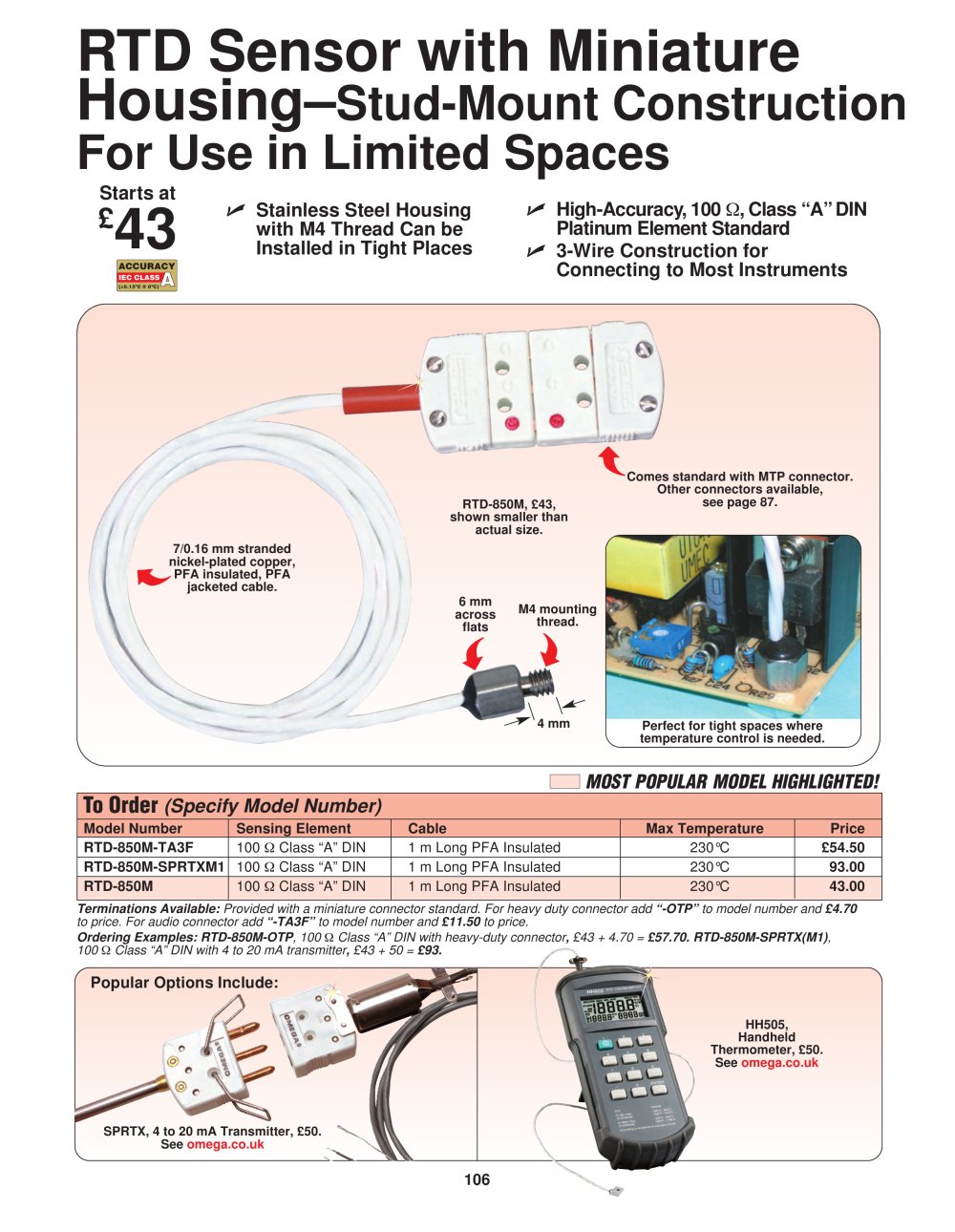

106 Terminations Available: Provided with a miniature connector standard. For heavy duty connector add “-OTP” to model number and £4.70 to price. For audio connector add “-TA3F” to model number and £11.50 to price. Ordering Examples: RTD-850M-OTP, 100 Ù Class “A” DIN with heavy-duty connector, £43 + 4.70 = £57.70. RTD-850M-SPRTX(M1), 100 Ù Class “A” DIN with 4 to 20 mA transmitter, £43 + 50 = £93. RTD Sensor with Miniature Housing–Stud-Mount Construction For Use in Limited Spaces  Stainless Steel Housing with M4 Thread Can be Installed in Tight Places  High-Accuracy, 100 Ù, Class “A” DIN Platinum Element Standard  3-Wire Construction for Connecting to Most Instruments To Order (Specify Model Number) Model Number Sensing Element Cable Max Temperature Price RTD-850M-TA3F 100 Ù Class “A” DIN 1 m Long PFA Insulated 230°C £54.50 RTD-850M-SPRTXM1 100 Ù Class “A” DIN 1 m Long PFA Insulated 230°C 93.00 RTD-850M 100 Ù Class “A” DIN 1 m Long PFA Insulated 230°C 43.00 HH505, Handheld Thermometer, £50. See omega.co.uk Popular Options Include: M4 mounting thread. 4 mm RTD-850M, £43, shown smaller than actual size. 6 mm across flats Comes standard with MTP connector. Other connectors available, see page 87. 7/0.16 mm stranded nickel-plated copper, PFA insulated, PFA jacketed cable. Starts at £43 MOST POPULAR MODEL HIGHLIGHTED! Perfect for tight spaces where temperature control is needed. SPRTX, 4 to 20 mA Transmitter, £50. See omega.co.uk ACCURACY IEC CLASSA (±0.15ºC @ 0ºC)
