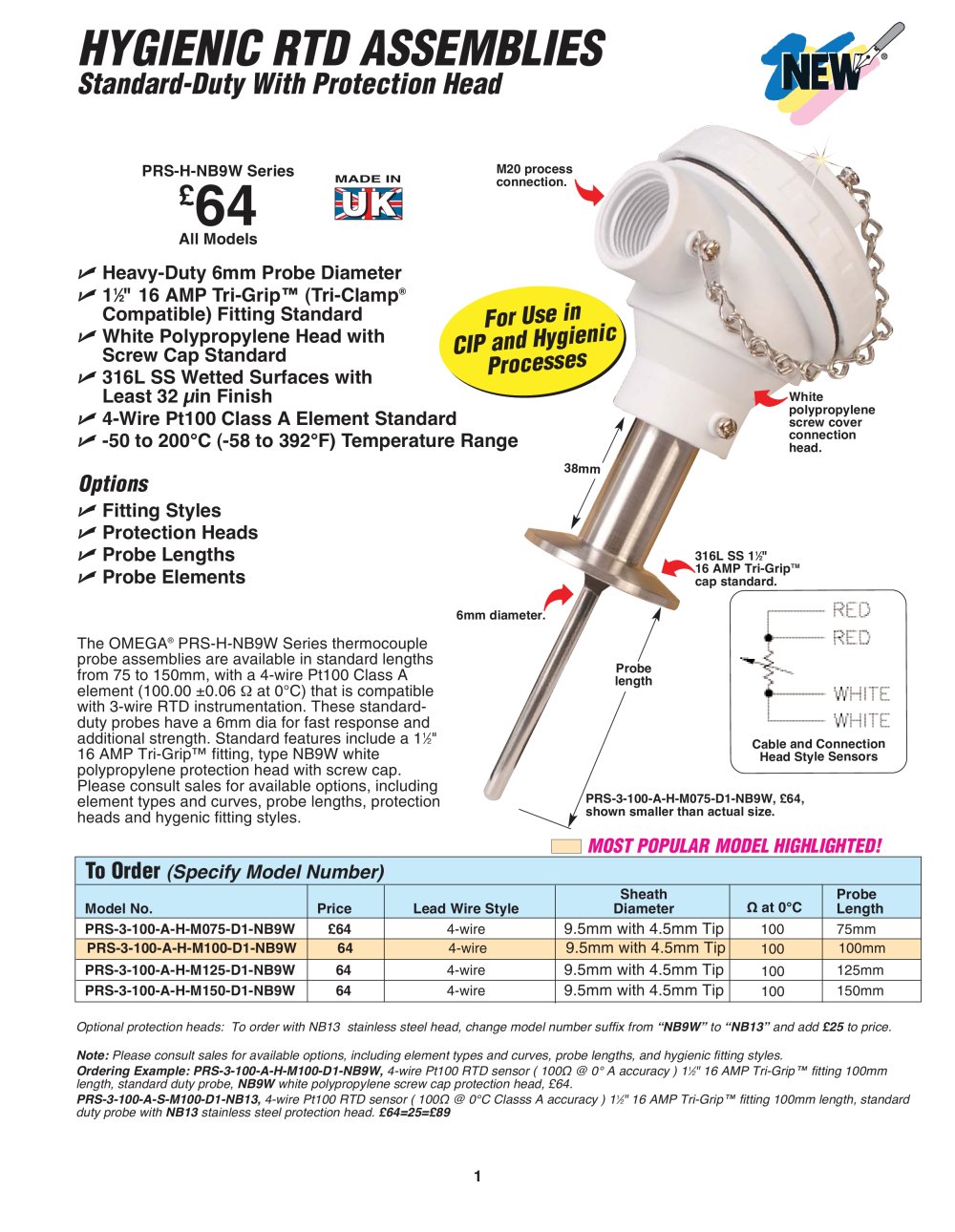

1 Optional protection heads: To order with NB13 stainless steel head, change model number suffix from “NB9W” to “NB13” and add £25 to price. Note: Please consult sales for available options, including element types and curves, probe lengths, and hygienic fitting styles. Ordering Example: PRS-3-100-A-H-M100-D1-NB9W, 4-wire Pt100 RTD sensor ( 100Ù @ 0° A accuracy ) 112" 16 AMP Tri-Grip™ fitting 100mm length, standard duty probe, NB9W white polypropylene screw cap protection head, £64. PRS-3-100-A-S-M100-D1-NB13, 4-wire Pt100 RTD sensor ( 100Ù @ 0°C Classs A accuracy ) 112" 16 AMP Tri-Grip™ fitting 100mm length, standard duty probe with NB13 stainless steel protection head. £64=25=£89 HYGIENIC RTD ASSEMBLIES Standard-Duty With Protection Head PRS-H-NB9W Series £64 All Models  Heavy-Duty 6mm Probe Diameter  112" 16 AMP Tri-Grip™ (Tri-Clamp® Compatible) Fitting Standard  White Polypropylene Head with Screw Cap Standard  316L SS Wetted Surfaces with at Least 32 ìin Finish  4-Wire Pt100 Class A Element Standard  -50 to 200°C (-58 to 392°F) Temperature Range Options  Fitting Styles  Protection Heads  Probe Lengths  Probe Elements PRS-3-100-A-H-M075-D1-NB9W, £64, shown smaller than actual size. For Use in CIP and Hygienic Processes 316L SS 112" 16 AMP Tri-GripTM cap standard. 6mm diameter. Probe length 38mm The OMEGA® PRS-H-NB9W Series thermocouple probe assemblies are available in standard lengths from 75 to 150mm, with a 4-wire Pt100 Class A element (100.00 ±0.06 .. at 0°C) that is compatible with 3-wire RTD instrumentation. These standardduty probes have a 6mm dia for fast response and additional strength. Standard features include a 112" 16 AMP Tri-Grip™ fitting, type NB9W white polypropylene protection head with screw cap. Please consult sales for available options, including element types and curves, probe lengths, protection heads and hygenic fitting styles. M20 process connection. White polypropylene screw cover connection head. Cable and Connection Head Style Sensors To Order (Specify Model Number) Sheath Probe Model No. Price Lead Wire Style Diameter Length PRS-3-100-A-H-M075-D1-NB9W £64 4-wire 9.5mm with 4.5mm Tip 75mm PRS-3-100-A-H-M125-D1-NB9W 64 4-wire 9.5mm with 4.5mm Tip 125mm PRS-3-100-A-H-M150-D1-NB9W 64 4-wire 9.5mm with 4.5mm Tip 150mm MOST POPULAR MODEL HIGHLIGHTED! UK UK Ù at 0°C 100 100 100 PRS-3-100-A-H-M100-D1-NB9W 64 4-wire 9.5mm with 4.5mm Tip 100 100mm
