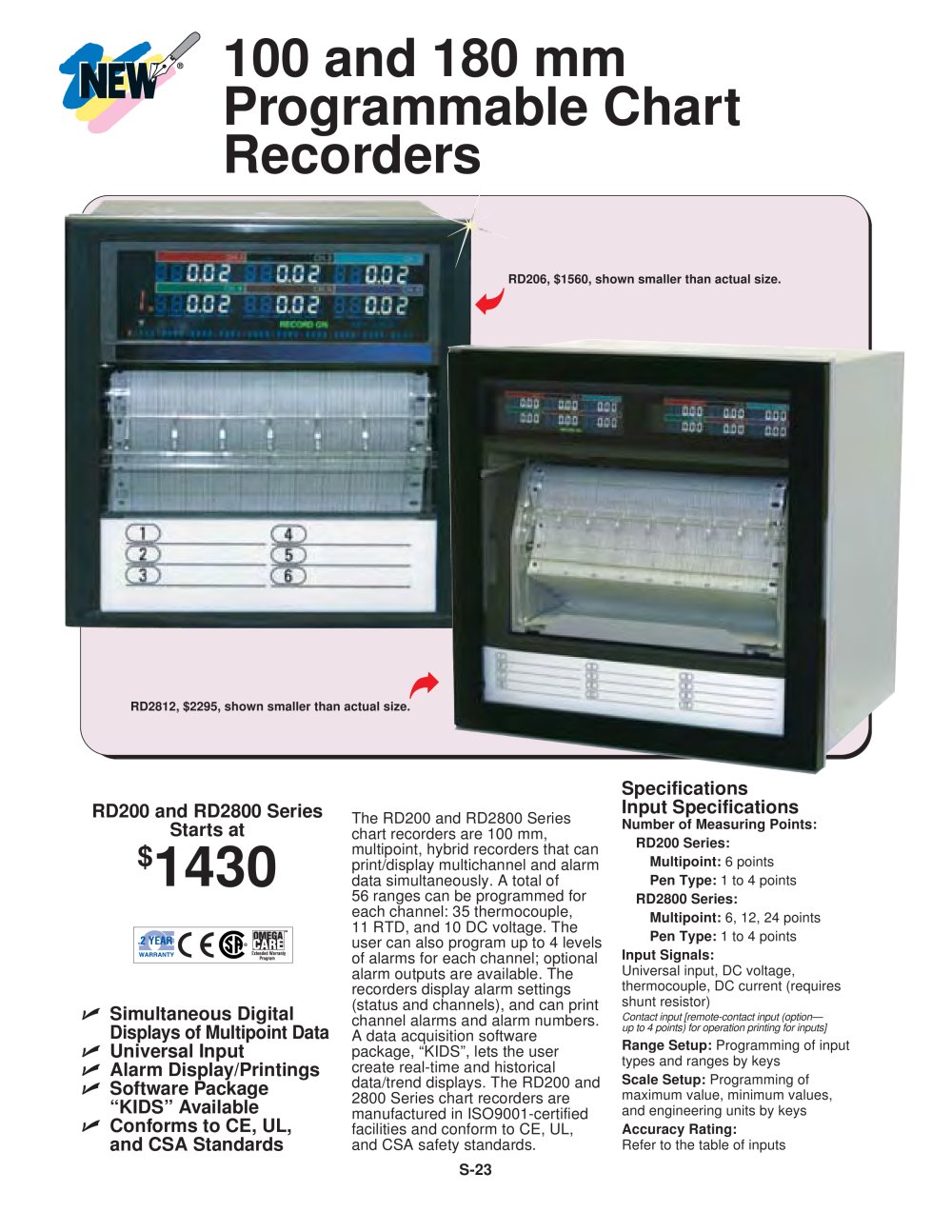

100 and 180 mm
Programmable Chart
Recorders
RD200 and RD2800 Series
Starts at
$1430
Simultaneous Digital
Displays of Multipoint Data
Universal Input
Alarm Display/Printings
Software Package
“KIDS” Available
Conforms to CE, UL,
and CSA Standards
The RD200 and RD2800 Series
chart recorders are 100 mm,
multipoint, hybrid recorders that can
print/display multichannel and alarm
data simultaneously. A total of
56 ranges can be programmed for
each channel: 35 thermocouple,
11 RTD, and 10 DC voltage. The
user can also program up to 4 levels
of alarms for each channel; optional
alarm outputs are available. The
recorders display alarm settings
(status and channels), and can print
channel alarms and alarm numbers.
A data acquisition software
package, “KIDS”, lets the user
create real-time and historical
data/trend displays. The RD200 and
2800 Series chart recorders are
manufactured in ISO9001-certified
facilities and conform to CE, UL,
and CSA safety standards.
Specifications
Input Specifications
Number of Measuring Points:
RD200 Series:
Multipoint: 6 points
Pen Type: 1 to 4 points
RD2800 Series:
Multipoint: 6, 12, 24 points
Pen Type: 1 to 4 points
Input Signals:
Universal input, DC voltage,
thermocouple, DC current (requires
shunt resistor)
Contact input [remote-contact input (option—
up to 4 points) for operation printing for inputs]
Range Setup: Programming of input
types and ranges by keys
Scale Setup: Programming of
maximum value, minimum values,
and engineering units by keys
Accuracy Rating:
Refer to the table of inputs
RD206, $1560, shown smaller than actual size.
RD2812, $2295, shown smaller than actual size.
S-23
