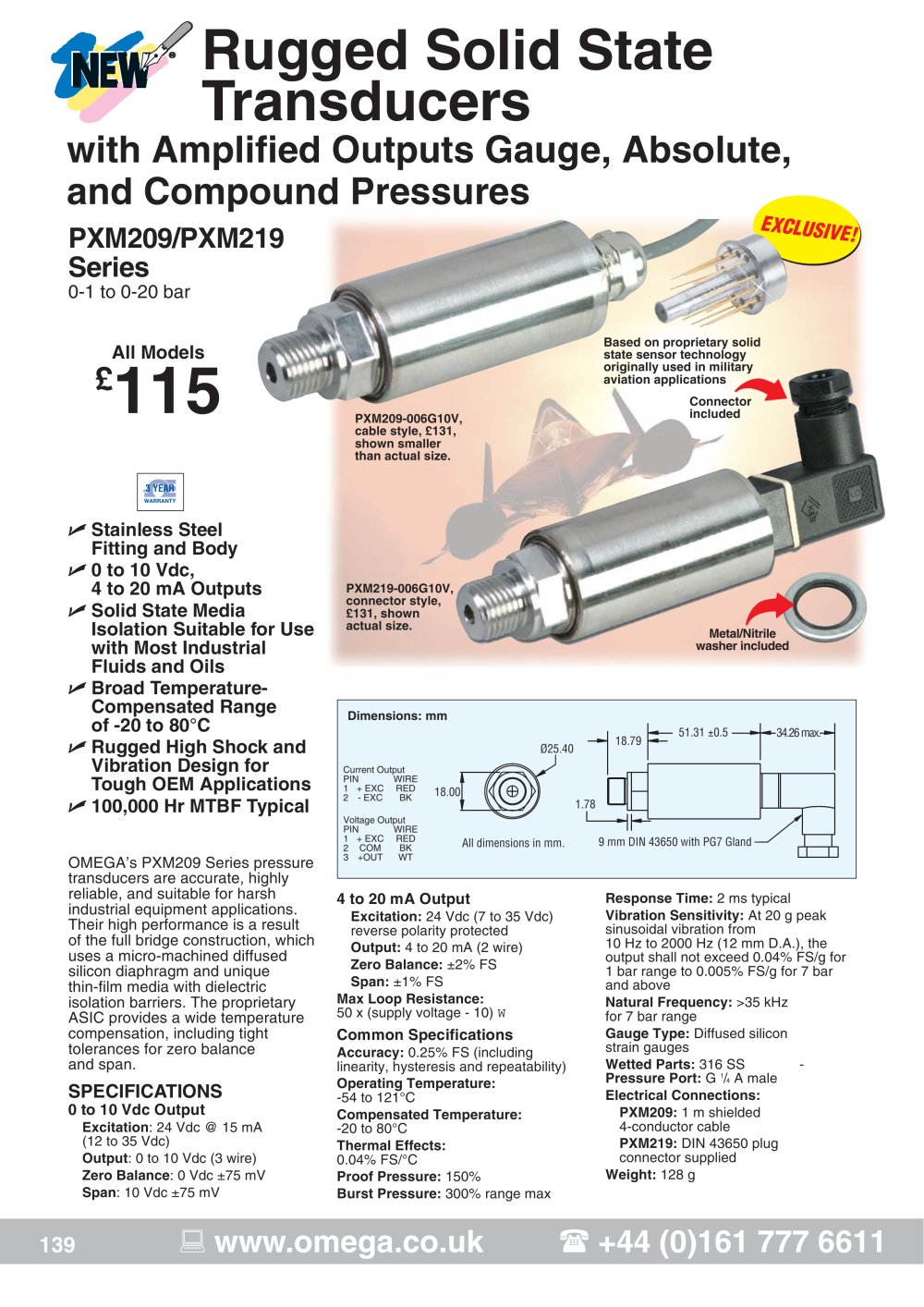

139 www.omega.co.uk +44 (0)161 777 6611 Response Time: 2 ms typical Vibration Sensitivity: At 20 g peak sinusoidal vibration from 10 Hz to 2000 Hz (12 mm D.A.), the output shall not exceed 0.04% FS/g for 1 bar range to 0.005% FS/g for 7 bar and above Natural Frequency: >35 kHz for 7 bar range Gauge Type: Diffused silicon strain gauges Wetted Parts: 316 SS - Pressure Port: G 1/4 A male Electrical Connections: PXM209: 1 m shielded 4-conductor cable PXM219: DIN 43650 plug connector supplied Weight: 128 g Ø25.40 18.00 1.78 18.79 51.31 ±0.5 34.26 max. All dimensions in mm. 9 mm DIN 43650 with PG7 Gland Voltage Output PIN WIRE 1 + EXC RED 2 COM BK 3 +OUT WT Current Output PIN WIRE 1 + EXC RED 2 - EXC BK Dimensions: mm OMEGA’s PXM209 Series pressure transducers are accurate, highly reliable, and suitable for harsh industrial equipment applications. Their high performance is a result of the full bridge construction, which uses a micro-machined diffused silicon diaphragm and unique thin-film media with dielectric isolation barriers. The proprietary ASIC provides a wide temperature compensation, including tight tolerances for zero balance and span. SPECIFICATIONS 0 to 10 Vdc Output Excitation: 24 Vdc @ 15 mA (12 to 35 Vdc) Output: 0 to 10 Vdc (3 wire) Zero Balance: 0 Vdc ±75 mV Span: 10 Vdc ±75 mV 4 to 20 mA Output Excitation: 24 Vdc (7 to 35 Vdc) reverse polarity protected Output: 4 to 20 mA (2 wire) Zero Balance: ±2% FS Span: ±1% FS Max Loop Resistance: 50 x (supply voltage - 10) W Common Specifications Accuracy: 0.25% FS (including linearity, hysteresis and repeatability) Operating Temperature: -54 to 121°C Compensated Temperature: -20 to 80°C Thermal Effects: 0.04% FS/°C Proof Pressure: 150% Burst Pressure: 300% range max Based on proprietary solid state sensor technology originally used in military aviation applications PXM219-006G10V, connector style, £131, shown actual size. PXM209-006G10V, cable style, £131, shown smaller than actual size. Connector included All Models £115 Rugged Solid State Transducers with Amplified Outputs Gauge, Absolute, and Compound Pressures PXM209/PXM219 Series 0-1 to 0-20 bar EXCLUSIVE! Metal/Nitrile washer included  Stainless Steel Fitting and Body  0 to 10 Vdc, 4 to 20 mA Outputs  Solid State Media Isolation Suitable for Use with Most Industrial Fluids and Oils  Broad Temperature- Compensated Range of -20 to 80°C  Rugged High Shock and Vibration Design for Tough OEM Applications  100,000 Hr MTBF Typical
