Portable Paperless Recorders and Data Acquisition Stations RD-MV1000 and RD-MV2000 Series - OMEGA - #1

Text version of the page

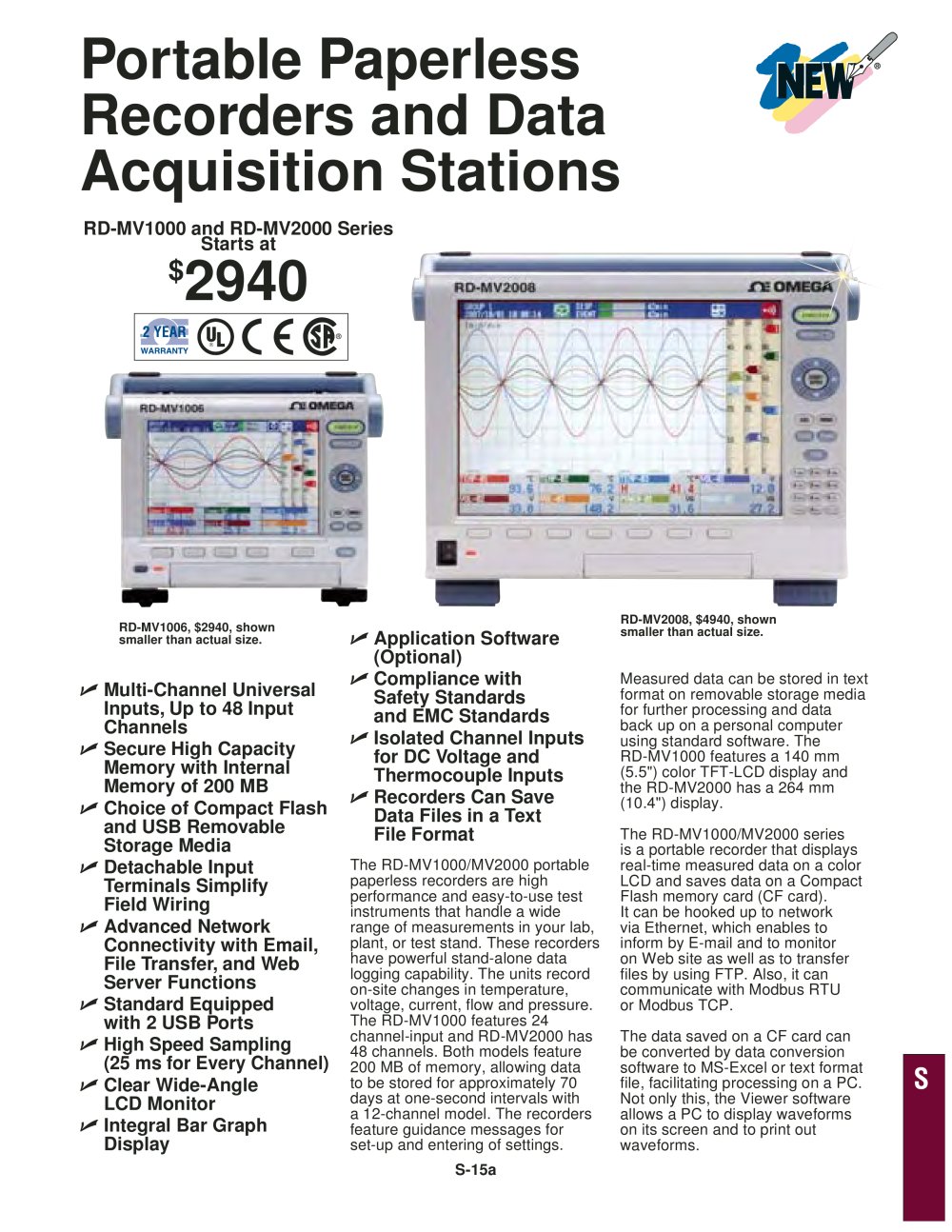

S-15a S Portable Paperless Recorders and Data Acquisition Stations RD-MV1000 and RD-MV2000 Series Starts at $2940  Multi-Channel Universal Inputs, Up to 48 Input Channels  Secure High Capacity Memory with Internal Memory of 200 MB  Choice of Compact Flash and USB Removable Storage Media  Detachable Input Terminals Simplify Field Wiring  Advanced Network Connectivity with Email, File Transfer, and Web Server Functions  Standard Equipped with 2 USB Ports  High Speed Sampling (25 ms for Every Channel)  Clear Wide-Angle LCD Monitor  Integral Bar Graph Display  Application Software (Optional)  Compliance with Safety Standards and EMC Standards  Isolated Channel Inputs for DC Voltage and Thermocouple Inputs  Recorders Can Save Data Files in a Text File Format The RD-MV1000/MV2000 portable paperless recorders are high performance and easy-to-use test instruments that handle a wide range of measurements in your lab, plant, or test stand. These recorders have powerful stand-alone data logging capability. The units record on-site changes in temperature, voltage, current, flow and pressure. The RD-MV1000 features 24 channel-input and RD-MV2000 has 48 channels. Both models feature 200 MB of memory, allowing data to be stored for approximately 70 days at one-second intervals with a 12-channel model. The recorders feature guidance messages for set-up and entering of settings. Measured data can be stored in text format on removable storage media for further processing and data back up on a personal computer using standard software. The RD-MV1000 features a 140 mm (5.5") color TFT-LCD display and the RD-MV2000 has a 264 mm (10.4") display. The RD-MV1000/MV2000 series is a portable recorder that displays real-time measured data on a color LCD and saves data on a Compact Flash memory card (CF card). It can be hooked up to network via Ethernet, which enables to inform by E-mail and to monitor on Web site as well as to transfer files by using FTP. Also, it can communicate with Modbus RTU or Modbus TCP. The data saved on a CF card can be converted by data conversion software to MS-Excel or text format file, facilitating processing on a PC. Not only this, the Viewer software allows a PC to display waveforms on its screen and to print out waveforms. RD-MV2008, $4940, shown RD-MV1006, $2940, shown smaller than actual size. smaller than actual size.
