Portable Handheld Data Logger with USB or RS232 Interface
1 /3Pages

Catalog excerpts

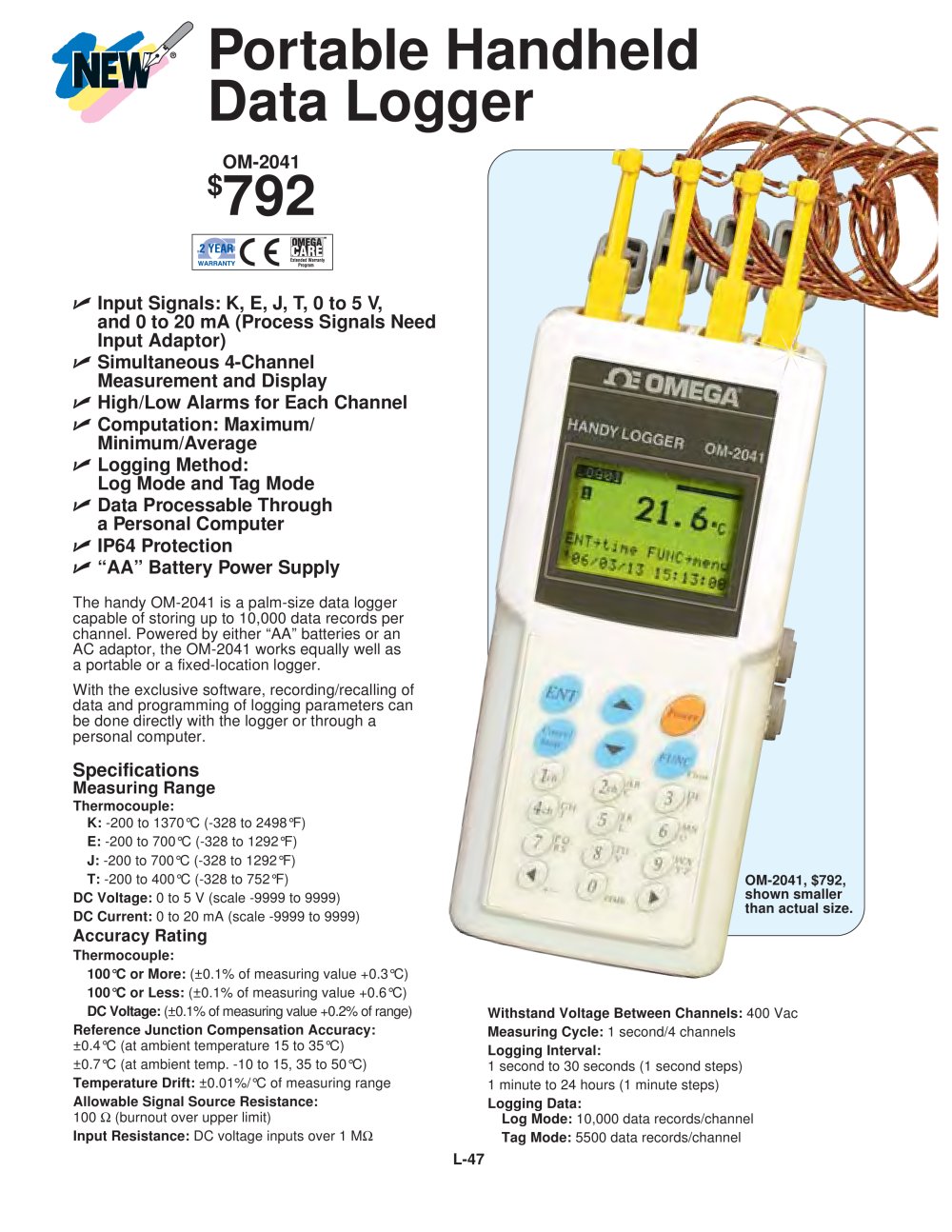

L-47 Input Signals: K, E, J, T, 0 to 5 V, and 0 to 20 mA (Process Signals Need Input Adaptor) Simultaneous 4-Channel Measurement and Display High/Low Alarms for Each Channel Computation: Maximum/ Minimum/Average Logging Method: Log Mode and Tag Mode Data Processable Through a Personal Computer IP64 Protection “AA” Battery Power Supply OM-2041 $792 The handy OM-2041 is a palm-size data logger capable of storing up to 10,000 data records per channel. Powered by either “AA” batteries or an AC adaptor, the OM-2041 works equally well as a portable or a fixed-location logger. With the exclusive software, recording/recalling of data and programming of logging parameters can be done directly with the logger or through a personal computer. Specifications Measuring Range Thermocouple: K: -200 to 1370°C (-328 to 2498°F) E: -200 to 700°C (-328 to 1292°F) J: -200 to 700°C (-328 to 1292°F) T: -200 to 400°C (-328 to 752°F) DC Voltage: 0 to 5 V (scale -9999 to 9999) DC Current: 0 to 20 mA (scale -9999 to 9999) Accuracy Rating Thermocouple: 100°C or More: (±0.1% of measuring value +0.3°C) 100°C or Less: (±0.1% of measuring value +0.6°C) DC Voltage: (±0.1% of measuring value +0.2% of range) Reference Junction Compensation Accuracy: ±0.4°C (at ambient temperature 15 to 35°C) ±0.7°C (at ambient temp. -10 to 15, 35 to 50°C) Temperature Drift: ±0.01%/°C of measuring range Allowable Signal Source Resistance: 100 Ù (burnout over upper limit) Input Resistance: DC voltage inputs over 1 MÙ Withstand Voltage Between Channels: 400 Vac Measuring Cycle: 1 second/4 channels Logging Interval: 1 second to 30 seconds (1 second steps) 1 minute to 24 hours (1 minute steps) Logging Data: Log Mode: 10,000 data records/channel Tag Mode: 5500 data records/channel Portable Handheld Data Logger OM-2041, $792, shown smaller than actual size.

Open the catalog to page 1

Portable Handheld Data Logger with USB or RS232 Interface-2

L Backup Battery Life: 5 years or longer (at 25°C) External Dimensions: 159 H x 70 W x 33 mm D (6.2 x 2.7 x 1.3") excluding protrusions Weight: Approx 300 g (10.5 oz) including batteries Casing Material: Nylon ABS (antibacterial) Ambient Temperature: -10 to 50°C (14 to 122°F) Ambient Humidity: 10 to 80% RH (no condensation) CE Approval: EN-61326, Class B (battery operation) Protection: IP64 (when operated with waterproof connector) Accessories: 4 “AA” batteries, wall-mount holder L-48 Display: LCD with backlight Dot-matrix 128 x 64 dot (view area 41 x 29 mm) Operation Key: 18-key including numeric...
