Pipe Plug Thermistor 44PP Series

Pipe Plug Thermistor 44PP Series
1Pages

Catalog excerpts

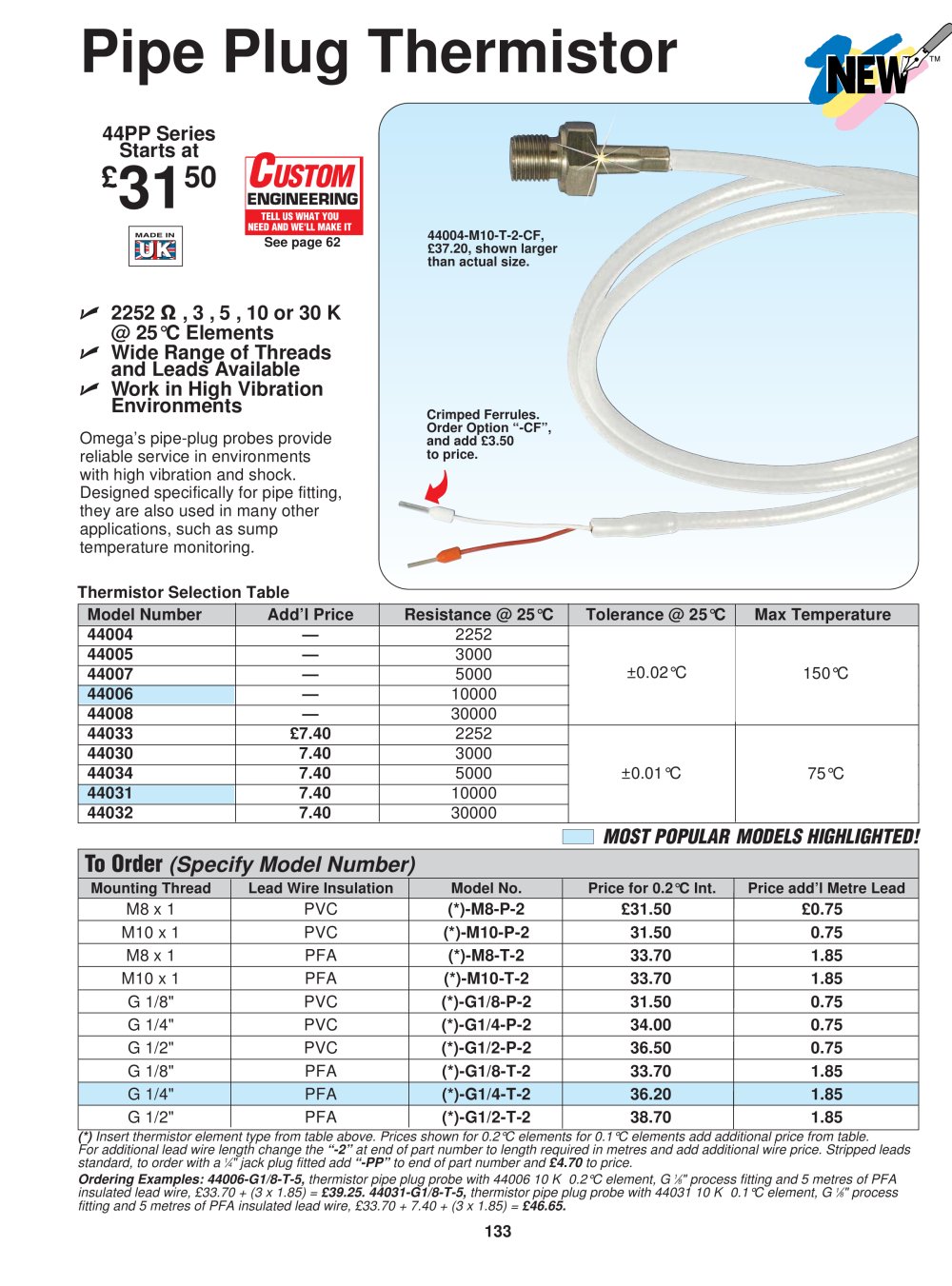

133 Omega’s pipe-plug probes provide reliable service in environments with high vibration and shock. Designed specifically for pipe fitting, they are also used in many other applications, such as sump temperature monitoring. Pipe Plug Thermistor 44PP Series Starts at £3150 2252 Ù , 3 , 5 , 10 or 30 K @ 25°C Elements Wide Range of Threads and Leads Available Work in High Vibration Environments Crimped Ferrules. Order Option “-CF”, and add £3.50 to price. 44004-M10-T-2-CF, £37.20, shown larger than actual size. UK UK Model Number Add’l Price Resistance @ 25°C Tolerance @ 25°C Max Temperature 44004 — 2252 ±0.02°C 150°C 44005 — 3000 44007 — 5000 44006 — 10000 44008 — 30000 44033 £7.40 2252 44030 7.40 3000 44034 7.40 5000 0.01°C 44031 7.40 10000 44032 7.40 30000 Thermistor Selection Table 150°C ±75°C ±0.02°C To Order (Specify Model Number) Mounting Thread Lead Wire Insulation Model No. Price for 0.2°C Int. Price add’l Metre Lead M8 x 1 PVC (*)-M8-P-2 £31.50 £0.75 M10 x 1 PVC (*)-M10-P-2 31.50 0.75 M8 x 1 PFA (*)-M8-T-2 33.70 1.85 M10 x 1 PFA (*)-M10-T-2 33.70 1.85 G 1/8" PVC (*)-G1/8-P-2 31.50 0.75 G 1/4" PVC (*)-G1/4-P-2 34.00 0.75 G 1/2" PVC (*)-G1/2-P-2 36.50 0.75 G 1/8" PFA (*)-G1/8-T-2 33.70 1.85 G 1/4" PFA (*)-G1/4-T-2 36.20 1.85 G 1/2" PFA (*)-G1/2-T-2 38.70 1.85 MOST POPULAR MODELS HIGHLIGHTED! (*) Insert thermistor element type from table above. Prices shown for 0.2°C elements for 0.1°C elements add additional price from table. For additional lead wire length change the “-2” at end of part number to length required in metres and add additional wire price. Stripped leads standard, to order with a 14" jack plug fitted add “-PP” to end of part number and £4.70 to price. Ordering Examples: 44006-G1/8-T-5, thermistor pipe plug probe with 44006 10 K 0.2°C element, G 18" process fitting and 5 metres of PFA insulated lead wire, £33.70 + (3 x 1.85) = £39.25. 44031-G1/8-T-5, thermistor pipe plug probe with 44031 10 K 0.1°C element, G 18" process fitting and 5 metres of PFA insulated lead wire, £33.70 + 7.40 + (3 x 1.85) = £46.65. See page 62
