Oven Temperature Data Logger OM-CP-THERMOVAULT

Oven Temperature Data Logger OM-CP-THERMOVAULT
2Pages

Catalog excerpts

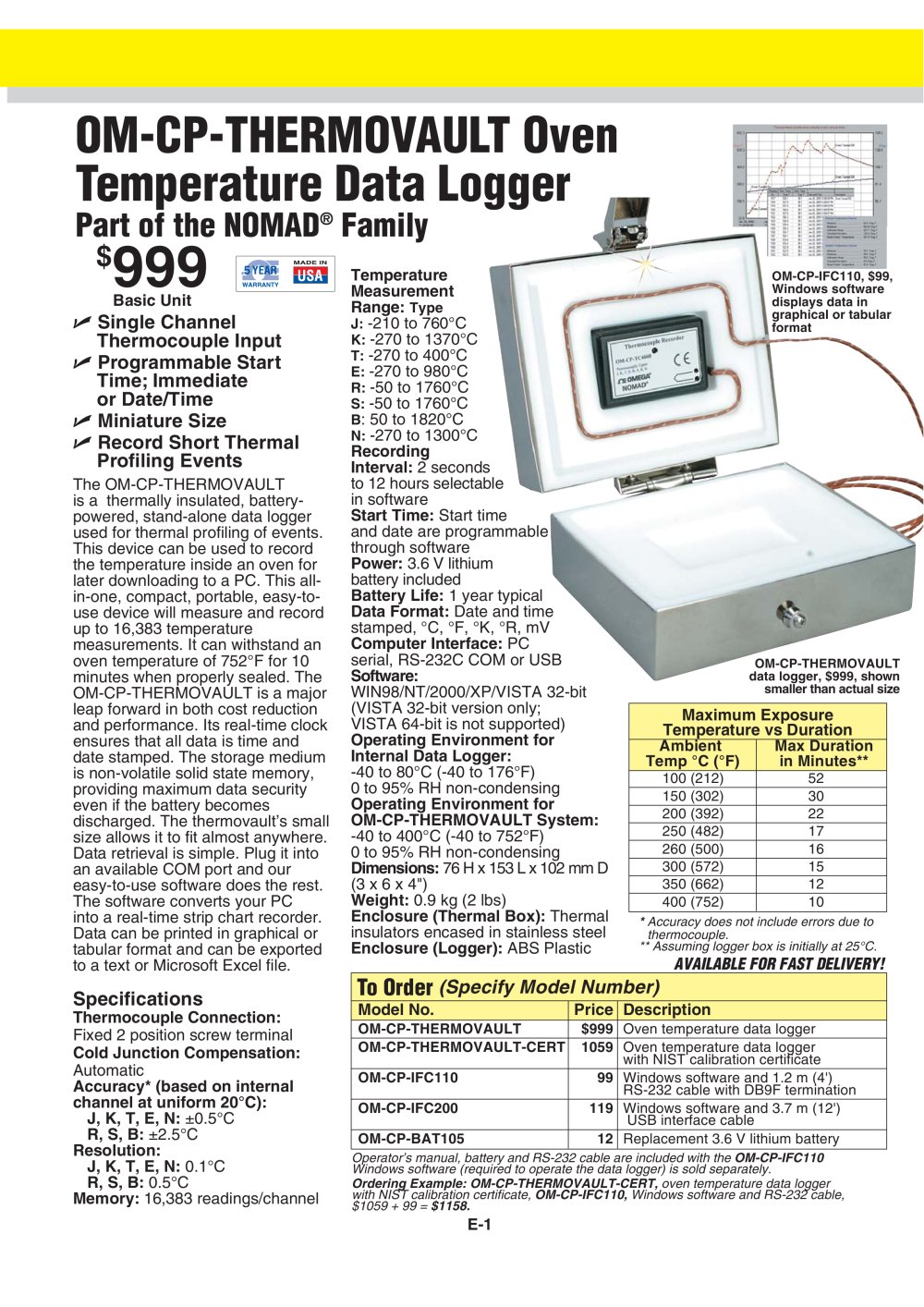

Oven Temperature Data Logger OM-CP-THERMOVAULT - 1

E-1 To Order (Specify Model Number) Model No. Price Description OM-CP-THERMOVAULT $999 Oven temperature data logger OM-CP-THERMOVAULT-CERT 1059 Oven temperature data logger with NIST calibration certificate OM-CP-IFC110 99 Windows software and 1.2 m (4') RS-232 cable with DB9F termination OM-CP-IFC200 119 Windows software and 3.7 m (12') USB interface cable OM-CP-BAT105 12 Replacement 3.6 V lithium battery Operator’s manual, battery and RS-232 cable are included with the OM-CP-IFC110 Windows software (required to operate the data logger) is sold separately. Ordering Example: OM-CP-THERMOVAULT-CERT, oven temperature data logger with NIST calibration certificate, OM-CP-IFC110, Windows software and RS-232 cable, $1059 + 99 = $1158. $999 Basic Unit OM-CP-THERMOVAULT Oven Temperature Data Logger Part of the NOMAD® Family Single Channel Thermocouple Input Programmable Start Time; Immediate or Date/Time Miniature Size Record Short Thermal Profiling Events The OM-CP-THERMOVAULT is a thermally insulated, batterypowered, stand-alone data logger used for thermal profiling of events. This device can be used to record the temperature inside an oven for later downloading to a PC. This allin- one, compact, portable, easy-touse device will measure and record up to 16,383 temperature measurements. It can withstand an oven temperature of 752°F for 10 minutes when properly sealed. The OM-CP-THERMOVAULT is a major leap forward in both cost reduction and performance. Its real-time clock ensures that all data is time and date stamped. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The thermovault’s small size allows it to fit almost anywhere. Data retrieval is simple. Plug it into an available COM port and our easy-to-use software does the rest. The software converts your PC into a real-time strip chart recorder. Data can be printed in graphical or tabular format and can be exported to a text or Microsoft Excel file. Specifications Thermocouple Connection: Fixed 2 position screw terminal Cold Junction Compensation: Automatic Accuracy* (based on internal channel at uniform 20°C): J, K, T, E, N: ±0.5°C R, S, B: ±2.5°C Resolution: J, K, T, E, N: 0.1°C R, S, B: 0.5°C Memory: 16,383 readings/channel OM-CP-THERMOVAULT data logger, $999, shown smaller than actual size * Accuracy does not include errors due to thermocouple. ** Assuming logger box is initially at 25°C. Maximum Exposure Temperature vs Duration Ambient Max Duration Temp °C (°F) in Minutes** 100 (212) 52 150 (302) 30 200 (392) 22 250 (482) 17 260 (500) 16 300 (572) 15 350 (662) 12 400 (752) 10 AVAILABLE FOR FAST DELIVERY! OM-CP-IFC110, $99, Windows software displays data in graphical or tabular format Temperature Measurement Range: Type J: -210 to 760°C K: -270 to 1370°C T: -270 to 400°C E: -270 to 980°C R: -50 to 1760°C S: -50 to 1760°C B: 50 to 1820°C N: -270 to 1300°C Recording Interval: 2 seconds to 12 hours selectable in software Start Time: Start time and date are programmable through software Power: 3.6 V lithium battery included Battery Life: 1 year typical Data Format: Date and time stamped, °C, °F, °K, °R, mV Computer Interface: PC serial, RS-232C COM or USB Software: WIN98/NT/2000/XP/VISTA 32-bit (VISTA 32-bit version only; VISTA 64-bit is not supported) Operating Environment for Internal Data Logger: -40 to 80°C (-40 to 176°F) 0 to 95% RH non-condensing Operating Environment for OM-CP-THERMOVAULT System: -40 to 400°C (-40 to 752°F) 0 to 95% RH non-condensing Dimensions: 76 H x 153 L x 102 mm D (3 x 6 x 4") Weight: 0.9 kg (2 lbs) Enclosure (Thermal Box): Thermal insulators encased in stainless steel Enclosure (Logger): ABS Plastic

Open the catalog to page 1

Oven Temperature Data Logger OM-CP-THERMOVAULT - 2

Freephone 0800 488 488 | International +44(0) 161 777 6622 | Fax +44(0) 161 777 6622 | Sales@omega.co.uk www.omega.co.uk More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr 088-466-342 BENELUX www.omega.nl 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and Measurement...
