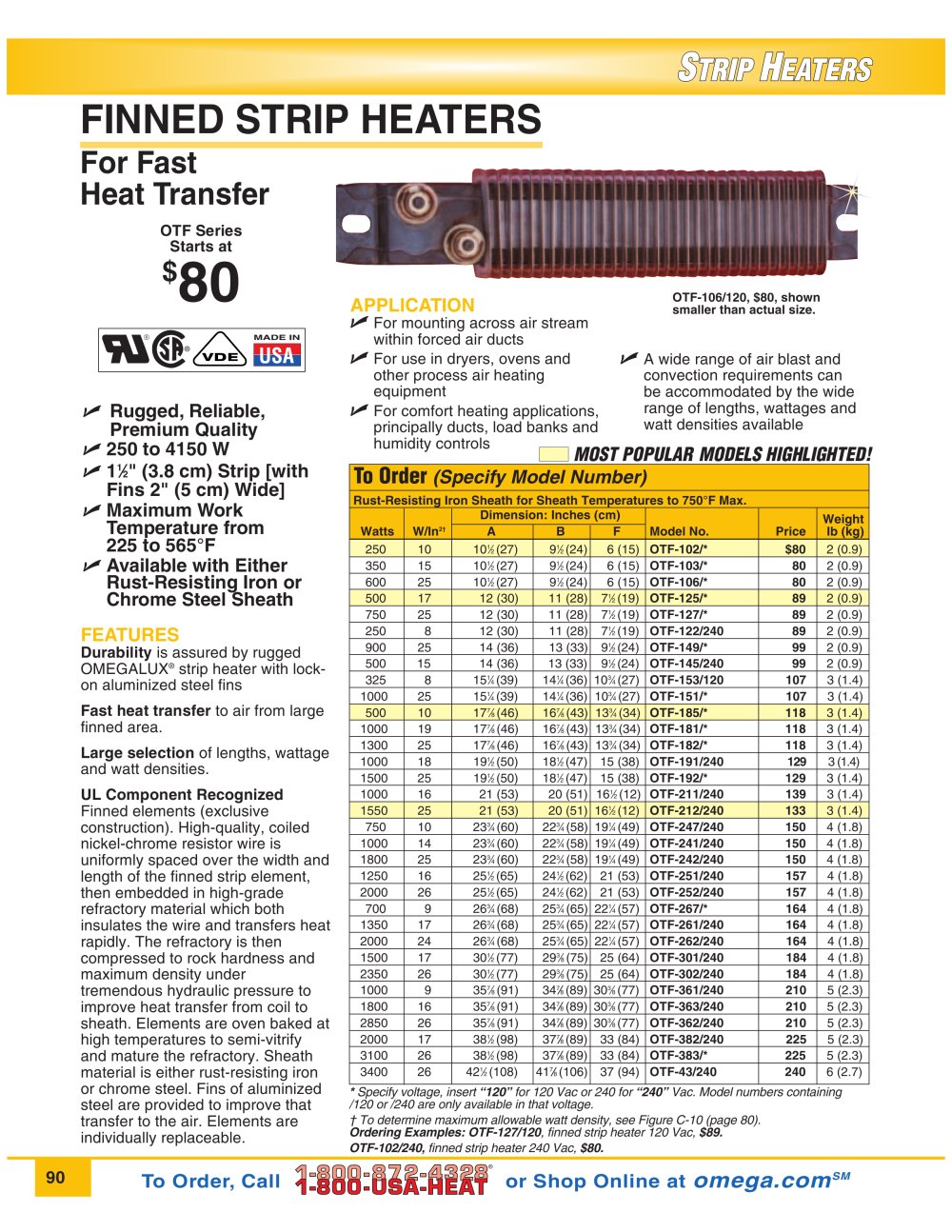

90 To Order, Call or Shop Online at omega.comSM ® FINNED STRIP HEATERS For Fast Heat Transfer FEATURES Durability is assured by rugged OMEGALUX® strip heater with lockon aluminized steel fins Fast heat transfer to air from large finned area. Large selection of lengths, wattage and watt densities. UL Component Recognized Finned elements (exclusive construction). High-quality, coiled nickel-chrome resistor wire is uniformly spaced over the width and length of the finned strip element, then embedded in high-grade refractory material which both insulates the wire and transfers heat rapidly. The refractory is then compressed to rock hardness and maximum density under tremendous hydraulic pressure to improve heat transfer from coil to sheath. Elements are oven baked at high temperatures to semi-vitrify and mature the refractory. Sheath material is either rust-resisting iron or chrome steel. Fins of aluminized steel are provided to improve that transfer to the air. Elements are individually replaceable. Rust-Resisting Iron Sheath for Sheath Temperatures to 750°F Max. Dimension: Inches (cm) Weight Watts W/In2† A B F Model No. Price Ib (kg) 250 10 1012 (27) 912 (24) 6 (15) OTF-102/* $80 2 (0.9) 350 15 1012 (27) 912 (24) 6 (15) OTF-103/* 80 2 (0.9) 600 25 1012 (27) 912 (24) 6 (15) OTF-106/* 80 2 (0.9) 500 17 12 (30) 11 (28) 712 (19) OTF-125/* 89 2 (0.9) 750 25 12 (30) 11 (28) 712 (19) OTF-127/* 89 2 (0.9) 250 8 12 (30) 11 (28) 712 (19) OTF-122/240 89 2 (0.9) 900 25 14 (36) 13 (33) 912 (24) OTF-149/* 99 2 (0.9) 500 15 14 (36) 13 (33) 912 (24) OTF-145/240 99 2 (0.9) 325 8 1514 (39) 1414 (36) 1034 (27) OTF-153/120 107 3 (1.4) 1000 25 1514 (39) 1414 (36) 1034 (27) OTF-151/* 107 3 (1.4) 500 10 1778 (46) 1678 (43) 1334 (34) OTF-185/* 118 3 (1.4) 1000 19 1778 (46) 1678 (43) 1334 (34) OTF-181/* 118 3 (1.4) 1300 25 1778 (46) 1678 (43) 1334 (34) OTF-182/* 118 3 (1.4) 1000 18 1912 (50) 1812 (47) 15 (38) OTF-191/240 129 3 (1.4) 1500 25 1912 (50) 1812 (47) 15 (38) OTF-192/* 129 3 (1.4) 1000 16 21 (53) 20 (51) 1612 (12) OTF-211/240 139 3 (1.4) 1550 25 21 (53) 20 (51) 1612 (12) OTF-212/240 133 3 (1.4) 750 10 2334 (60) 2234 (58) 1914 (49) OTF-247/240 150 4 (1.8) 1000 14 2334 (60) 2234 (58) 1914 (49) OTF-241/240 150 4 (1.8) 1800 25 2334 (60) 2234 (58) 1914 (49) OTF-242/240 150 4 (1.8) 1250 16 2512 (65) 2412 (62) 21 (53) OTF-251/240 157 4 (1.8) 2000 26 2512 (65) 2412 (62) 21 (53) OTF-252/240 157 4 (1.8) 700 9 2634 (68) 2534 (65) 2214 (57) OTF-267/* 164 4 (1.8) 1350 17 2634 (68) 2534 (65) 2214 (57) OTF-261/240 164 4 (1.8) 2000 24 2634 (68) 2534 (65) 2214 (57) OTF-262/240 164 4 (1.8) 1500 17 3012 (77) 2938 (75) 25 (64) OTF-301/240 184 4 (1.8) 2350 26 3012 (77) 2938 (75) 25 (64) OTF-302/240 184 4 (1.8) 1000 9 3578 (91) 3478 (89) 3038 (77) OTF-361/240 210 5 (2.3) 1800 16 3578 (91) 3478 (89) 3038 (77) OTF-363/240 210 5 (2.3) 2850 26 3578 (91) 3478 (89) 3038 (77) OTF-362/240 210 5 (2.3) 2000 17 3812 (98) 3778 (89) 33 (84) OTF-382/240 225 5 (2.3) 3100 26 3812 (98) 3778 (89) 33 (84) OTF-383/* 225 5 (2.3) 3400 26 4212 (108) 4178 (106) 37 (94) OTF-43/240 240 6 (2.7) To Order (Specify Model Number) * Specify voltage, insert “120” for 120 Vac or 240 for “240” Vac. Model numbers containing /120 or /240 are only available in that voltage. † To determine maximum allowable watt density, see Figure C-10 (page 80). Ordering Examples: OTF-127/120, finned strip heater 120 Vac, $89. OTF-102/240, finned strip heater 240 Vac, $80.  Rugged, Reliable, Premium Quality  250 to 4150 W  112" (3.8 cm) Strip [with Fins 2" (5 cm) Wide]  Maximum Work Temperature from 225 to 565°F  Available with Either Rust-Resisting Iron or Chrome Steel Sheath APPLICATION  For mounting across air stream within forced air ducts  For use in dryers, ovens and other process air heating equipment  For comfort heating applications, principally ducts, load banks and humidity controls  A wide range of air blast and convection requirements can be accommodated by the wide range of lengths, wattages and watt densities available OTF Series Starts at $80 MOST POPULAR MODELS HIGHLIGHTED! OTF-106/120, $80, shown smaller than actual size.
