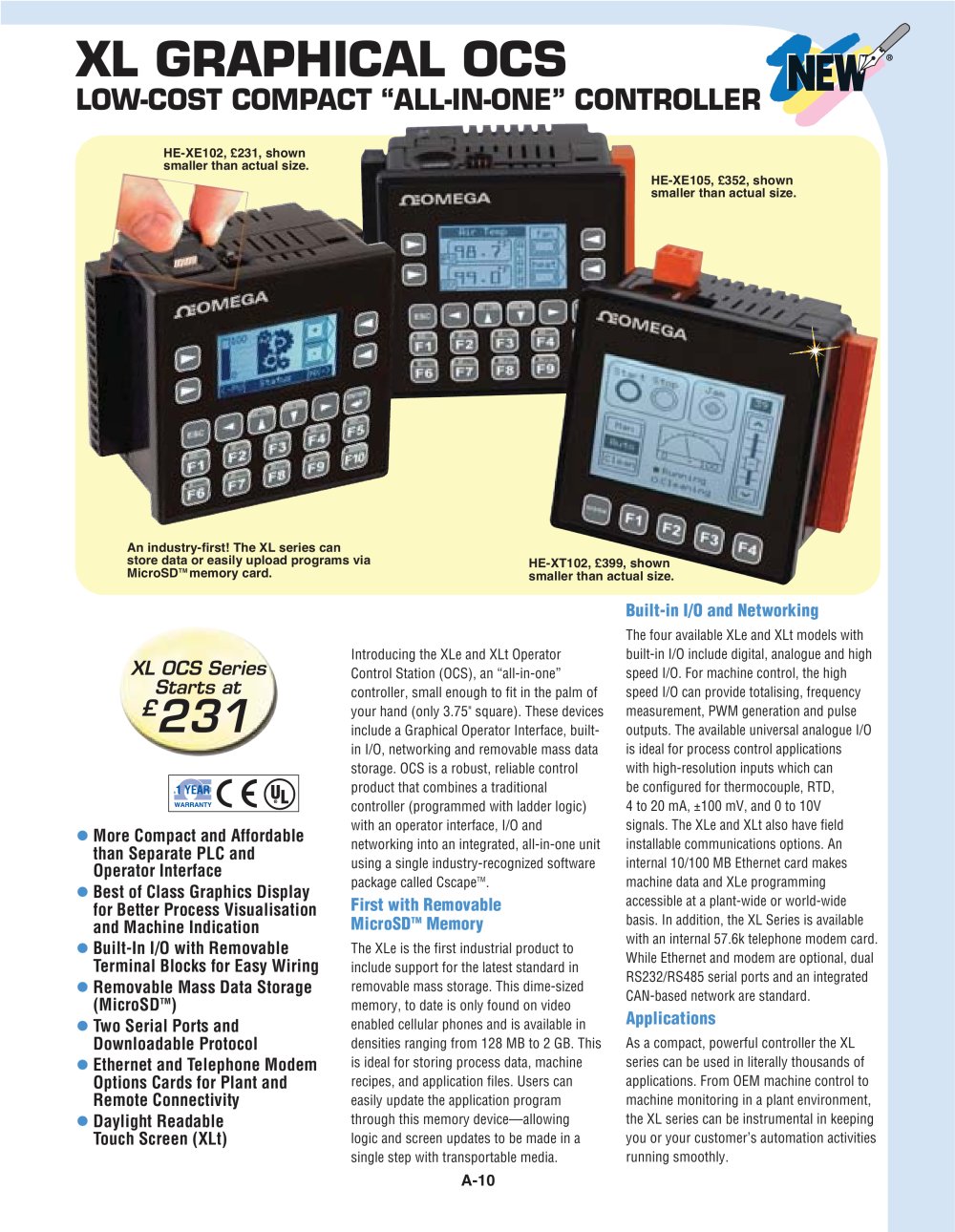

........ XL GRAPHICAL OCS LOW-COST COMPACT “ALL-IN-ONE” CONTROLLER .......................................... .................................................. .......................................... .................................................. .......................................... .................................................. XL OCS Series Starts at £231 More Compact and Affordable than Separate PLC and Operator Interface Best of Class Graphics Display for Better Process Visualisation and Machine Indication Built-In I/O with Removable Terminal Blocks for Easy Wiring Removable Mass Data Storage (MicroSDTM) Two Serial Ports and Downloadable Protocol Ethernet and Telephone Modem Options Cards for Plant and Remote Connectivity Daylight Readable Touch Screen (XLt) Introducing the XLe and XLt Operator Control Station (OCS), an “all-in-one” controller, small enough to fit in the palm of your hand (only 3.75" square). These devices include a Graphical Operator Interface, builtin I/O, networking and removable mass data storage. OCS is a robust, reliable control product that combines a traditional controller (programmed with ladder logic) with an operator interface, I/O and networking into an integrated, all-in-one unit using a single industry-recognized software package called CscapeTM. First with Removable MicroSDTM Memory The XLe is the first industrial product to include support for the latest standard in removable mass storage. This dime-sized memory, to date is only found on video enabled cellular phones and is available in densities ranging from 128 MB to 2 GB. This is ideal for storing process data, machine recipes, and application files. Users can easily update the application program through this memory device—allowing logic and screen updates to be made in a single step with transportable media. Built-in I/O and Networking The four available XLe and XLt models with built-in I/O include digital, analogue and high speed I/O. For machine control, the high speed I/O can provide totalising, frequency measurement, PWM generation and pulse outputs. The available universal analogue I/O is ideal for process control applications with high-resolution inputs which can be configured for thermocouple, RTD, 4 to 20 mA, ±100 mV, and 0 to 10V signals. The XLe and XLt also have field installable communications options. An internal 10/100 MB Ethernet card makes machine data and XLe programming accessible at a plant-wide or world-wide basis. In addition, the XL Series is available with an internal 57.6k telephone modem card. While Ethernet and modem are optional, dual RS232/RS485 serial ports and an integrated CAN-based network are standard. Applications As a compact, powerful controller the XL series can be used in literally thousands of applications. From OEM machine control to machine monitoring in a plant environment, the XL series can be instrumental in keeping you or your customer’s automation activities running smoothly. ........................................................................ .................................................................................. ............................................
