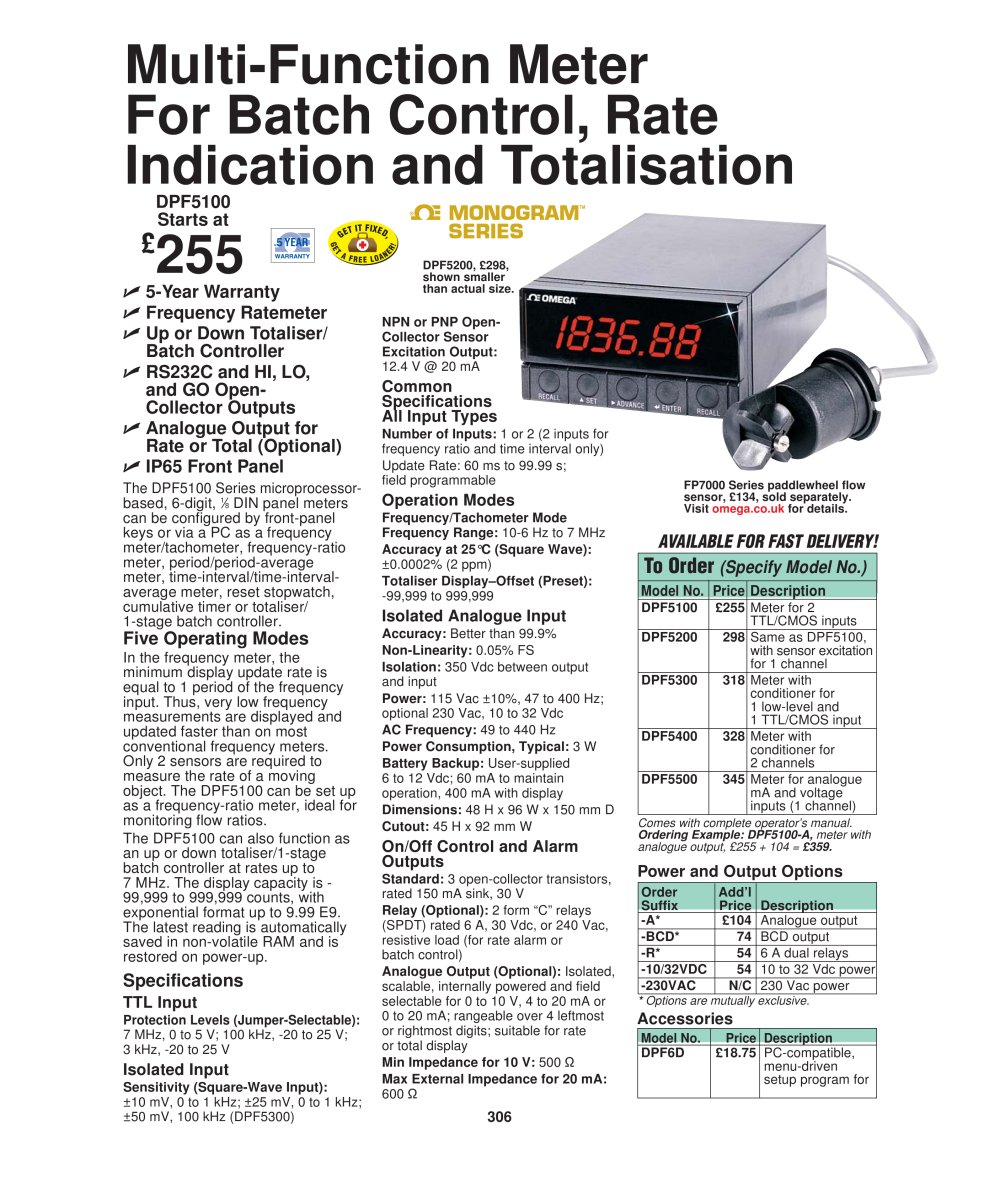

MultiFunction Meter for Batch Control, Rate Indication and Totalization DPF5100 - OMEGA - #1

Text version of the page

306 To Order (Specify Model No.) AVAILABLE FOR FAST DELIVERY! The DPF5100 Series microprocessorbased, 6-digit, 18 DIN panel meters can be configured by front-panel keys or via a PC as a frequency meter/tachometer, frequency-ratio meter, period/period-average meter, time-interval/time-intervalaverage meter, reset stopwatch, cumulative timer or totaliser/ 1-stage batch controller. Five Operating Modes In the frequency meter, the minimum display update rate is equal to 1 period of the frequency input. Thus, very low frequency measurements are displayed and updated faster than on most conventional frequency meters. Only 2 sensors are required to measure the rate of a moving object. The DPF5100 can be set up as a frequency-ratio meter, ideal for monitoring flow ratios. The DPF5100 can also function as an up or down totaliser/1-stage batch controller at rates up to 7 MHz. The display capacity is - 99,999 to 999,999 counts, with exponential format up to 9.99 E9. The latest reading is automatically saved in non-volatile RAM and is restored on power-up. Specifications TTL Input Protection Levels (Jumper-Selectable): 7 MHz, 0 to 5 V; 100 kHz, -20 to 25 V; 3 kHz, -20 to 25 V Isolated Input Sensitivity (Square-Wave Input): ±10 mV, 0 to 1 kHz; ±25 mV, 0 to 1 kHz; ±50 mV, 100 kHz (DPF5300) Model No. Price Description DPF5100 £255 Meter for 2 TTL/CMOS inputs DPF5200 298 Same as DPF5100, with sensor excitation for 1 channel DPF5300 318 Meter with conditioner for 1 low-level and 1 TTL/CMOS input DPF5400 328 Meter with conditioner for 2 channels DPF5500 345 Meter for analogue mA and voltage inputs (1 channel) Comes with complete operator’s manual. Ordering Example: DPF5100-A, meter with analogue output, £255 + 104 = £359. Model No. Price Description DPF6D £18.75 PC-compatible, menu-driven setup program for Accessories Order Add’l Suffix Price Description -A* £104 Analogue output -BCD* 74 BCD output -R* 54 6 A dual relays -10/32VDC 54 10 to 32 Vdc power -230VAC N/C 230 Vac power Power and Output Options Multi-Function Meter For Batch Control, Rate Indication and Totalisation  5-Year Warranty  Frequency Ratemeter  Up or Down Totaliser/ Batch Controller  RS232C and HI, LO, and GO Open- Collector Outputs  Analogue Output for Rate or Total (Optional)  IP65 Front Panel DPF5200, £298, shown smaller than actual size. FP7000 Series paddlewheel flow sensor, £134, sold separately. Visit omega.co.uk for details. * Options are mutually exclusive. NPN or PNP Open- Collector Sensor Excitation Output: 12.4 V @ 20 mA Common Specifications All Input Types Number of Inputs: 1 or 2 (2 inputs for frequency ratio and time interval only) Update Rate: 60 ms to 99.99 s; field programmable Operation Modes Frequency/Tachometer Mode Frequency Range: 10-6 Hz to 7 MHz Accuracy at 25°C (Square Wave): ±0.0002% (2 ppm) Totaliser Display–Offset (Preset): -99,999 to 999,999 Isolated Analogue Input Accuracy: Better than 99.9% Non-Linearity: 0.05% FS Isolation: 350 Vdc between output and input Power: 115 Vac ±10%, 47 to 400 Hz; optional 230 Vac, 10 to 32 Vdc AC Frequency: 49 to 440 Hz Power Consumption, Typical: 3 W Battery Backup: User-supplied 6 to 12 Vdc; 60 mA to maintain operation, 400 mA with display Dimensions: 48 H x 96 W x 150 mm D Cutout: 45 H x 92 mm W On/Off Control and Alarm Outputs Standard: 3 open-collector transistors, rated 150 mA sink, 30 V Relay (Optional): 2 form “C” relays (SPDT) rated 6 A, 30 Vdc, or 240 Vac, resistive load (for rate alarm or batch control) Analogue Output (Optional): Isolated, scalable, internally powered and field selectable for 0 to 10 V, 4 to 20 mA or 0 to 20 mA; rangeable over 4 leftmost or rightmost digits; suitable for rate or total display Min Impedance for 10 V: 500 Ù Max External Impedance for 20 mA: 600 Ù WITH GET IT FIXED, GET A FREE LOANER! DPF5100 Starts at £255
