Multifunction Calibrator CL310
3Pages

{{requestButtons}}

Catalog excerpts

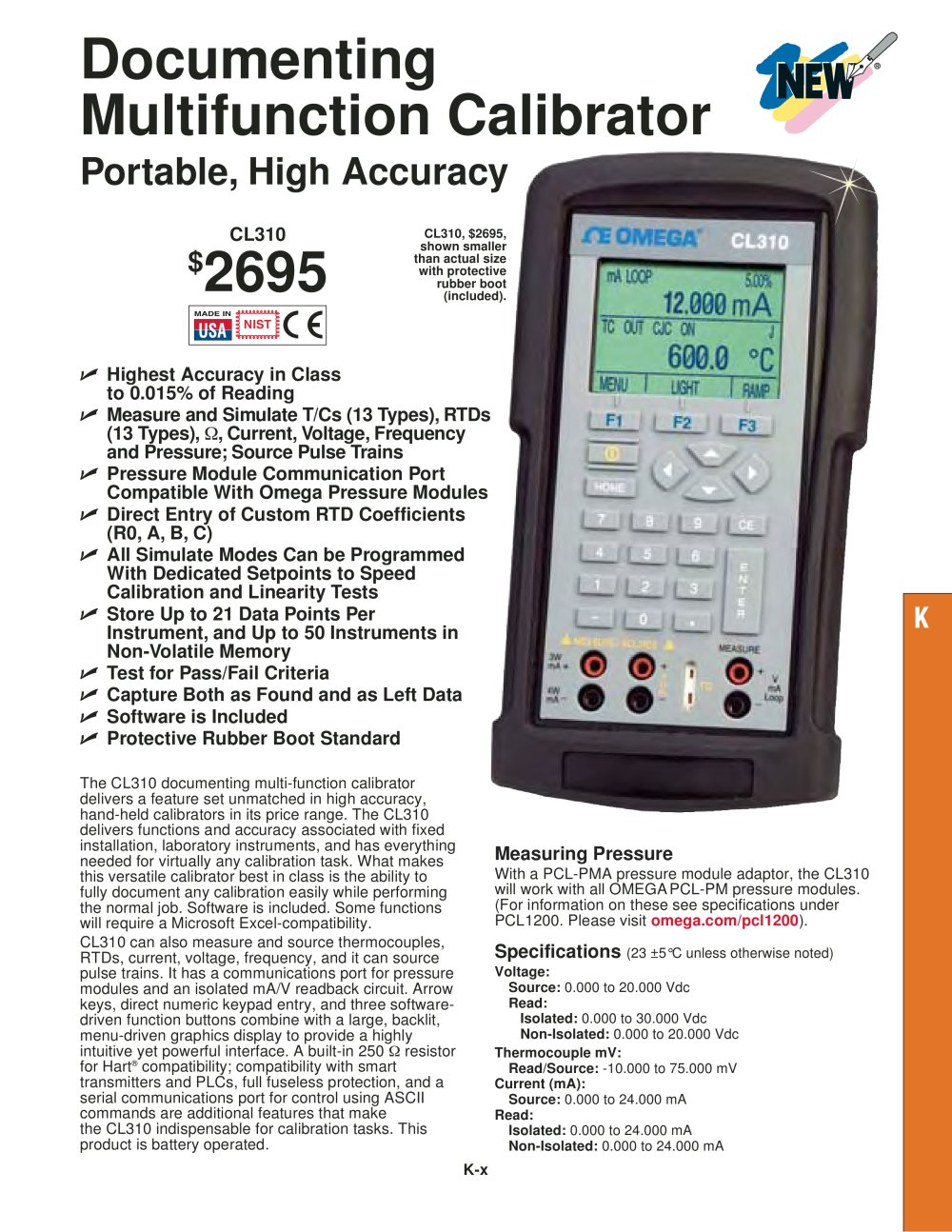

Multifunction Calibrator  CL310 - 1

K-x K CL310 $2695 Highest Accuracy in Class to 0.015% of Reading Measure and Simulate T/Cs (13 Types), RTDs (13 Types), Ù, Current, Voltage, Frequency and Pressure; Source Pulse Trains Pressure Module Communication Port Compatible With Omega Pressure Modules Direct Entry of Custom RTD Coefficients (R0, A, B, C) All Simulate Modes Can be Programmed With Dedicated Setpoints to Speed Calibration and Linearity Tests Store Up to 21 Data Points Per Instrument, and Up to 50 Instruments in Non-Volatile Memory Test for Pass/Fail Criteria Capture Both as Found and as Left Data Software is Included Protective Rubber Boot Standard The CL310 documenting multi-function calibrator delivers a feature set unmatched in high accuracy, hand-held calibrators in its price range. The CL310 delivers functions and accuracy associated with fixed installation, laboratory instruments, and has everything needed for virtually any calibration task. What makes this versatile calibrator best in class is the ability to fully document any calibration easily while performing the normal job. Software is included. Some functions will require a Microsoft Excel-compatibility. CL310 can also measure and source thermocouples, RTDs, current, voltage, frequency, and it can source pulse trains. It has a communications port for pressure modules and an isolated mA/V readback circuit. Arrow keys, direct numeric keypad entry, and three softwaredriven function buttons combine with a large, backlit, menu-driven graphics display to provide a highly intuitive yet powerful interface. A built-in 250 Ù resistor for Hart® compatibility; compatibility with smart transmitters and PLCs, full fuseless protection, and a serial communications port for control using ASCII commands are additional features that make the CL310 indispensable for calibration tasks. This product is battery operated. CL310, $2695, shown smaller than actual size with protective rubber boot (included). Specifications (23 ±5°C unless otherwise noted) Voltage: Source: 0.000 to 20.000 Vdc Read: Isolated: 0.000 to 30.000 Vdc Non-Isolated: 0.000 to 20.000 Vdc Thermocouple mV: Read/Source: -10.000 to 75.000 mV Current (mA): Source: 0.000 to 24.000 mA Read: Isolated: 0.000 to 24.000 mA Non-Isolated: 0.000 to 24.000 mA Documenting Multifunction Calibrator Portable, High Accuracy Measuring Pressure With a PCL-PMA pressure module adaptor, the CL310 will work with all OMEGA PCL-PM pressure modules. (For information on these see specifications under PCL1200. Please visit omega.com/pcl1200).

Open the catalog to page 1
Multifunction Calibrator  CL310 - 2

K-x Environmental Operating Temperature: -10 to 50°C (14 to 122°F) Storage Temperature: -20 to 70°C(-4 to 158°F) Stability: ±0.005% of reading/°C (outside of 23°C ±5°C) Power Requirement: 6 Vdc Batteries: 4 “AA” alkaline (included) or optional rechargeable Mechanical Dimensions: 220.9 H x 106.6 W x 58.4 mm D (8.7 x 4.2 x 2.3") Weight: 863 g (30.5 oz) Model No. Price Description PCL-PMA $310 Pressure module adaptor DPG4000-C32 30 RS232 cable with miniature plug PCL422-TL 17 1.2 m (48") stackable test leads CL20-KIT-2 90 Thermocouple test lead kit PCL-ACA 45 AC adaptor/charger 120 Vac ME-1805...

Open the catalog to page 2
