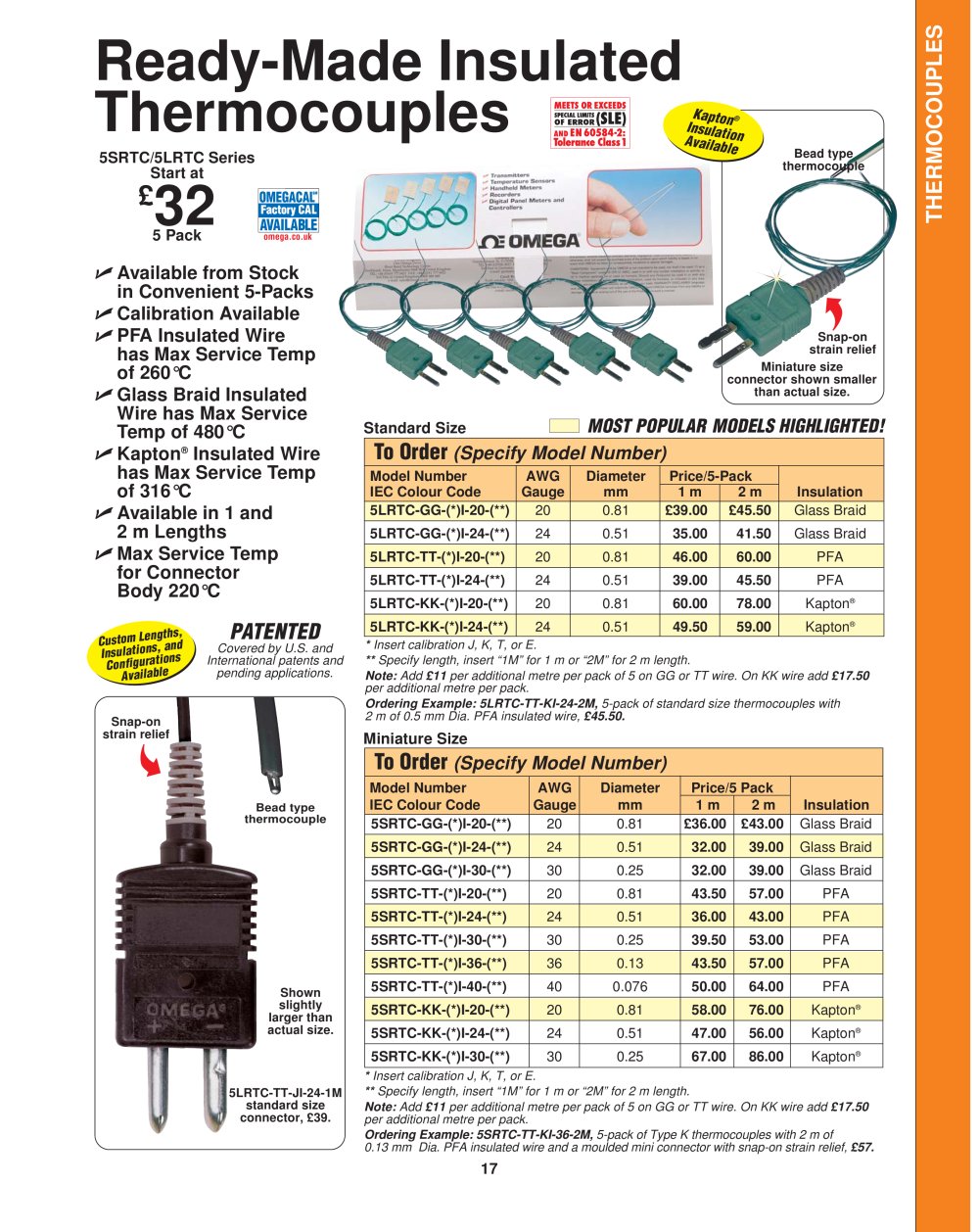

17 To Order (Specify Model Number) Model Number AWG Diameter Price/5 Pack IEC Colour Code Gauge mm 1 m 2 m Insulation 5SRTC-GG-(*)I-20-(**) 20 0.81 £36.00 £43.00 Glass Braid 5SRTC-GG-(*)I-24-(**) 24 0.51 32.00 39.00 Glass Braid 5SRTC-GG-(*)I-30-(**) 30 0.25 32.00 39.00 Glass Braid 5SRTC-TT-(*)I-20-(**) 20 0.81 43.50 57.00 PFA 5SRTC-TT-(*)I-24-(**) 24 0.51 36.00 43.00 PFA 5SRTC-TT-(*)I-30-(**) 30 0.25 39.50 53.00 PFA 5SRTC-TT-(*)I-36-(**) 36 0.13 43.50 57.00 PFA 5SRTC-TT-(*)I-40-(**) 40 0.076 50.00 64.00 PFA 5SRTC-KK-(*)I-20-(**) 20 0.81 58.00 76.00 Kapton® 5SRTC-KK-(*)I-24-(**) 24 0.51 47.00 56.00 Kapton® 5SRTC-KK-(*)I-30-(**) 30 0.25 67.00 86.00 Kapton® * Insert calibration J, K, T, or E. ** Specify length, insert “1M” for 1 m or “2M” for 2 m length. Note: Add £11 per additional metre per pack of 5 on GG or TT wire. On KK wire add £17.50 per additional metre per pack. Ordering Example: 5SRTC-TT-KI-36-2M, 5-pack of Type K thermocouples with 2 m of 0.13 mm Dia. PFA insulated wire and a moulded mini connector with snap-on strain relief, £57. Miniature Size Snap-on strain relief Miniature size connector shown smaller than actual size. Bead type thermocouple Ready-Made Insulated Thermocouples Available from Stock in Convenient 5-Packs Calibration Available PFA Insulated Wire has Max Service Temp of 260°C Glass Braid Insulated Wire has Max Service Temp of 480°C Kapton® Insulated Wire has Max Service Temp of 316°C Available in 1 and 2 m Lengths Max Service Temp for Connector Body 220°C 5SRTC/5LRTC Series Start at £32 5 Pack Covered by U.S. and International patents and pending applications. PATENTED Kapton® Insulation Available Snap-on strain relief * Insert calibration J, K, T, or E. ** Specify length, insert “1M” for 1 m or “2M” for 2 m length. Note: Add £11 per additional metre per pack of 5 on GG or TT wire. On KK wire add £17.50 per additional metre per pack. Ordering Example: 5LRTC-TT-KI-24-2M, 5-pack of standard size thermocouples with 2 m of 0.5 mm Dia. PFA insulated wire, £45.50. Standard Size Bead type thermocouple 5LRTC-TT-JI-24-1M standard size connector, £39. Shown slightly larger than actual size. MOST POPULAR MODELS HIGHLIGHTED! Custom Lengths, Insulations, and Configurations Available THERMOCOUPLES To Order (Specify Model Number) Model Number AWG Diameter Price/5-Pack IEC Colour Code Gauge mm 1 m 2 m Insulation 5LRTC-GG-(*)I-20-(**) 20 0.81 £39.00 £45.50 Glass Braid 5LRTC-GG-(*)I-24-(**) 24 0.51 35.00 41.50 Glass Braid 5LRTC-TT-(*)I-20-(**) 20 0.81 46.00 60.00 PFA 5LRTC-TT-(*)I-24-(**) 24 0.51 39.00 45.50 PFA 5LRTC-KK-(*)I-20-(**) 20 0.81 60.00 78.00 Kapton® 5LRTC-KK-(*)I-24-(**) 24 0.51 49.50 59.00 Kapton® omega.co.uk
