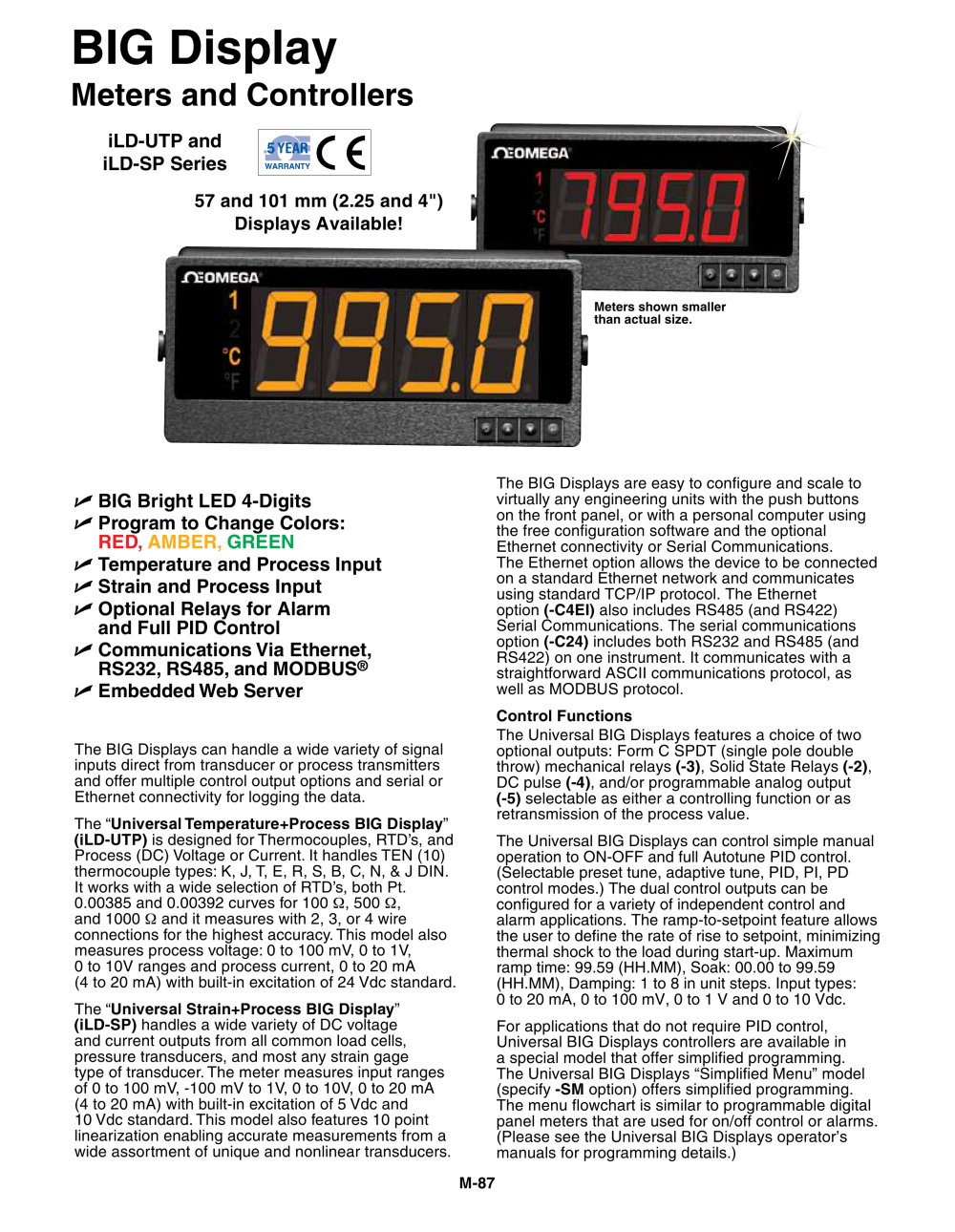

iLD Series BIG Display Meters & Controllers iLD Series - OMEGA - #1

Text version of the page

308  BIG, Bright 57 or 101 mm LED Digits  Program to Change Colours: RED, AMBER, GREEN  Many Input Choices  Optional Relays for Alarm and Full PID Control  Communications Via Ethernet, RS232, RS485, and MODBUS  Embedded Web Server  Free Software, Active X Controls The award-winning iSeries meters and controllers now features a new BIG display. Like all iSeries meters, the new BIG display can be programmed to change colours between RED, AMBER, and GREEN at any set point or alarm point. For example, the instrument can be programmed to display the process value in GREEN during warm-up, switching to AMBER to signal the normal operating range, and in RED to signal an alarm condition. The BIG display can be mounted flush in a panel or surface mounted with the included brackets. The entire RED Display enclosure provides IP65 protection. Whether panel-mounted or surfacemounted, the BIG display does not need to go inside a bulky and expensive environmental enclosure. iLD Series Starts at 535 57 and 101 mm Displays Available! B G D splay Meters shown smaller than actual size. NEWPORTTM Covered by U.S. and International patents and pending applications PATENTED
