High Quality
5-Year Warranty
High Accuracy ±0.5°C
(±0.9°F), 0.03% Reading
User-Friendly,
Simple to Configure
Free Software
Full Autotune PID Control
Universal Inputs: RTD,
Thermocouple, Process
Voltage/Current, Strain
Totally Programmable
Color Displays (Standard)
Built-InExcitation
(Standard)
2 Control or Alarm
Outputs: DC Pulse,
Mechanical Relays,
Analog Voltage
and Current
Embedded Internet
Connectivity

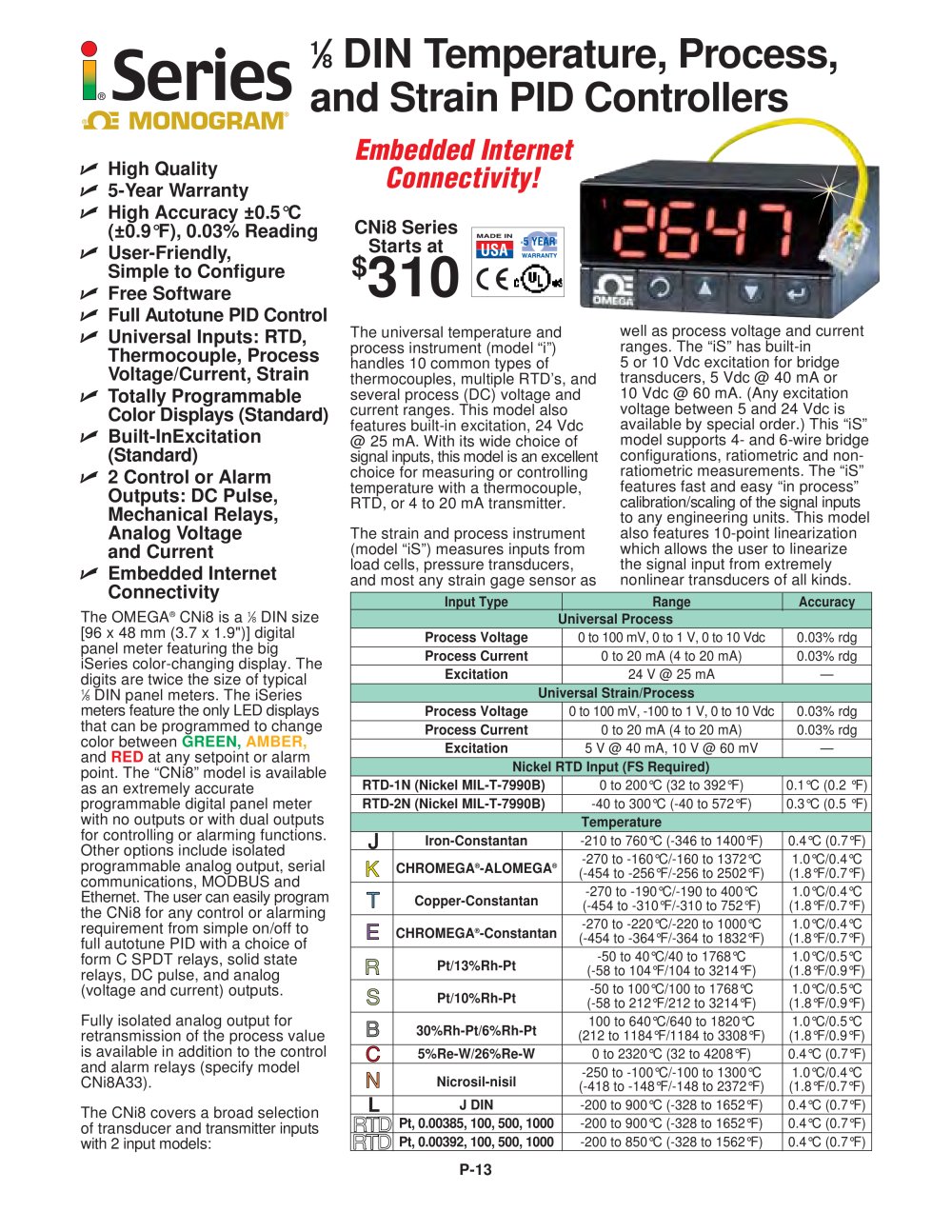

The OMEGA® CNi8 is a 18 DIN size
[96 x 48 mm (3.7 x 1.9")] digital
panel meter featuring the big
iSeries color-changing display. The
digits are twice the size of typical
18 DIN panel
meters. The iSeries
meters feature the only LED displays
that can be programmed to change
color between GREEN, AMBER,
and RED at any setpoint or alarm
point. The “CNi8” model is available
as an extremely accurate
programmable digital panel meter
with no outputs or with dual outputs
for controlling or alarming functions.
Other options include isolated
programmable analog output, serial
communications, MODBUS and
Ethernet. The user can easily program
the CNi8 for any control or alarming
requirement from simple on/off to
full autotune PID with a choice of
form C SPDT relays, solid state
relays, DC pulse, and analog
(voltage and current) outputs.
Fully isolated analog output for
retransmission of the process value
is available in addition to the control
and alarm relays (specify model
CNi8A33).
The CNi8 covers a broad selection
of transducer and transmitter inputs
with 2 input models:
The universal temperature and
process instrument (model “i”)
handles 10 common types of
thermocouples, multiple RTD’s, and
several process (DC) voltage and
current ranges. This model also
features built-in excitation, 24 Vdc
@ 25 mA. With its wide choice of
signal inputs, this model is an excellent
choice for measuring or controlling
temperature with a thermocouple,
RTD, or 4 to 20 mA transmitter.
The strain and process instrument
(model “iS”) measures inputs from
load cells, pressure transducers,
and most any strain gage sensor as
well as process voltage and current
ranges. The “iS” has built-in
5 or 10 Vdc excitation for bridge
transducers, 5 Vdc @ 40 mA or
10 Vdc @ 60 mA. (Any excitation
voltage between 5 and 24 Vdc is
available by special order.) This “iS”
model supports 4- and 6-wire bridge
configurations, ratiometric and nonratiometric
measurements. The “iS”
features fast and easy “in process”
calibration/scaling of the signal inputs
to any engineering units. This model
also features 10-point linearization
which allows the user to linearize
the signal input from extremely
nonlinear transducers of all kinds.
L
18 DIN Temperature, Process,
and Strain PID Controllers
Embedded Internet
Connectivity!
P-13
CNi8 Series
Starts at
$310
Input Type Range Accuracy
Universal Process
Process Voltage 0 to 100 mV, 0 to 1 V, 0 to 10 Vdc 0.03% rdg
Process Current 0 to 20 mA (4 to 20 mA) 0.03% rdg
Excitation 24 V @ 25 mA —
Universal Strain/Process
Process Voltage 0 to 100 mV, -100 to 1 V, 0 to 10 Vdc 0.03% rdg
Process Current 0 to 20 mA (4 to 20 mA) 0.03% rdg
Excitation 5 V @ 40 mA, 10 V @ 60 mV —
Nickel RTD Input (FS Required)
RTD-1N (Nickel MIL-T-7990B) 0 to 200°C (32 to 392°F) 0.1°C (0.2 °F)
RTD-2N (Nickel MIL-T-7990B) -40 to 300°C (-40 to 572°F) 0.3°C (0.5 °F)
Temperature
Iron-Constantan -210 to 760°C (-346 to 1400°F) 0.4°C (0.7°F)
-270 to -160°C/-160 to 1372°C 1.0°C/0.4°C
CHROMEGA®-ALOMEGA® (-454 to -256°F/-256 to 2502°F) (1.8°F/0.7°F)
-270 to -190°C/-190 to 400°C 1.0°C/0.4°C
Copper-Constantan (-454 to -310°F/-310 to 752°F) (1.8°F/0.7°F)
-270 to -220°C/-220 to 1000°C 1.0°C/0.4°C
CHROMEGA®-Constantan (-454 to -364°F/-364 to 1832°F) (1.8°F/0.7°F)
-50 to 40°C/40 to 1768°C 1.0°C/0.5°C
Pt/13%Rh-Pt (-58 to 104°F/104 to 3214°F) (1.8°F/0.9°F)
-50 to 100°C/100 to 1768°C 1.0°C/0.5°C
Pt/10%Rh-Pt (-58 to 212°F/212 to 3214°F) (1.8°F/0.9°F)
100 to 640°C/640 to 1820°C 1.0°C/0.5°C
30%Rh-Pt/6%Rh-Pt (212 to 1184°F/1184 to 3308°F) (1.8°F/0.9°F)
5%Re-W/26%Re-W 0 to 2320°C (32 to 4208°F) 0.4°C (0.7°F)
-250 to -100°C/-100 to 1300°C 1.0°C/0.4°C
Nicrosil-nisil (-418 to -148°F/-148 to 2372°F) (1.8°F/0.7°F)
J DIN -200 to 900°C (-328 to 1652°F) 0.4°C (0.7°F)
Pt, 0.00385, 100, 500, 1000 -200 to 900°C (-328 to 1652°F) 0.4°C (0.7°F)
Pt, 0.00392, 100, 500, 1000 -200 to 850°C (-328 to 1562°F) 0.4°C (0.7°F)
