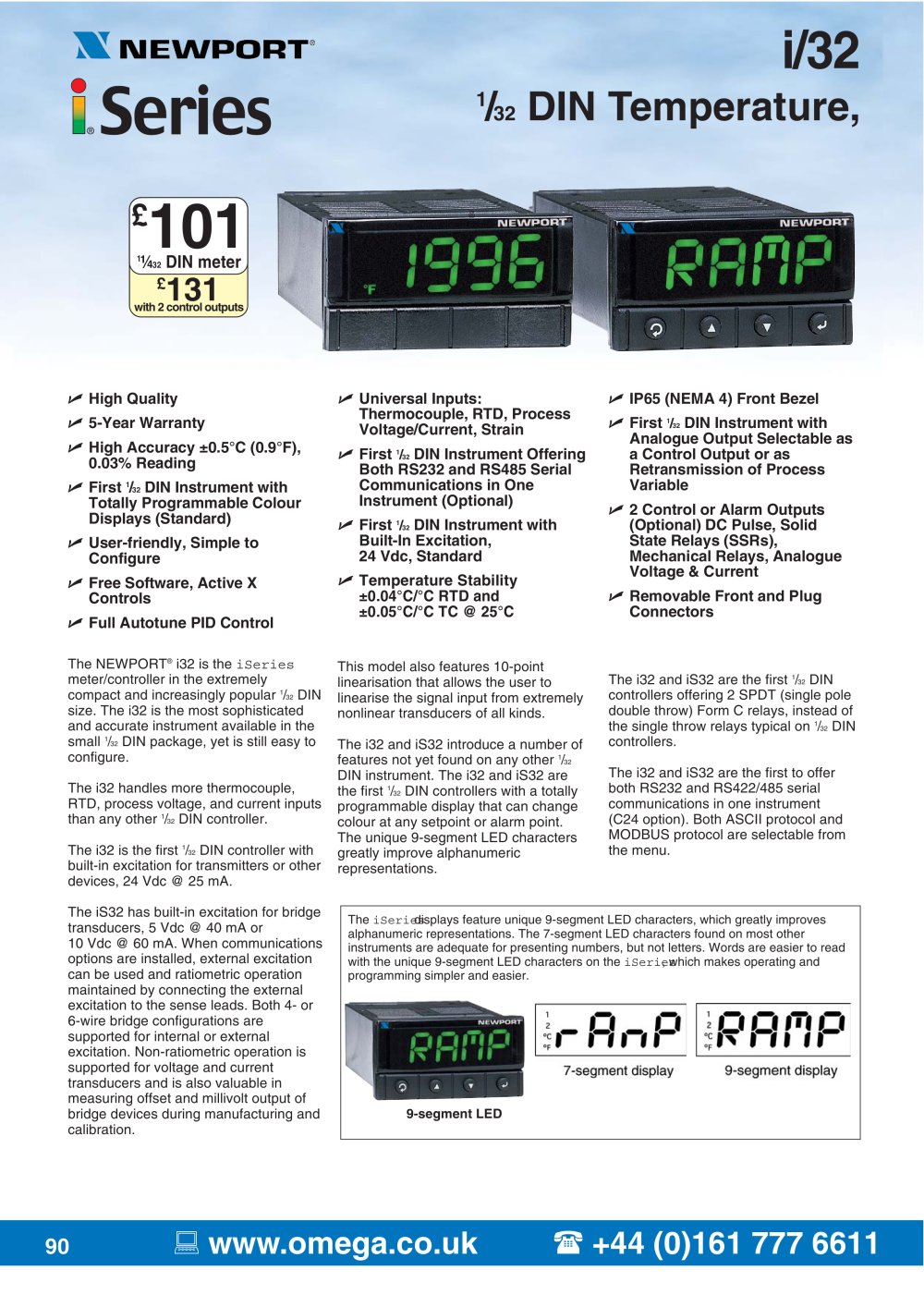

90 www.omega.co.uk +44 (0)161 777 6611 The NEWPORT® i32 is the iSeries meter/controller in the extremely compact and increasingly popular 1/32 DIN size. The i32 is the most sophisticated and accurate instrument available in the small 1/32 DIN package, yet is still easy to configure. The i32 handles more thermocouple, RTD, process voltage, and current inputs than any other 1/32 DIN controller. The i32 is the first 1/32 DIN controller with built-in excitation for transmitters or other devices, 24 Vdc @ 25 mA. The iS32 has built-in excitation for bridge transducers, 5 Vdc @ 40 mA or 10 Vdc @ 60 mA. When communications options are installed, external excitation can be used and ratiometric operation maintained by connecting the external excitation to the sense leads. Both 4- or 6-wire bridge configurations are supported for internal or external excitation. Non-ratiometric operation is supported for voltage and current transducers and is also valuable in measuring offset and millivolt output of bridge devices during manufacturing and calibration. This model also features 10-point linearisation that allows the user to linearise the signal input from extremely nonlinear transducers of all kinds. The i32 and iS32 introduce a number of features not yet found on any other 1/32 DIN instrument. The i32 and iS32 are the first 1/32 DIN controllers with a totally programmable display that can change colour at any setpoint or alarm point. The unique 9-segment LED characters greatly improve alphanumeric representations. The i32 and iS32 are the first 1/32 DIN controllers offering 2 SPDT (single pole double throw) Form C relays, instead of the single throw relays typical on 1/32 DIN controllers. The i32 and iS32 are the first to offer both RS232 and RS422/485 serial communications in one instrument (C24 option). Both ASCII protocol and MODBUS protocol are selectable from the menu. 1/32 DIN Temperature,  High Quality  5-Year Warranty  High Accuracy ±0.5°C (0.9°F), 0.03% Reading  First 1/32 DIN Instrument with Totally Programmable Colour Displays (Standard)  User-friendly, Simple to Configure  Free Software, Active X Controls  Full Autotune PID Control  Universal Inputs: Thermocouple, RTD, Process Voltage/Current, Strain  First 1/32 DIN Instrument Offering Both RS232 and RS485 Serial Communications in One Instrument (Optional)  First 1/32 DIN Instrument with Built-In Excitation, 24 Vdc, Standard  Temperature Stability ±0.04°C/°C RTD and ±0.05°C/°C TC @ 25°C  IP65 (NEMA 4) Front Bezel  First 1/32 DIN Instrument with Analogue Output Selectable as a Control Output or as Retransmission of Process Variable  2 Control or Alarm Outputs (Optional) DC Pulse, Solid State Relays (SSRs), Mechanical Relays, Analogue Voltage & Current  Removable Front and Plug Connectors i/32 with 2 control outputs £131 £101 1¼32 DIN meter The iSeries displays feature unique 9-segment LED characters, which greatly improves alphanumeric representations. The 7-segment LED characters found on most other instruments are adequate for presenting numbers, but not letters. Words are easier to read with the unique 9-segment LED characters on the iSerie, swhich makes operating and programming simpler and easier. 9-segment LED
