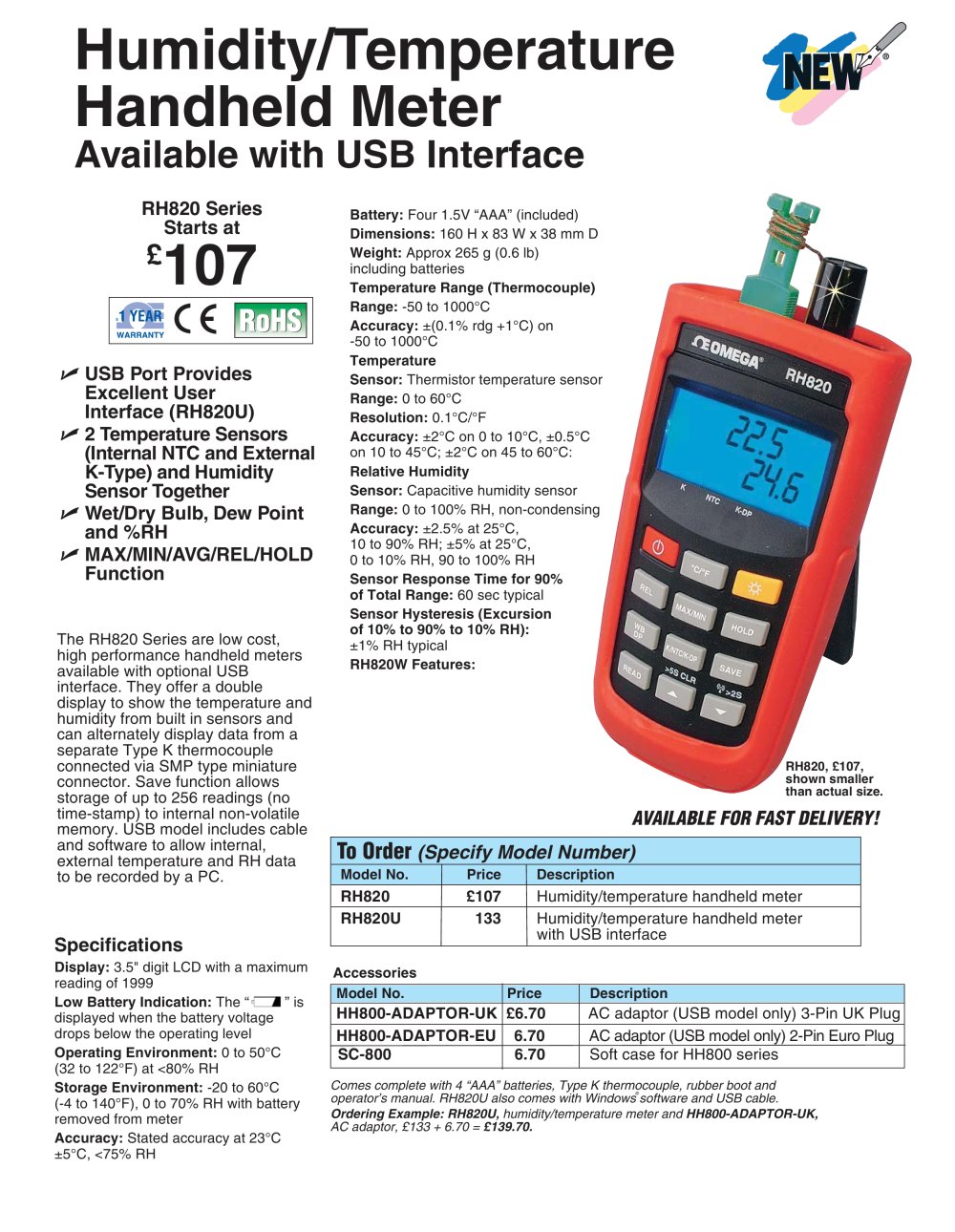

Humidity Temperature Handheld Meters RH820 Series - 1

Humidity/Temperature Handheld Meter Available with USB Interface RH820 Series Starts at £107 USB Port Provides Excellent User Interface (RH820U) 2 Temperature Sensors (Internal NTC and External K-Type) and Humidity Sensor Together Wet/Dry Bulb, Dew Point and %RH MAX/MIN/AVG/REL/HOLD Function The RH820 Series are low cost, high performance handheld meters available with optional USB interface. They offer a double display to show the temperature and humidity from built in sensors and can alternately display data from a separate Type K thermocouple connected via SMP type miniature connector. Save function allows storage of up to 256 readings (no time-stamp) to internal non-volatile memory. USB model includes cable and software to allow internal, external temperature and RH data to be recorded by a PC. Specifications Display: 3.5" digit LCD with a maximum reading of 1999 Low Battery Indication: The “ ” is displayed when the battery voltage drops below the operating level Operating Environment: 0 to 50°C (32 to 122°F) at <80% RH Storage Environment: -20 to 60°C (-4 to 140°F), 0 to 70% RH with battery removed from meter Accuracy: Stated accuracy at 23°C ±5°C, <75% RH Battery: Four 1.5V “AAA” (included) Dimensions: 160 H x 83 W x 38 mm D Weight: Approx 265 g (0.6 lb) including batteries Temperature Range (Thermocouple) Range: -50 to 1000°C Accuracy: ±(0.1% rdg +1°C) on -50 to 1000°C Temperature Sensor: Thermistor temperature sensor Range: 0 to 60°C Resolution: 0.1°C/°F Accuracy: ±2°C on 0 to 10°C, ±0.5°C on 10 to 45°C; ±2°C on 45 to 60°C: Relative Humidity Sensor: Capacitive humidity sensor Range: 0 to 100% RH, non-condensing Accuracy: ±2.5% at 25°C, 10 to 90% RH; ±5% at 25°C, 0 to 10% RH, 90 to 100% RH Sensor Response Time for 90% of Total Range: 60 sec typical Sensor Hysteresis (Excursion of 10% to 90% to 10% RH): ±1% RH typical RH820W Features: Comes complete with 4 “AAA” batteries, Type K thermocouple, rubber boot and operator’s manual. RH820U also comes with Windows software and USB cable. Ordering Example: RH820U, humidity/temperature meter and HH800-ADAPTOR-UK, AC adaptor, £133 + 6.70 = £139.70. To Order (Specify Model Number) Model No. Price Description RH820 £107 Humidity/temperature handheld meter RH820U 133 Humidity/temperature handheld meter with USB interface Model No. Price Description HH800-ADAPTOR-UK £6.70 AC adaptor (USB model only) 3-Pin UK Plug HH800-ADAPTOR-EU 6.70 AC adaptor (USB model only) 2-Pin Euro Plug Accessories AVAILABLE FOR FAST DELIVERY! RH820, £107, shown smaller than actual size. SC-800 6.70 Soft case for HH800 series ®

Open the catalog to page 1

Humidity Temperature Handheld Meters RH820 Series - 2

Freephone 0800 488 488 | International +44(0) 161 777 6622 | Fax +44(0) 161 777 6622 | Sales@omega.co.uk www.omega.co.uk More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr 088-466-342 BENELUX www.omega.nl 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and Measurement...

Open the catalog to page 2
