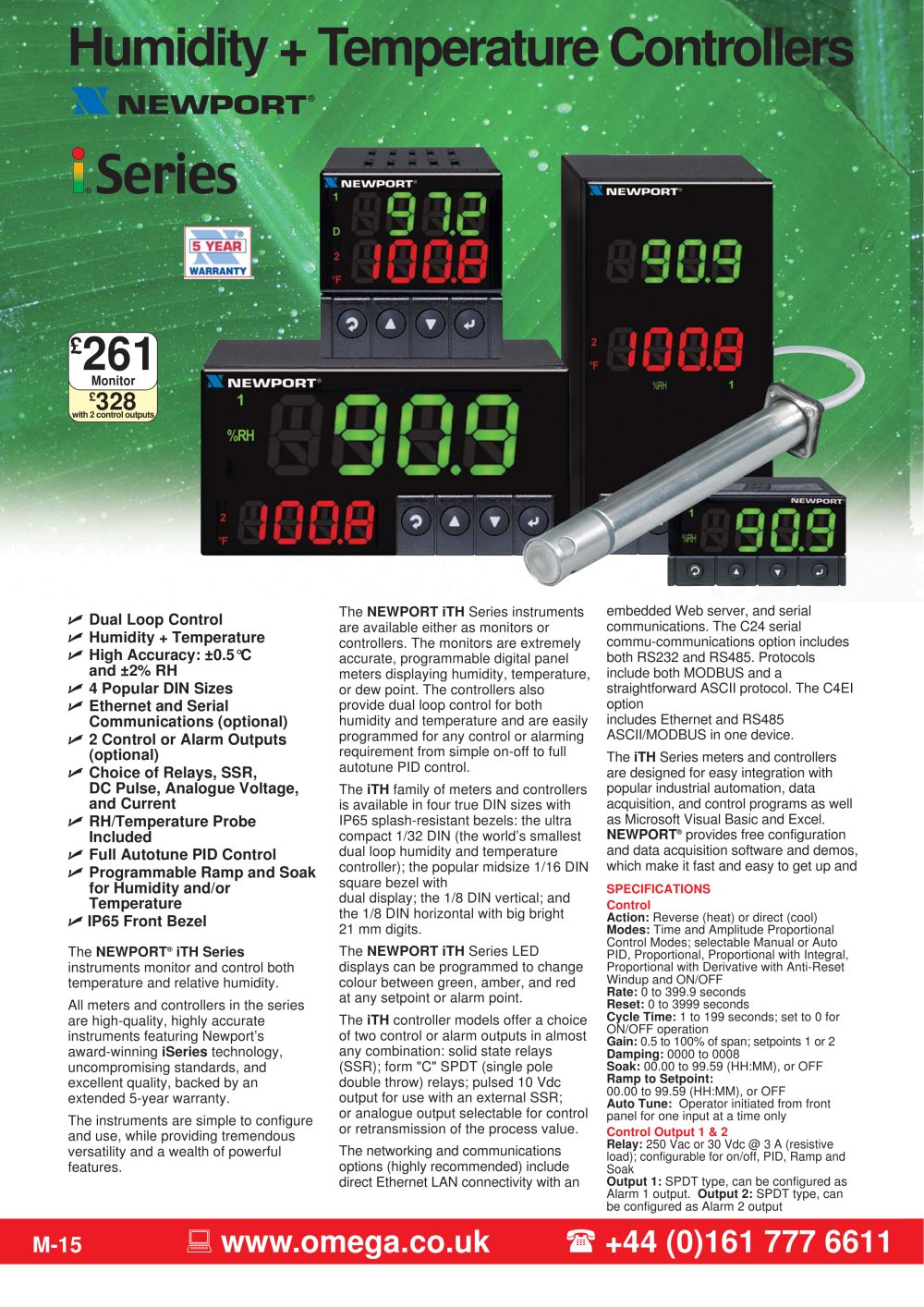

Humidity & Temperature Controllers CNiTH and DPiTH Series - OMEGA - #1

Text version of the page

M-15 www.omega.co.uk +44 (0)161 777 6611 The NEWPORT® iTH Series instruments monitor and control both temperature and relative humidity. All meters and controllers in the series are high-quality, highly accurate instruments featuring Newport’s award-winning iSeries technology, uncompromising standards, and excellent quality, backed by an extended 5-year warranty. The instruments are simple to configure and use, while providing tremendous versatility and a wealth of powerful features.  Dual Loop Control  Humidity + Temperature  High Accuracy: ±0.5°C and ±2% RH  4 Popular DIN Sizes  Ethernet and Serial Communications (optional)  2 Control or Alarm Outputs (optional)  Choice of Relays, SSR, DC Pulse, Analogue Voltage, and Current  RH/Temperature Probe Included  Full Autotune PID Control  Programmable Ramp and Soak for Humidity and/or Temperature  IP65 Front Bezel The NEWPORT iTH Series instruments are available either as monitors or controllers. The monitors are extremely accurate, programmable digital panel meters displaying humidity, temperature, or dew point. The controllers also provide dual loop control for both humidity and temperature and are easily programmed for any control or alarming requirement from simple on-off to full autotune PID control. The iTH family of meters and controllers is available in four true DIN sizes with IP65 splash-resistant bezels: the ultra compact 1/32 DIN (the world’s smallest dual loop humidity and temperature controller); the popular midsize 1/16 DIN square bezel with dual display; the 1/8 DIN vertical; and the 1/8 DIN horizontal with big bright 21 mm digits. The NEWPORT iTH Series LED displays can be programmed to change colour between green, amber, and red at any setpoint or alarm point. The iTH controller models offer a choice of two control or alarm outputs in almost any combination: solid state relays (SSR); form "C" SPDT (single pole double throw) relays; pulsed 10 Vdc output for use with an external SSR; or analogue output selectable for control or retransmission of the process value. The networking and communications options (highly recommended) include direct Ethernet LAN connectivity with an SPECIFICATIONS Control Action: Reverse (heat) or direct (cool) Modes: Time and Amplitude Proportional Control Modes; selectable Manual or Auto PID, Proportional, Proportional with Integral, Proportional with Derivative with Anti-Reset Windup and ON/OFF Rate: 0 to 399.9 seconds Reset: 0 to 3999 seconds Cycle Time: 1 to 199 seconds; set to 0 for ON/OFF operation Gain: 0.5 to 100% of span; setpoints 1 or 2 Damping: 0000 to 0008 Soak: 00.00 to 99.59 (HH:MM), or OFF Ramp to Setpoint: 00.00 to 99.59 (HH:MM), or OFF Auto Tune: Operator initiated from front panel for one input at a time only Control Output 1 & 2 Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID, Ramp and Soak Output 1: SPDT type, can be configured as Alarm 1 output. Output 2: SPDT type, can be configured as Alarm 2 output embedded Web server, and serial communications. The C24 serial commu-communications option includes both RS232 and RS485. Protocols include both MODBUS and a straightforward ASCII protocol. The C4EI option includes Ethernet and RS485 ASCII/MODBUS in one device. The iTH Series meters and controllers are designed for easy integration with popular industrial automation, data acquisition, and control programs as well as Microsoft Visual Basic and Excel. NEWPORT® provides free configuration and data acquisition software and demos, which make it fast and easy to get up and Humidity + Temperature Controllers with 2 control outputs £328 £261 Monitor ®
