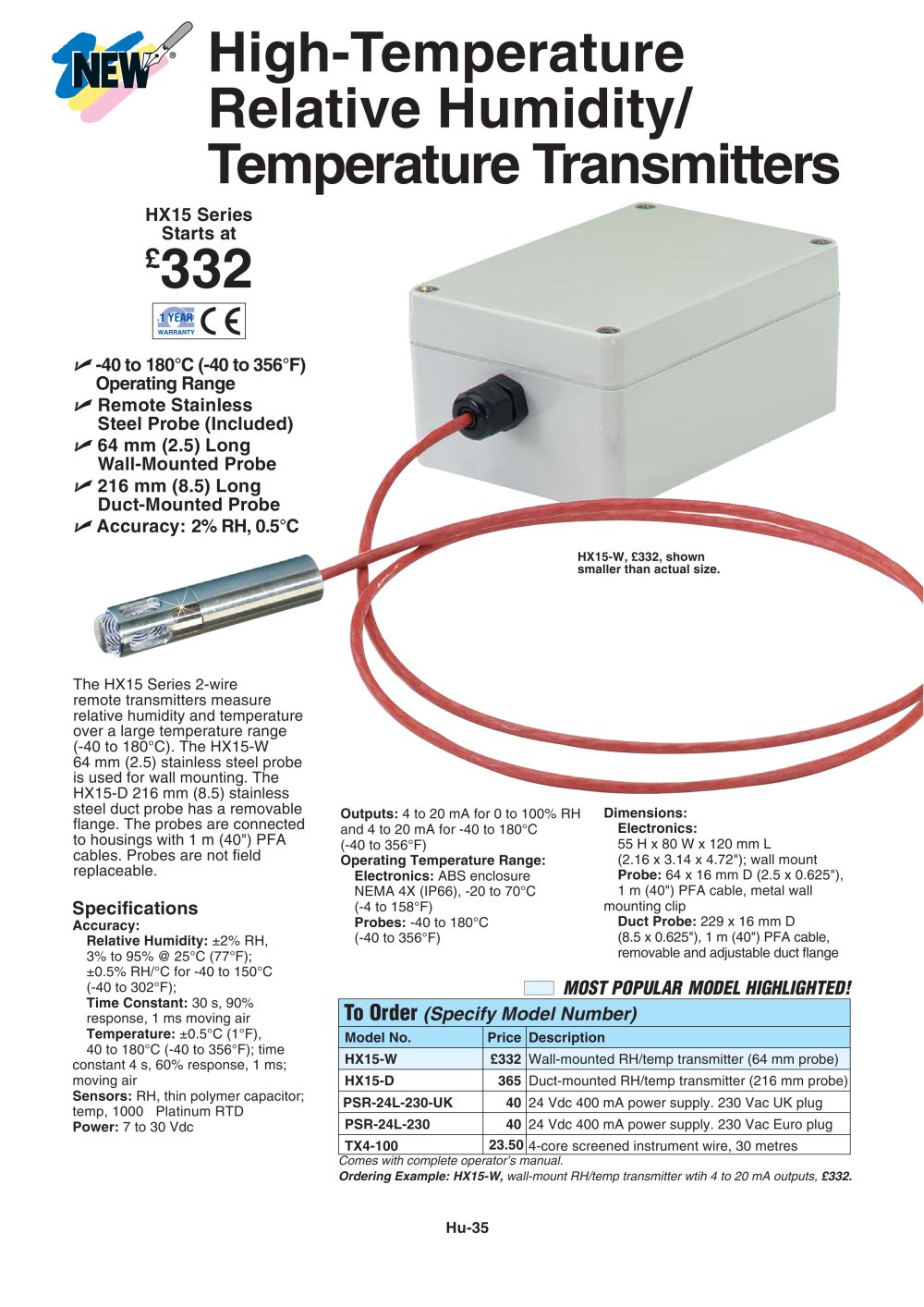

High Temperature Relative Humidity/Temperature Transmitter, with Remote Probe HX15 Series - OMEGA - #1

Text version of the page

Hu-35 Comes with complete operator’s manual. Ordering Example: HX15-W, wall-mount RH/temp transmitter wtih 4 to 20 mA outputs, £332. Specifications Accuracy: Relative Humidity: ±2% RH, 3% to 95%@25°C (77°F); ±0.5% RH/°C for -40 to 150°C (-40 to 302°F); Time Constant: 30 s, 90% response, 1 ms moving air Temperature: ±0.5°C (1°F), 40 to 180°C (-40 to 356°F); time constant 4 s, 60% response, 1 ms; moving air Sensors: RH, thin polymer capacitor; temp, 1000 Platinum RTD Power: 7 to 30 Vdc Dimensions: Electronics: 55 H x 80 W x 120 mm L (2.16 x 3.14 x 4.72"); wall mount Probe: 64 x 16 mm D (2.5 x 0.625"), 1 m (40") PFA cable, metal wall mounting clip Duct Probe: 229 x 16 mm D (8.5 x 0.625"), 1 m (40") PFA cable, removable and adjustable duct flange -40 to 180°C (-40 to 356°F) Operating Range Remote Stainless Steel Probe (Included) 64 mm (2.5) Long Wall-Mounted Probe 216 mm (8.5) Long Duct-Mounted Probe Accuracy: 2%RH, 0.5°C HX15-W, £332, shown smaller than actual size. The HX15 Series 2-wire remote transmitters measure relative humidity and temperature over a large temperature range (-40 to 180°C). The HX15-W 64 mm (2.5) stainless steel probe is used for wall mounting. The HX15-D 216 mm (8.5) stainless steel duct probe has a removable flange. The probes are connected to housings with 1 m (40") PFA cables. Probes are not field replaceable. Outputs: 4 to 20 mA for 0 to 100% RH and 4 to 20 mA for -40 to 180°C (-40 to 356°F) Operating Temperature Range: Electronics: ABS enclosure NEMA 4X (IP66), -20 to 70°C (-4 to 158°F) Probes: -40 to 180°C (-40 to 356°F) To Order (Specify Model Number) Model No. Price Description HX15-W £332 Wall-mounted RH/temp transmitter (64 mm probe) HX15-D 365 Duct-mounted RH/temp transmitter (216 mm probe) PSR-24L-230-UK 40 24 Vdc 400 mA power supply. 230 Vac UK plug PSR-24L-230 40 24 Vdc 400 mA power supply. 230 Vac Euro plug TX4-100 4-core screened instrument wire, 30 metres High-Temperature Relative Humidity/ Temperature Transmitters MOST POPULAR MODEL HIGHLIGHTED! HX15 Series Starts at £332 23.50
