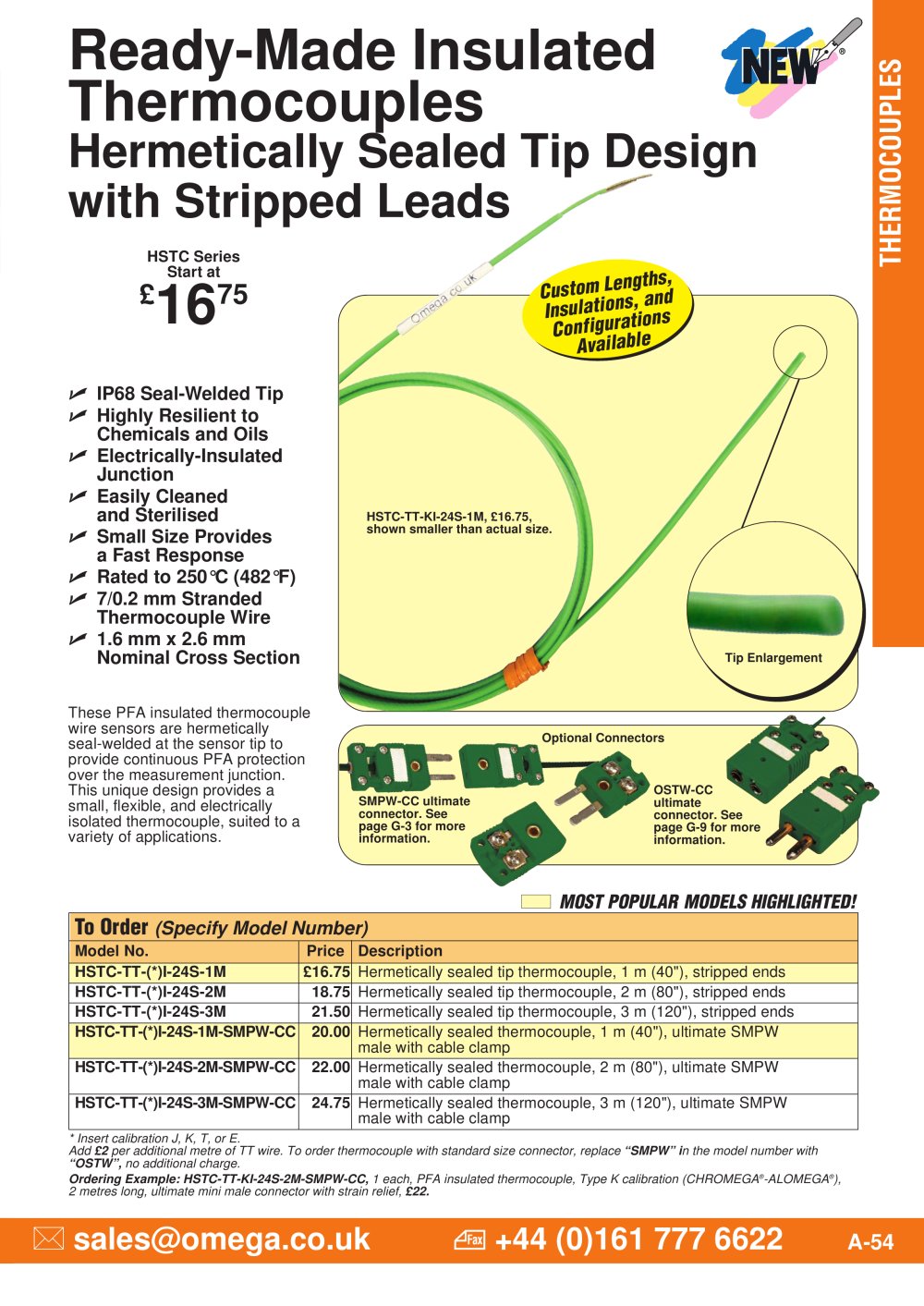

Hermetically Sealed Thermocouple HSTC Series - OMEGA - #1

Text version of the page

THERMOCOUPLES *sales@omega.co.uk +44 (0)161 777 6622 A-54 Ready-Made Insulated Thermocouples Hermetically Sealed Tip Design with Stripped Leads U IP68 Seal-Welded Tip U Highly Resilient to Chemicals and Oils U Electrically-Insulated Junction U Easily Cleaned and Sterilised U Small Size Provides a Fast Response U Rated to 250°C (482°F) U 7/0.2 mm Stranded Thermocouple Wire U 1.6 mm x 2.6 mm Nominal Cross Section HSTC Series Start at £1675 Custom Lengths, Insulations, and Configurations Available * Insert calibration J, K, T, or E. Add £2 per additional metre of TT wire. To order thermocouple with standard size connector, replace “SMPW” in the model number with “OSTW”, no additional charge. Ordering Example: HSTC-TT-KI-24S-2M-SMPW-CC, 1 each, PFA insulated thermocouple, Type K calibration (CHROMEGA®-ALOMEGA®), 2 metres long, ultimate mini male connector with strain relief, £22. To Order (Specify Model Number) Model No. Price Description HSTC-TT-(*)I-24S-1M £16.75 Hermetically sealed tip thermocouple, 1 m (40"), stripped ends HSTC-TT-(*)I-24S-2M 18.75 Hermetically sealed tip thermocouple, 2 m (80"), stripped ends HSTC-TT-(*)I-24S-3M 21.50 Hermetically sealed tip thermocouple, 3 m (120"), stripped ends HSTC-TT-(*)I-24S-1M-SMPW-CC 20.00 Hermetically sealed thermocouple, 1 m (40"), ultimate SMPW male with cable clamp HSTC-TT-(*)I-24S-2M-SMPW-CC 22.00 Hermetically sealed thermocouple, 2 m (80"), ultimate SMPW male with cable clamp HSTC-TT-(*)I-24S-3M-SMPW-CC 24.75 Hermetically sealed thermocouple, 3 m (120"), ultimate SMPW male with cable clamp MOST POPULAR MODELS HIGHLIGHTED! These PFA insulated thermocouple wire sensors are hermetically seal-welded at the sensor tip to provide continuous PFA protection over the measurement junction. This unique design provides a small, flexible, and electrically isolated thermocouple, suited to a variety of applications. HSTC-TT-KI-24S-1M, £16.75, shown smaller than actual size. OSTW-CC ultimate connector. See page G-9 for more information. SMPW-CC ultimate connector. See page G-3 for more information. Optional Connectors Tip Enlargement
