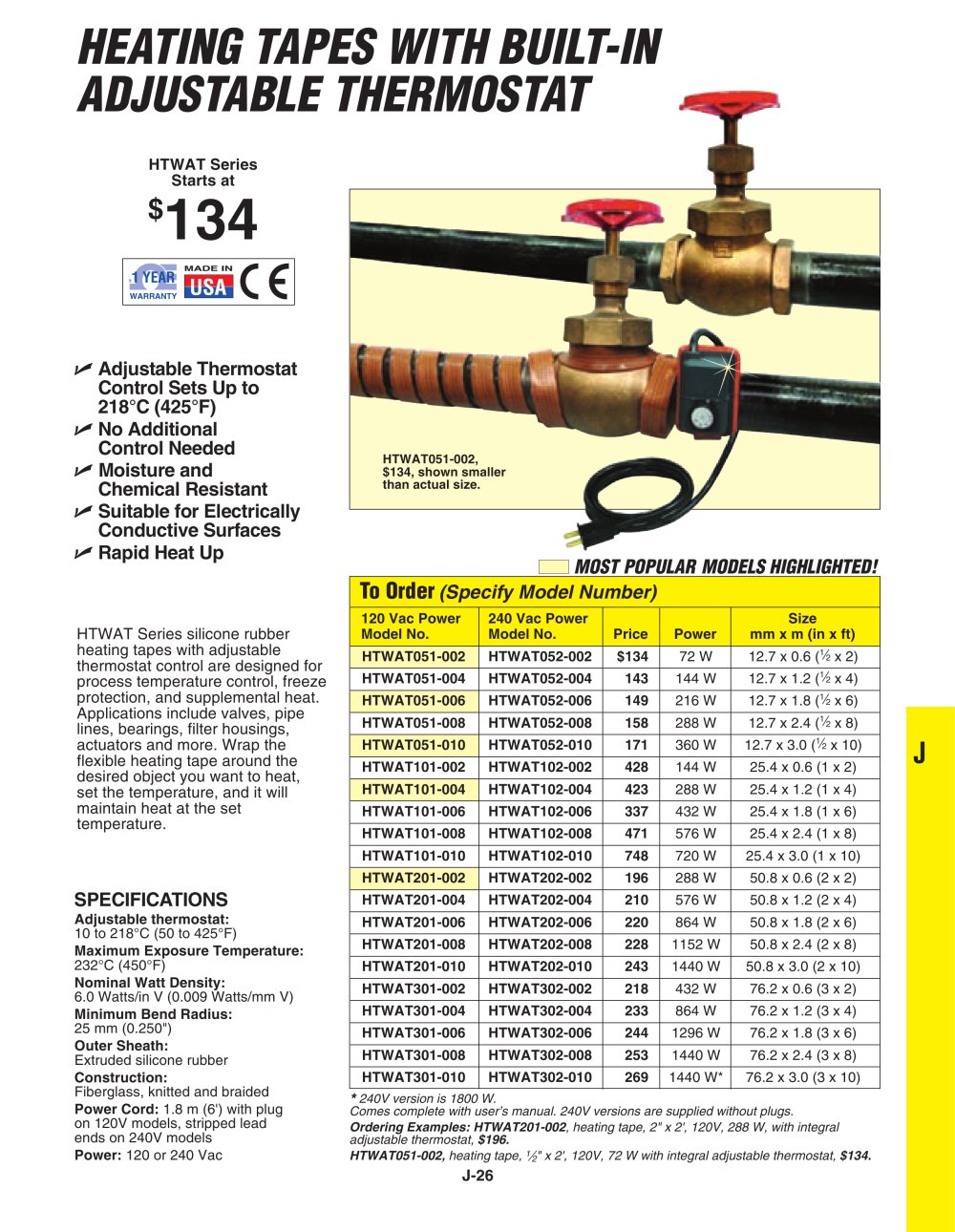

Heating Tapes with Adjustable Thermostat HTWAT Series - OMEGA - #1

Text version of the page

J-26 J SPECIFICATIONS Adjustable thermostat: 10 to 218°C (50 to 425°F) Maximum Exposure Temperature: 232°C (450°F) Nominal Watt Density: 6.0 Watts/in V (0.009 Watts/mm V) Minimum Bend Radius: 25 mm (0.250") Outer Sheath: Extruded silicone rubber Construction: Fiberglass, knitted and braided Power Cord: 1.8 m (6') with plug on 120V models, stripped lead ends on 240V models Power: 120 or 240 Vac HTWAT Series silicone rubber heating tapes with adjustable thermostat control are designed for process temperature control, freeze protection, and supplemental heat. Applications include valves, pipe lines, bearings, filter housings, actuators and more. Wrap the flexible heating tape around the desired object you want to heat, set the temperature, and it will maintain heat at the set temperature.  Adjustable Thermostat Control Sets Up to 218°C (425°F)  No Additional Control Needed  Moisture and Chemical Resistant  Suitable for Electrically Conductive Surfaces  Rapid Heat Up To Order (Specify Model Number) 120 Vac Power 240 Vac Power Size Model No. Model No. Price Power mm x m (in x ft) HTWAT051-002 HTWAT052-002 $134 72 W 12.7 x 0.6 (12 x 2) HTWAT051-004 HTWAT052-004 143 144 W 12.7 x 1.2 (12 x 4) HTWAT051-006 HTWAT052-006 149 216 W 12.7 x 1.8 (12 x 6) HTWAT051-008 HTWAT052-008 158 288 W 12.7 x 2.4 (12 x 8) HTWAT051-010 HTWAT052-010 171 360 W 12.7 x 3.0 (12 x 10) HTWAT101-002 HTWAT102-002 428 144 W 25.4 x 0.6 (1 x 2) HTWAT101-004 HTWAT102-004 423 288 W 25.4 x 1.2 (1 x 4) HTWAT101-006 HTWAT102-006 337 432 W 25.4 x 1.8 (1 x 6) HTWAT101-008 HTWAT102-008 471 576 W 25.4 x 2.4 (1 x 8) HTWAT101-010 HTWAT102-010 748 720 W 25.4 x 3.0 (1 x 10) HTWAT201-002 HTWAT202-002 196 288 W 50.8 x 0.6 (2 x 2) HTWAT201-004 HTWAT202-004 210 576 W 50.8 x 1.2 (2 x 4) HTWAT201-006 HTWAT202-006 220 864 W 50.8 x 1.8 (2 x 6) HTWAT201-008 HTWAT202-008 228 1152 W 50.8 x 2.4 (2 x 8) HTWAT201-010 HTWAT202-010 243 1440 W 50.8 x 3.0 (2 x 10) HTWAT301-002 HTWAT302-002 218 432 W 76.2 x 0.6 (3 x 2) HTWAT301-004 HTWAT302-004 233 864 W 76.2 x 1.2 (3 x 4) HTWAT301-006 HTWAT302-006 244 1296 W 76.2 x 1.8 (3 x 6) HTWAT301-008 HTWAT302-008 253 1440 W 76.2 x 2.4 (3 x 8) HTWAT301-010 HTWAT302-010 269 1440 W* 76.2 x 3.0 (3 x 10) * 240V version is 1800 W. Comes complete with user’s manual. 240V versions are supplied without plugs. Ordering Examples: HTWAT201-002, heating tape, 2" x 2', 120V, 288 W, with integral adjustable thermostat, $196. HTWAT051-002, heating tape, 12" x 2', 120V, 72 W with integral adjustable thermostat, $134. HEATING TAPES WITH BUILT-IN ADJUSTABLE THERMOSTAT HTWAT Series Starts at $134 HTWAT051-002, $134, shown smaller than actual size. MOST POPULAR MODELS HIGHLIGHTED!
