Handheld Thermocouple Thermometers HH800 Series

Handheld Thermocouple Thermometers HH800 Series
2Pages

Catalog excerpts

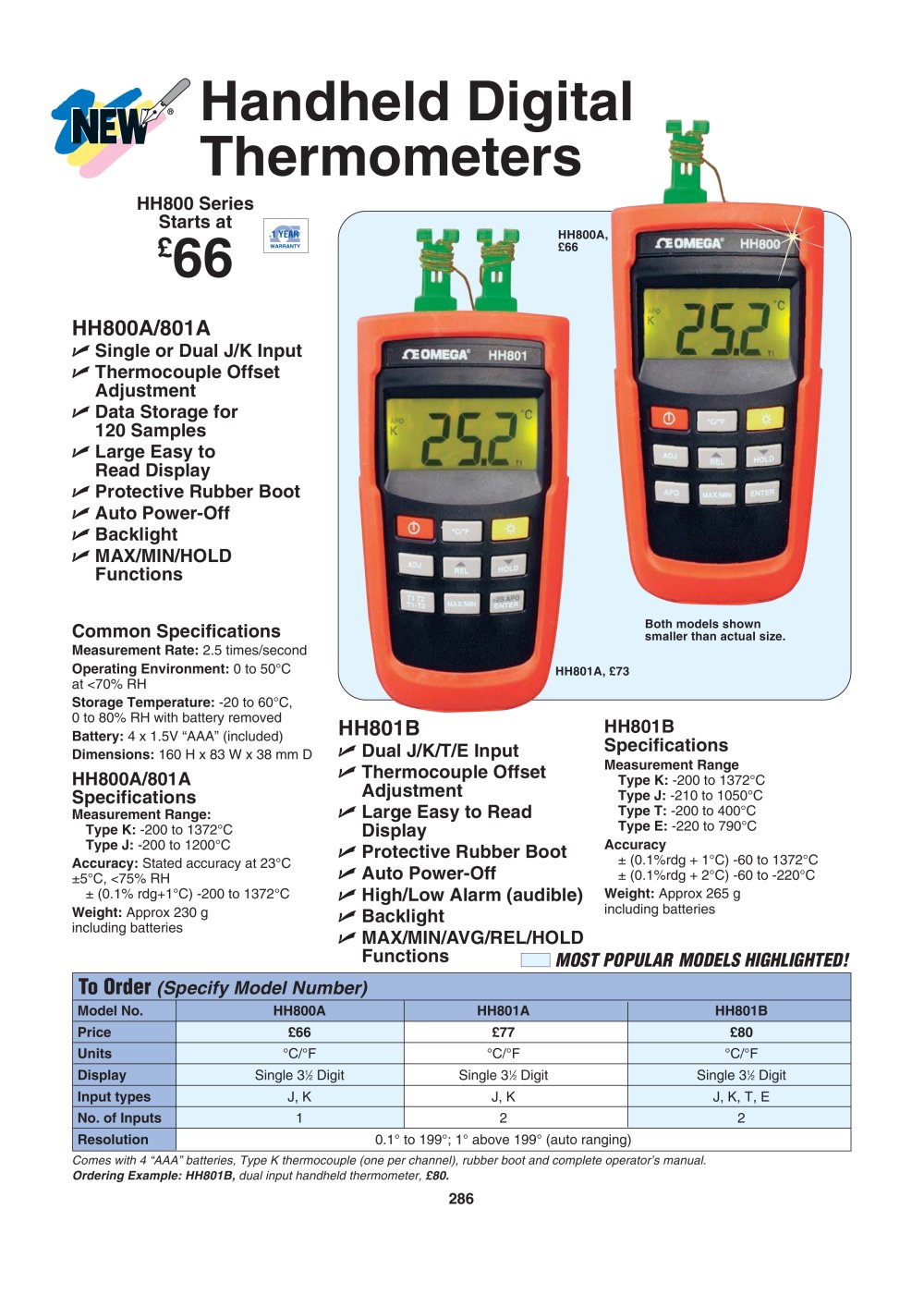

Handheld Thermocouple Thermometers HH800 Series - 1

Handheld Digital Thermometers 286 HH800 Series Starts at £66 HH801B Dual J/K/T/E Input Thermocouple Offset Adjustment Large Easy to Read Display Protective Rubber Boot Auto Power-Off High/Low Alarm (audible) Backlight MAX/MIN/AVG/REL/HOLD Functions HH801B Specifications Measurement Range Type K: -200 to 1372°C Type J: -210 to 1050°C Type T: -200 to 400°C Type E: -220 to 790°C Accuracy ± (0.1%rdg + 1°C) -60 to 1372°C ± (0.1%rdg + 2°C) -60 to -220°C Weight: Approx 265 g including batteries Both models shown smaller than actual size. HH801A, £73 MOST POPULAR MODELS HIGHLIGHTED! Comes with 4 “AAA” batteries, Type K thermocouple (one per channel), rubber boot and complete operator’s manual. Ordering Example: HH801B, dual input handheld thermometer, £80. To Order (Specify Model Number) Model No. HH800A HH801A HH801B Price £66 £77 £80 Units °C/°F °C/°F °C/°F Display Single 312 Digit Single 312 Digit Single 312 Digit Input types J, K J, K J, K, T, E No. of Inputs 1 2 2 Resolution 0.1° to 199°; 1° above 199° (auto ranging) HH800A, £66 HH800A/801A Single or Dual J/K Input Thermocouple Offset Adjustment Data Storage for 120 Samples Large Easy to Read Display Protective Rubber Boot Auto Power-Off Backlight MAX/MIN/HOLD Functions Common Specifications Measurement Rate: 2.5 times/second Operating Environment: 0 to 50°C at <70% RH Storage Temperature: -20 to 60°C, 0 to 80% RH with battery removed Battery: 4 x 1.5V “AAA” (included) Dimensions: 160 H x 83 W x 38 mm D HH800A/801A Specifications Measurement Range: Type K: -200 to 1372°C Type J: -200 to 1200°C Accuracy: Stated accuracy at 23°C ±5°C, <75% RH ± (0.1% rdg+1°C) -200 to 1372°C Weight: Approx 230 g including batteries

Open the catalog to page 1

Handheld Thermocouple Thermometers HH800 Series - 2

Freephone 0800 488 488 | International +44(0) 161 777 6622 | Fax +44(0) 161 777 6622 | Sales@omega.co.uk www.omega.co.uk More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr 088-466-342 BENELUX www.omega.nl 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and Measurement...

Open the catalog to page 2
