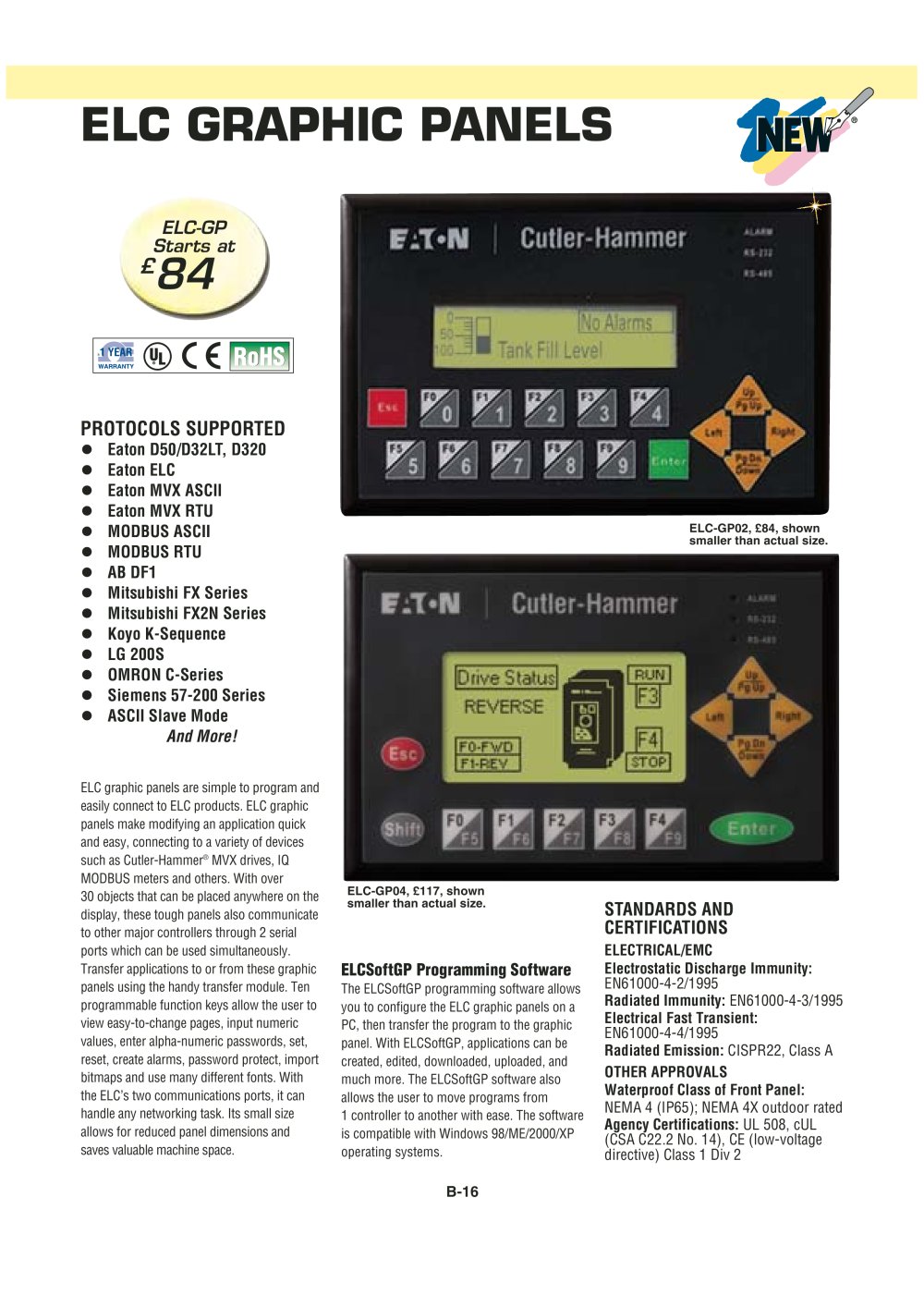

B-16
ELC GRAPHIC PANELS
PROTOCOLS SUPPORTED
Eaton D50/D32LT, D320
Eaton ELC
Eaton MVX ASCII
Eaton MVX RTU
MODBUS ASCII
MODBUS RTU
AB DF1
Mitsubishi FX Series
Mitsubishi FX2N Series
Koyo K-Sequence
LG 200S
OMRON C-Series
Siemens 57-200 Series
ASCII Slave Mode
And More!
ELC-GP
Starts at
£84
STANDARDS AND
CERTIFICATIONS
ELECTRICAL/EMC
Electrostatic Discharge Immunity:
EN61000-4-2/1995
Radiated Immunity: EN61000-4-3/1995
Electrical Fast Transient:
EN61000-4-4/1995
Radiated Emission: CISPR22, Class A
OTHER APPROVALS
Waterproof Class of Front Panel:
NEMA 4 (IP65); NEMA 4X outdoor rated
Agency Certifications: UL 508, cUL
(CSA C22.2 No. 14), CE (low-voltage
directive) Class 1 Div 2
ELC-GP04, £117, shown
smaller than actual size.
ELCSoftGP Programming Software
The ELCSoftGP programming software allows
you to configure the ELC graphic panels on a
PC, then transfer the program to the graphic
panel. With ELCSoftGP, applications can be
created, edited, downloaded, uploaded, and
much more. The ELCSoftGP software also
allows the user to move programs from
1 controller to another with ease. The software
is compatible with Windows 98/ME/2000/XP
operating systems.
ELC graphic panels are simple to program and
easily connect to ELC products. ELC graphic
panels make modifying an application quick
and easy, connecting to a variety of devices
such as Cutler-Hammer® MVX drives, IQ
MODBUS meters and others. With over
30 objects that can be placed anywhere on the
display, these tough panels also communicate
to other major controllers through 2 serial
ports which can be used simultaneously.
Transfer applications to or from these graphic
panels using the handy transfer module. Ten
programmable function keys allow the user to
view easy-to-change pages, input numeric
values, enter alpha-numeric passwords, set,
reset, create alarms, password protect, import
bitmaps and use many different fonts. With
the ELC’s two communications ports, it can
handle any networking task. Its small size
allows for reduced panel dimensions and
saves valuable machine space.
ELC-GP02, £84, shown
smaller than actual size.
RoHS
