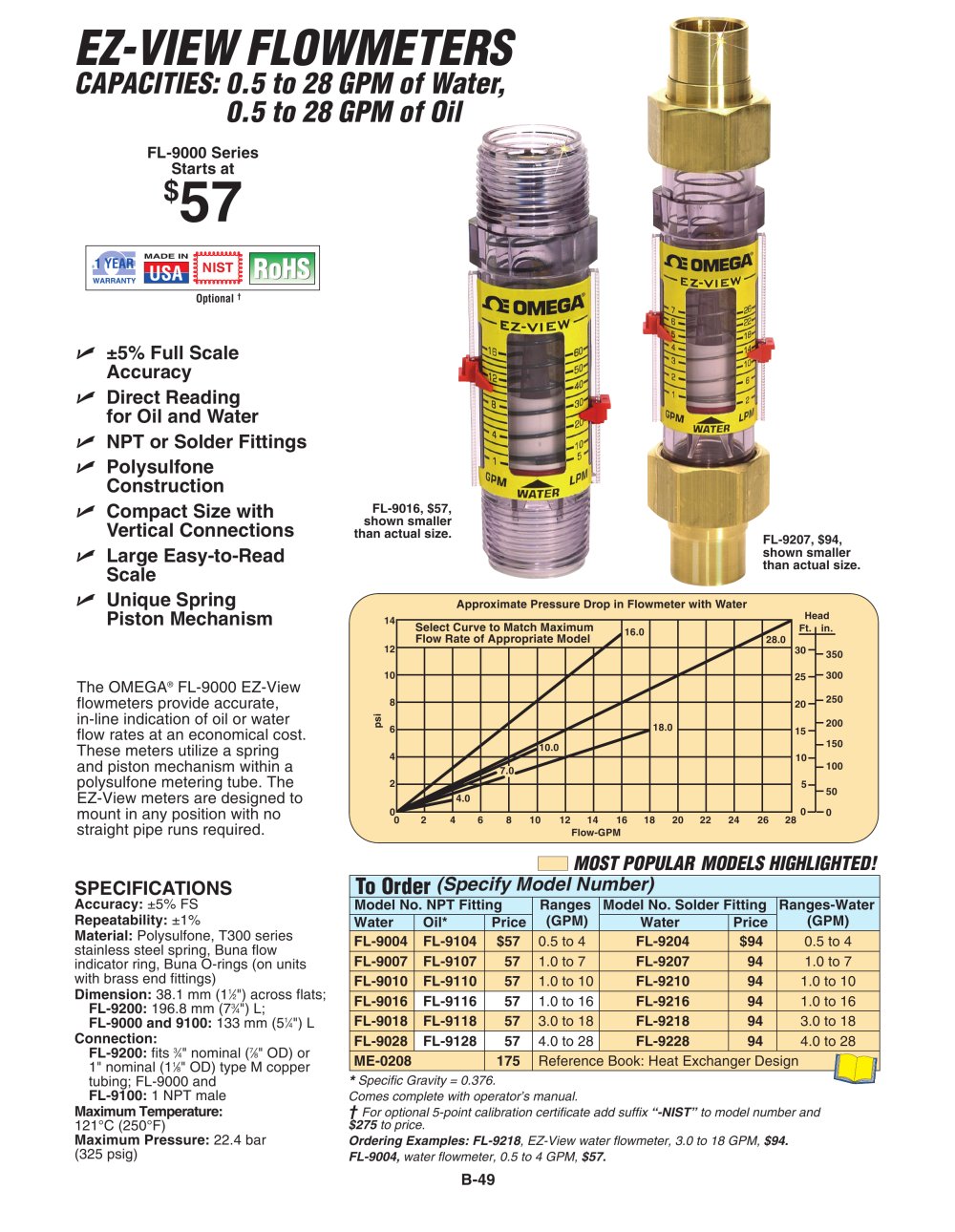

B-49 FL-9000 Series Starts at $57  ±5% Full Scale Accuracy  Direct Reading for Oil and Water  NPT or Solder Fittings  Polysulfone Construction  Compact Size with Vertical Connections  Large Easy-to-Read Scale  Unique Spring Piston Mechanism EZ-VIEW FLOWMETERS CAPACITIES: 0.5 to 28 GPM of Water, 0.5 to 28 GPM of Oil FL-9016, $57, shown smaller than actual size. FL-9207, $94, shown smaller than actual size. To Order (Specify Model Number) Model No. NPT Fitting Ranges Model No. Solder Fitting Ranges-Water Water Oil* Price (GPM) Water Price (GPM) FL-9004 FL-9104 $57 0.5 to 4 FL-9204 $94 0.5 to 4 FL-9007 FL-9107 57 1.0 to 7 FL-9207 94 1.0 to 7 FL-9010 FL-9110 57 1.0 to 10 FL-9210 94 1.0 to 10 FL-9016 FL-9116 57 1.0 to 16 FL-9216 94 1.0 to 16 FL-9018 FL-9118 57 3.0 to 18 FL-9218 94 3.0 to 18 FL-9028 FL-9128 57 4.0 to 28 FL-9228 94 4.0 to 28 ME-0208 175 Reference Book: Heat Exchanger Design * Specific Gravity = 0.376. Comes complete with operator’s manual. † For optional 5-point calibration certificate add suffix “-NIST” to model number and $275 to price. Ordering Examples: FL-9218, EZ-View water flowmeter, 3.0 to 18 GPM, $94. FL-9004, water flowmeter, 0.5 to 4 GPM, $57. SPECIFICATIONS Accuracy: ±5% FS Repeatability: ±1% Material: Polysulfone, T300 series stainless steel spring, Buna flow indicator ring, Buna O-rings (on units with brass end fittings) Dimension: 38.1 mm (112") across flats; FL-9200: 196.8 mm (734") L; FL-9000 and 9100: 133 mm (514") L Connection: FL-9200: fits 34" nominal (78" OD) or 1" nominal (118" OD) type M copper tubing; FL-9000 and FL-9100: 1 NPT male Maximum Temperature: 121°C (250°F) Maximum Pressure: 22.4 bar (325 psig) The OMEGA® FL-9000 EZ-View flowmeters provide accurate, in-line indication of oil or water flow rates at an economical cost. These meters utilize a spring and piston mechanism within a polysulfone metering tube. The EZ-View meters are designed to mount in any position with no straight pipe runs required. 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 psi 14 12 10 8 6 4 2 0 Flow-GPM Head Ft. in. 30 350 300 250 200 150 100 50 0 25 20 15 10 5 0 18.0 7.0 10.0 4.0 16.0 28.0 Approximate Pressure Drop in Flowmeter with Water Select Curve to Match Maximum Flow Rate of Appropriate Model Optional † MOST POPULAR MODELS HIGHLIGHTED!
