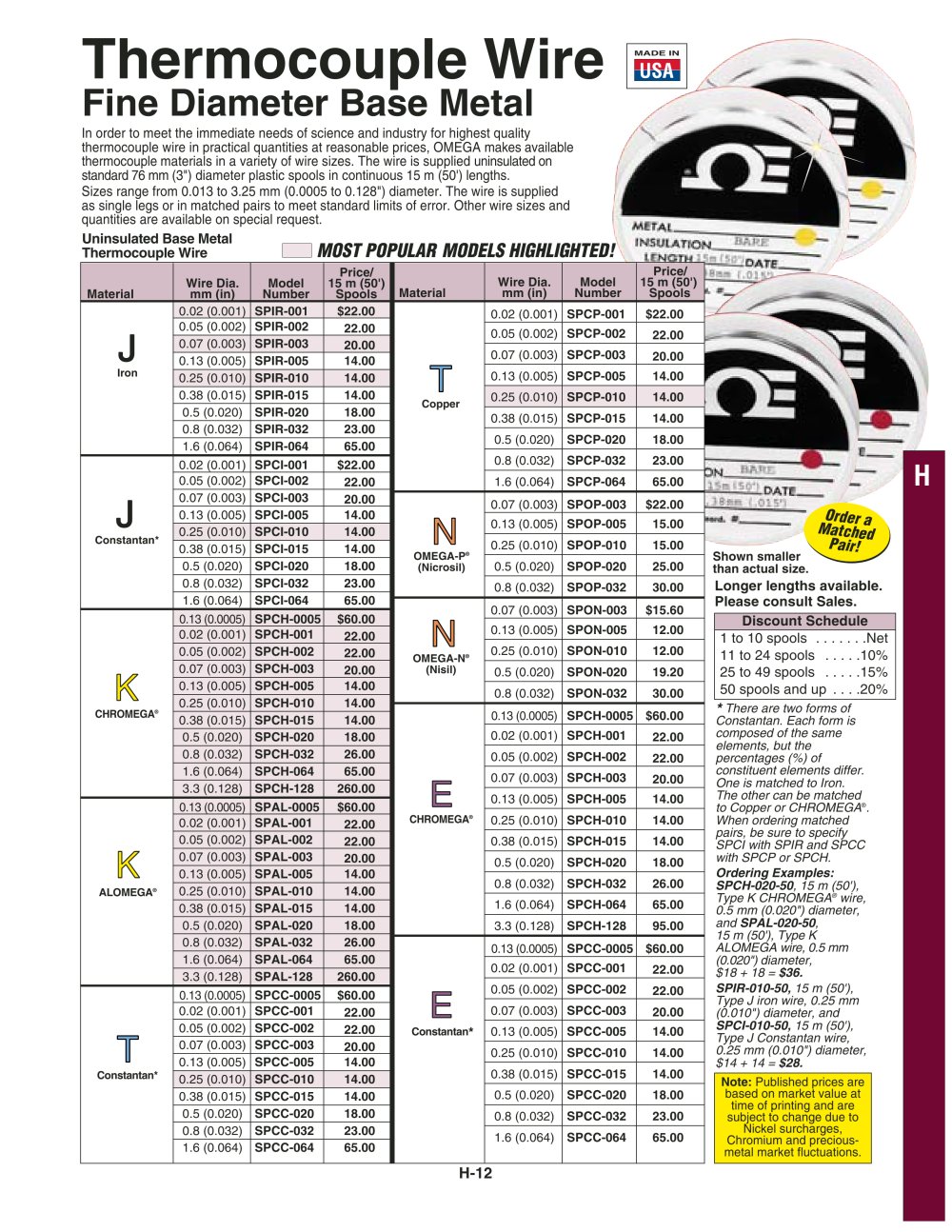

Shown smaller than actual size. H-12 H Uninsulated Base Metal Thermocouple Wire * There are two forms of Constantan. Each form is composed of the same elements, but the percentages (%) of constituent elements differ. One is matched to Iron. The other can be matched to Copper or CHROMEGA®. When ordering matched pairs, be sure to specify SPCI with SPIR and SPCC with SPCP or SPCH. Ordering Examples: SPCH-020-50, 15 m (50'), Type K CHROMEGA® wire, 0.5 mm (0.020") diameter, and SPAL-020-50, 15 m (50'), Type K ALOMEGA wire, 0.5 mm (0.020") diameter, $18 + 18 = $36. SPIR-010-50, 15 m (50'), Type J iron wire, 0.25 mm (0.010") diameter, and SPCI-010-50, 15 m (50'), Type J Constantan wire, 0.25 mm (0.010") diameter, $14 + 14 = $28. Longer lengths available. Please consult Sales. Discount Schedule 1 to 10 spools . . . . . . .Net 11 to 24 spools . . . . .10% 25 to 49 spools . . . . .15% 50 spools and up . . . .20% Iron Constantan* OMEGA-P® (Nicrosil) OMEGA-N® (Nisil) Constantan* Copper CHROMEGA® Constantan* CHROMEGA® ALOMEGA® Thermocouple Wire Fine Diameter Base Metal MOST POPULAR MODELS HIGHLIGHTED! In order to meet the immediate needs of science and industry for highest quality thermocouple wire in practical quantities at reasonable prices, OMEGA makes available thermocouple materials in a variety of wire sizes. The wire is supplied uninsulated on standard 76 mm (3") diameter plastic spools in continuous 15 m (50') lengths. Sizes range from 0.013 to 3.25 mm (0.0005 to 0.128") diameter. The wire is supplied as single legs or in matched pairs to meet standard limits of error. Other wire sizes and quantities are available on special request. Order a Matched Pair! Note: Published prices are based on market value at time of printing and are subject to change due to Nickel surcharges, Chromium and preciousmetal market fluctuations. Price/ Wire Dia. Model 15 m (50') Material mm (in) Number Spools 0.02 (0.001) SPIR-001 $22.00 0.05 (0.002) SPIR-002 22.00 0.07 (0.003) SPIR-003 20.00 0.13 (0.005) SPIR-005 14.00 0.25 (0.010) SPIR-010 14.00 0.38 (0.015) SPIR-015 14.00 0.5 (0.020) SPIR-020 18.00 0.8 (0.032) SPIR-032 23.00 1.6 (0.064) SPIR-064 65.00 0.02 (0.001) SPCI-001 $22.00 0.05 (0.002) SPCI-002 22.00 0.07 (0.003) SPCI-003 20.00 0.13 (0.005) SPCI-005 14.00 0.25 (0.010) SPCI-010 14.00 0.38 (0.015) SPCI-015 14.00 0.5 (0.020) SPCI-020 18.00 0.8 (0.032) SPCI-032 23.00 1.6 (0.064) SPCI-064 65.00 0.13 (0.0005) SPCH-0005 $60.00 0.02 (0.001) SPCH-001 22.00 0.05 (0.002) SPCH-002 22.00 0.07 (0.003) SPCH-003 20.00 0.13 (0.005) SPCH-005 14.00 0.25 (0.010) SPCH-010 14.00 0.38 (0.015) SPCH-015 14.00 0.5 (0.020) SPCH-020 18.00 0.8 (0.032) SPCH-032 26.00 1.6 (0.064) SPCH-064 65.00 3.3 (0.128) SPCH-128 260.00 0.13 (0.0005) SPAL-0005 $60.00 0.02 (0.001) SPAL-001 22.00 0.05 (0.002) SPAL-002 22.00 0.07 (0.003) SPAL-003 20.00 0.13 (0.005) SPAL-005 14.00 0.25 (0.010) SPAL-010 14.00 0.38 (0.015) SPAL-015 14.00 0.5 (0.020) SPAL-020 18.00 0.8 (0.032) SPAL-032 26.00 1.6 (0.064) SPAL-064 65.00 3.3 (0.128) SPAL-128 260.00 0.13 (0.0005) SPCC-0005 $60.00 0.02 (0.001) SPCC-001 22.00 0.05 (0.002) SPCC-002 22.00 0.07 (0.003) SPCC-003 20.00 0.13 (0.005) SPCC-005 14.00 0.25 (0.010) SPCC-010 14.00 0.38 (0.015) SPCC-015 14.00 0.5 (0.020) SPCC-020 18.00 0.8 (0.032) SPCC-032 23.00 1.6 (0.064) SPCC-064 65.00 Price/ Wire Dia. Model 15 m (50') Material mm (in) Number Spools 0.02 (0.001) SPCP-001 $22.00 0.05 (0.002) SPCP-002 22.00 0.07 (0.003) SPCP-003 20.00 0.13 (0.005) SPCP-005 14.00 0.25 (0.010) SPCP-010 14.00 0.38 (0.015) SPCP-015 14.00 0.5 (0.020) SPCP-020 18.00 0.8 (0.032) SPCP-032 23.00 1.6 (0.064) SPCP-064 65.00 0.07 (0.003) SPOP-003 $22.00 0.13 (0.005) SPOP-005 15.00 0.25 (0.010) SPOP-010 15.00 0.5 (0.020) SPOP-020 25.00 0.8 (0.032) SPOP-032 30.00 0.07 (0.003) SPON-003 $15.60 0.13 (0.005) SPON-005 12.00 0.25 (0.010) SPON-010 12.00 0.5 (0.020) SPON-020 19.20 0.8 (0.032) SPON-032 30.00 0.13 (0.0005) SPCH-0005 $60.00 0.02 (0.001) SPCH-001 22.00 0.05 (0.002) SPCH-002 22.00 0.07 (0.003) SPCH-003 20.00 0.13 (0.005) SPCH-005 14.00 0.25 (0.010) SPCH-010 14.00 0.38 (0.015) SPCH-015 14.00 0.5 (0.020) SPCH-020 18.00 0.8 (0.032) SPCH-032 26.00 1.6 (0.064) SPCH-064 65.00 3.3 (0.128) SPCH-128 95.00 0.13 (0.0005) SPCC-0005 $60.00 0.02 (0.001) SPCC-001 22.00 0.05 (0.002) SPCC-002 22.00 0.07 (0.003) SPCC-003 20.00 0.13 (0.005) SPCC-005 14.00 0.25 (0.010) SPCC-010 14.00 0.38 (0.015) SPCC-015 14.00 0.5 (0.020) SPCC-020 18.00 0.8 (0.032) SPCC-032 23.00 1.6 (0.064) SPCC-064 65.00
