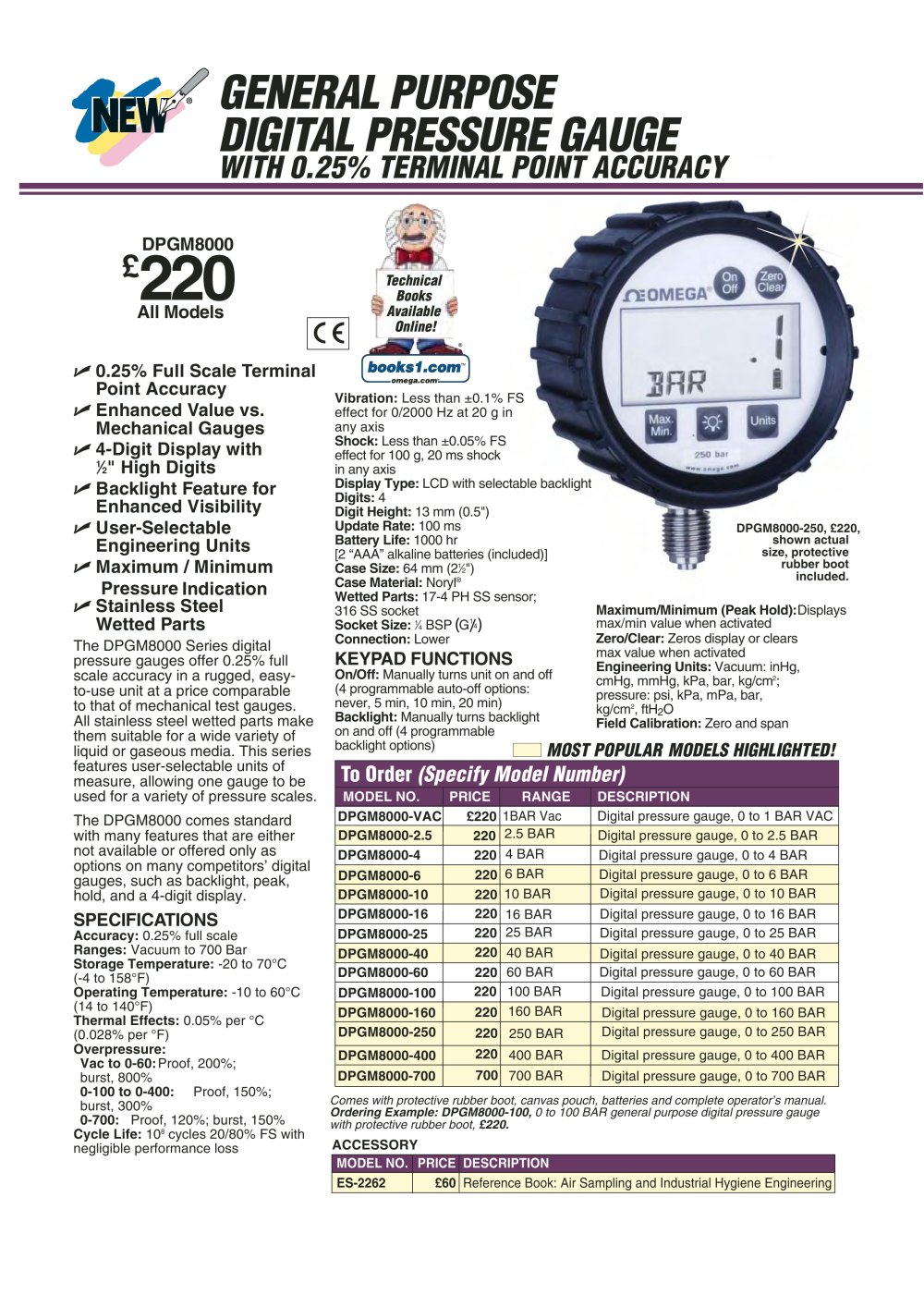

GENERAL PURPOSE
DIGITAL PRESSURE GAUGE
WITH 0.25% TERMINAL POINT ACCURACY
DPGM8000-250, £220,
shown actual
size, protective
rubber boot
included.
Vibration: Less than ±0.1% FS
effect for 0/2000 Hz at 20 g in
any axis
Shock: Less than ±0.05% FS
effect for 100 g, 20 ms shock
in any axis
Display Type: LCD with selectable backlight
Digits: 4
Digit Height: 13 mm (0.5")
Update Rate: 100 ms
Battery Life: 1000 hr
[2 “AAA” alkaline batteries (included)]
Case Size: 64 mm (212")
Case Material: Noryl®
Wetted Parts: 17-4 PH SS sensor;
316 SS socket
Socket Size: 14 BSP G
Connection: Lower
KEYPAD FUNCTIONS
On/Off: Manually turns unit on and off
(4 programmable auto-off options:
never, 5 min, 10 min, 20 min)
Backlight: Manually turns backlight
on and off (4 programmable
backlight options)
SPECIFICATIONS
Accuracy: 0.25% full scale
Ranges: Vacuum to 700 Bar
Storage Temperature: -20 to 70°C
(-4 to 158°F)
Operating Temperature: -10 to 60°C
(14 to 140°F)
Thermal Effects: 0.05% per °C
(0.028% per °F)
Overpressure:
Vac to 0-60:Proof, 200%;
burst, 800%
0-100 to 0-400: Proof, 150%;
burst, 300%
0-700: Proof, 120%; burst, 150%
Cycle Life: 108 cycles 20/80% FS with
negligible performance loss
0.25% Full Scale Terminal
Point Accuracy
Enhanced Value vs.
Mechanical Gauges
4-Digit Display with
12" High Digits
Backlight Feature for
Enhanced Visibility
User-Selectable
Engineering Units
Maximum / Minimum
Pressure Indication
Stainless Steel
Wetted Parts
The DPGM8000 Series digital
pressure
gauges offer 0.25% full
scale accuracy in a rugged, easyto-
use unit at a price comparable
to that of mechanical test
gauges.
All stainless steel wetted parts make
them suitable for a wide variety of
liquid or gaseous media. This series
features user-selectable units of
measure, allowing one gauge to be
used for a variety of pressure scales.
The DPGM8000 comes standard
with many features that are either
not available or offered only as
options on many competitors’ digital
gauges, such as backlight, peak,
hold, and a 4-digit display.
To Order (Specify Model Number)
MODEL NO. PRICE RANGE DESCRIPTION
DPGM8000-VAC £220 1BAR Vac Digital pressure gauge, 0 to 1 BAR VAC
DPGM8000-2.5 Digital pressure gauge, 0 to 2.5 BAR
DPGM8000-4 Digital pressure gauge, 0 to 4 BAR
DPGM8000-6 Digital pressure gauge, 0 to 6 BAR
DPGM8000-10 Digital pressure gauge, 0 to 10 BAR
DPGM8000-16 Digital pressure gauge, 0 to 16 BAR
DPGM8000-25 Digital pressure gauge, 0 to 25 BAR
DPGM8000-40 Digital pressure gauge, 0 to 40 BAR
DPGM8000-60 Digital pressure gauge, 0 to 60 BAR
DPGM8000-100 Digital pressure gauge, 0 to 100 BAR
DPGM8000-160 Digital pressure gauge, 0 to 160 BAR
DPGM8000-250 Digital pressure gauge, 0 to 250 BAR
Comes with protective rubber boot, canvas pouch, batteries and complete operator’s manual.
Ordering Example: DPGM8000-100 , 0 to 100 BAR general purpose digital pressure gauge
with protective rubber boot, £220.
DPGM8000
£220 All Models
MOST POPULAR MODELS HIGHLIGHTED!
MODEL NO. PRICE DESCRIPTION
ES-2262 £60 Reference Book: Air Sampling and Industrial Hygiene Engineering
ACCESSORY
Maximum/Minimum (Peak Hold):Displays
max/min value when activated
Zero/Clear: Zeros display or clears
max value when activated
Engineering Units: Vacuum: inHg,
cmHg, mmHg, kPa, bar, kg/cm2;
pressure: psi, kPa, mPa, bar,
kg/cm2, ftH2O
Field Calibration: Zero and span
1
( /4)
2.5 BAR
4 BAR
6 BAR
10 BAR
16 BAR
25 BAR
40 BAR
60 BAR
100 BAR
160 BAR
250 BAR
220
220
220
220
220
220
220
220
220
220
220
DPGM8000-400 220 400 BAR Digital pressure gauge, 0 to 400 BAR
DPGM8000-700 700 700 BAR Digital pressure gauge, 0 to 700 BAR
