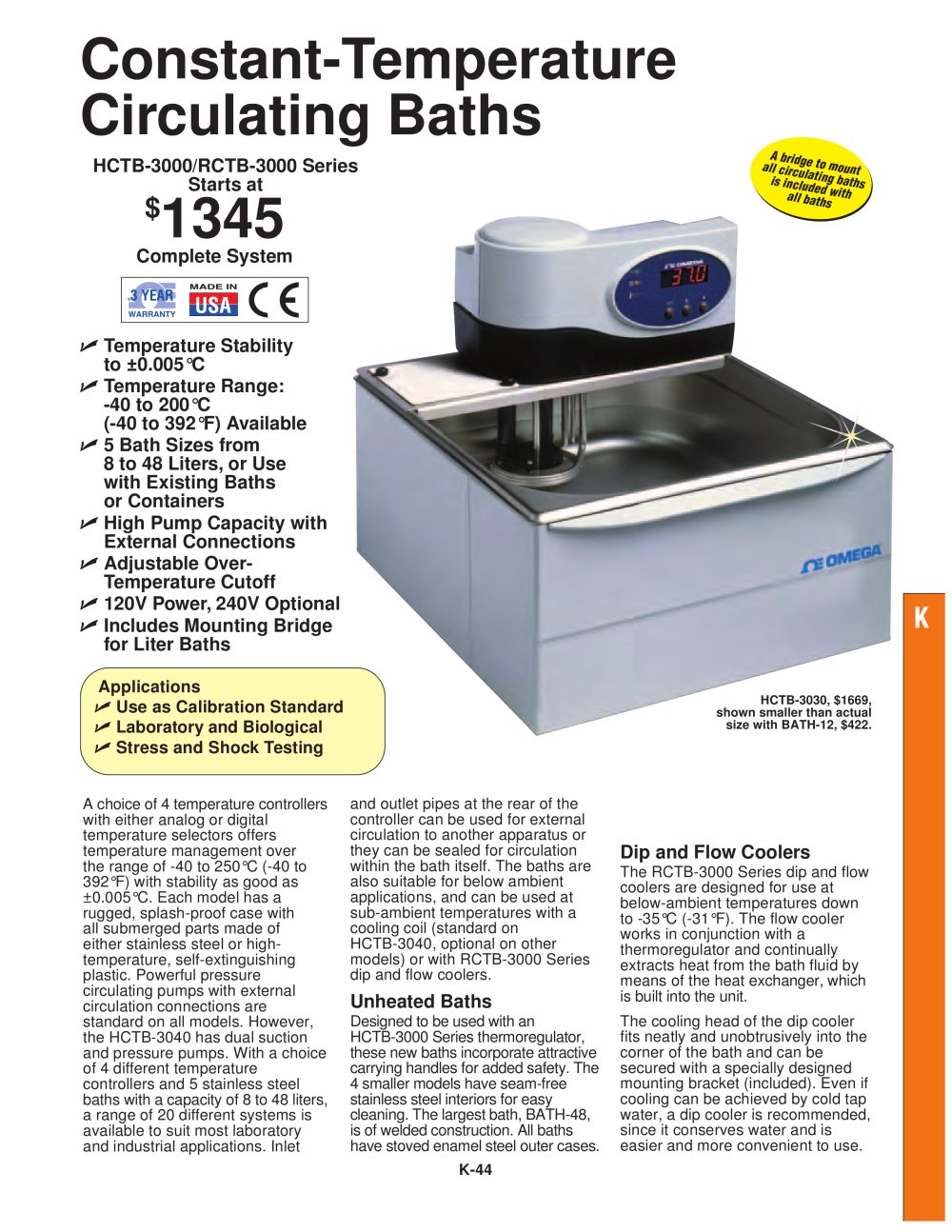

Constant Temperature Liquid Circulating Baths HCTB-3000 and RCTB-3000 Series - OMEGA - #1

Text version of the page

K Constant-Temperature Circulating Baths A choice of 4 temperature controllers with either analog or digital temperature selectors offers temperature management over the range of -40 to 250°C (-40 to 392°F) with stability as good as ±0.005°C. Each model has a rugged, splash-proof case with all submerged parts made of either stainless steel or hightemperature, self-extinguishing plastic. Powerful pressure circulating pumps with external circulation connections are standard on all models. However, the HCTB-3040 has dual suction and pressure pumps. With a choice of 4 different temperature controllers and 5 stainless steel baths with a capacity of 8 to 48 liters, a range of 20 different systems is available to suit most laboratory and industrial applications. Inlet HCTB-3000/RCTB-3000 Series Starts at $1345 Complete System HCTB-3030, $1669, shown smaller than actual size with BATH-12, $422. and outlet pipes at the rear of the controller can be used for external circulation to another apparatus or they can be sealed for circulation within the bath itself. The baths are also suitable for below ambient applications, and can be used at sub-ambient temperatures with a cooling coil (standard on HCTB-3040, optional on other models) or with RCTB-3000 Series dip and flow coolers. Unheated Baths Designed to be used with an HCTB-3000 Series thermoregulator, these new baths incorporate attractive carrying handles for added safety. The 4 smaller models have seam-free stainless steel interiors for easy cleaning. The largest bath, BATH-48, is of welded construction. All baths have stoved enamel steel outer cases. Dip and Flow Coolers The RCTB-3000 Series dip and flow coolers are designed for use at below-ambient temperatures down to -35°C (-31°F). The flow cooler works in conjunction with a thermoregulator and continually extracts heat from the bath fluid by means of the heat exchanger, which is built into the unit. The cooling head of the dip cooler fits neatly and unobtrusively into the corner of the bath and can be secured with a specially designed mounting bracket (included). Even if cooling can be achieved by cold tap water, a dip cooler is recommended, since it conserves water and is easier and more convenient to use.  Temperature Stability to ±0.005°C  Temperature Range: -40 to 200°C (-40 to 392°F) Available  5 Bath Sizes from 8 to 48 Liters, or Use with Existing Baths or Containers  High Pump Capacity with External Connections  Adjustable Over- Temperature Cutoff  120V Power, 240V Optional  Includes Mounting Bridge for Liter Baths Applications  Use as Calibration Standard  Laboratory and Biological  Stress and Shock Testing A bridge to mount all circulating baths is included with all baths K-44
