NOTE: Circuit board shown for reference only. Not
included with connectors.
Standard
Miniature
4.1 (0.16)
7.9
(0.31)
15.5
(0.61)
4.8
(0.80)
2.8 (0.11)
4.1 (0.16)
4.1 (0.16)
1.8 (0.07)
17.8 (0.70)
8.1 (0.32)
4.1 (0.16)
4.1 (0.16)
7.4
(0.29) Dia.
8.1 (0.32) DIA
11.2
(0.44)
19.3
(0.76)
7.9
(0.31)
10.2
(0.40)
8.9
(0.35)
10.9
(0.43)
1.8
(0.07) 4 PLACES
13.7
(0.54)
13.5
(0.53)
15.8
(0.62)
1.8
(0.07) 4 PLACES
Optional Transistor
Retainer Clip

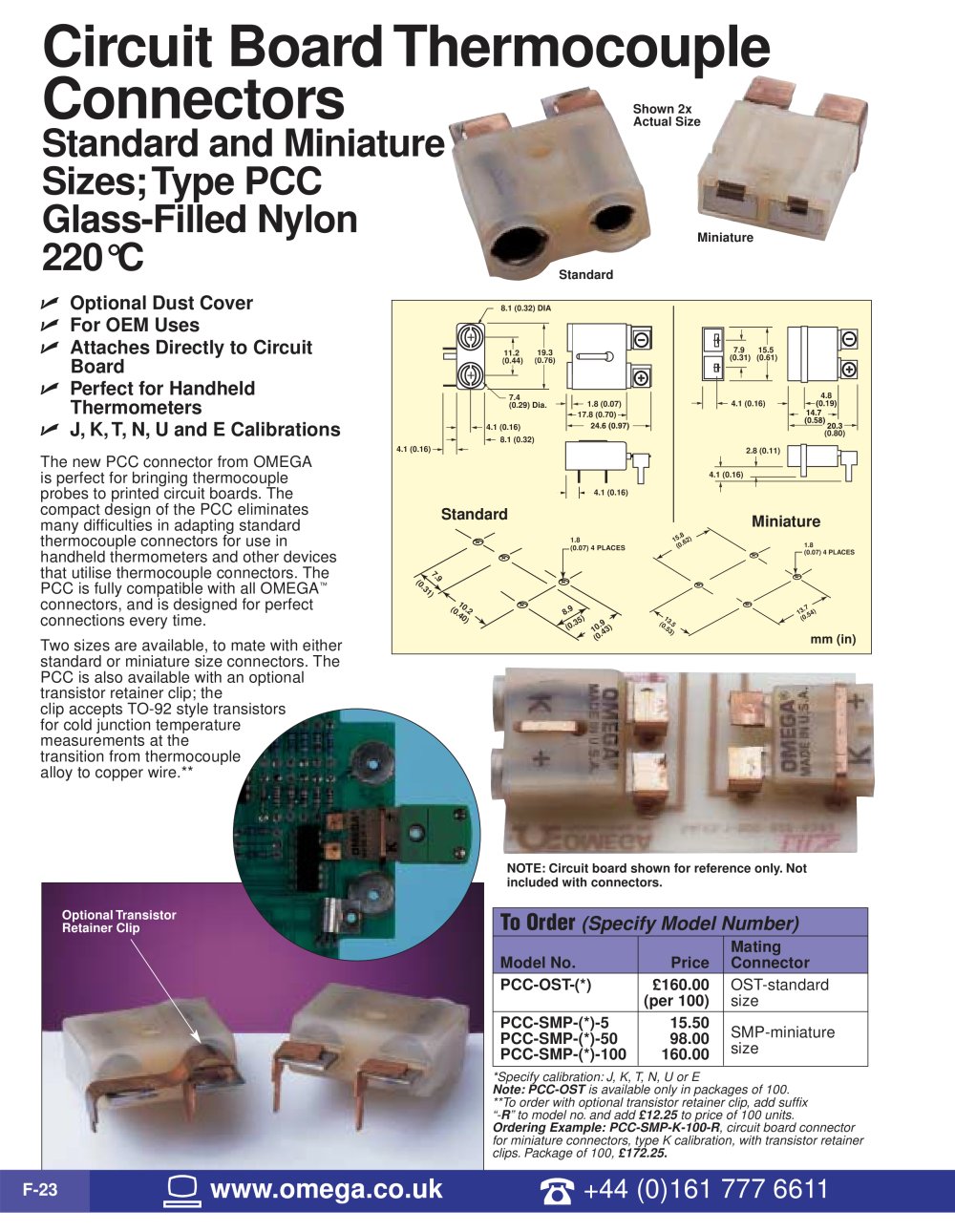

Circuit Board Thermocouple
Connectors
Standard and Miniature
Sizes;Type PCC
Glass-Filled Nylon
220°C
The new PCC connector from OMEGA
is perfect for bringing thermocouple
probes to printed circuit boards. The
compact design of the PCC eliminates
many difficulties in adapting standard
thermocouple connectors for use in
handheld thermometers and other devices
that utilise thermocouple connectors. The
PCC is fully compatible with all OMEGA™
connectors, and is designed for perfect
connections every time.
Two sizes are available, to mate with either
standard or miniature size connectors. The
PCC is also available with an optional
transistor retainer clip; the
clip accepts TO-92 style transistors
for cold junction temperature
measurements at the
transition from thermocouple
alloy to copper wire.**
Optional Dust Cover
For OEM Uses
Attaches Directly to Circuit
Board
Perfect for Handheld
Thermometers
J, K,T, N, U and E Calibrations
Shown 2x
Actual Size
Standard Miniature
mm (in)
To Order (Specify Model Number)
Mating
Model No. Price Connector
PCC-OST-(*) £160.00 OST-standard
(per 100) size
PCC-SMP-(*)-5 15.50
PCC-SMP-(*)-50 98.00 SMP-miniature
PCC-SMP-(*)-100 160.00 size
*Specify calibration: J, K, T, N, U or E
Note: PCC-OST is available only in packages of 100.
**To order with optional transistor retainer clip, add suffix
“-R” to model no. and add £12.25 to price of 100 units.
Ordering Example: PCC-SMP-K-100-R, circuit board connector
for miniature connectors, type K calibration, with transistor retainer
clips. Package of 100, £172.25.
F-23 www.omega.co.uk +44 (0)161 777 6611
