Ceramic Insulated Finned Strip Heaters FSH Series

Ceramic Insulated Finned Strip Heaters FSH Series
2Pages

Catalog excerpts

Ceramic Insulated Finned Strip Heaters FSH Series - 1

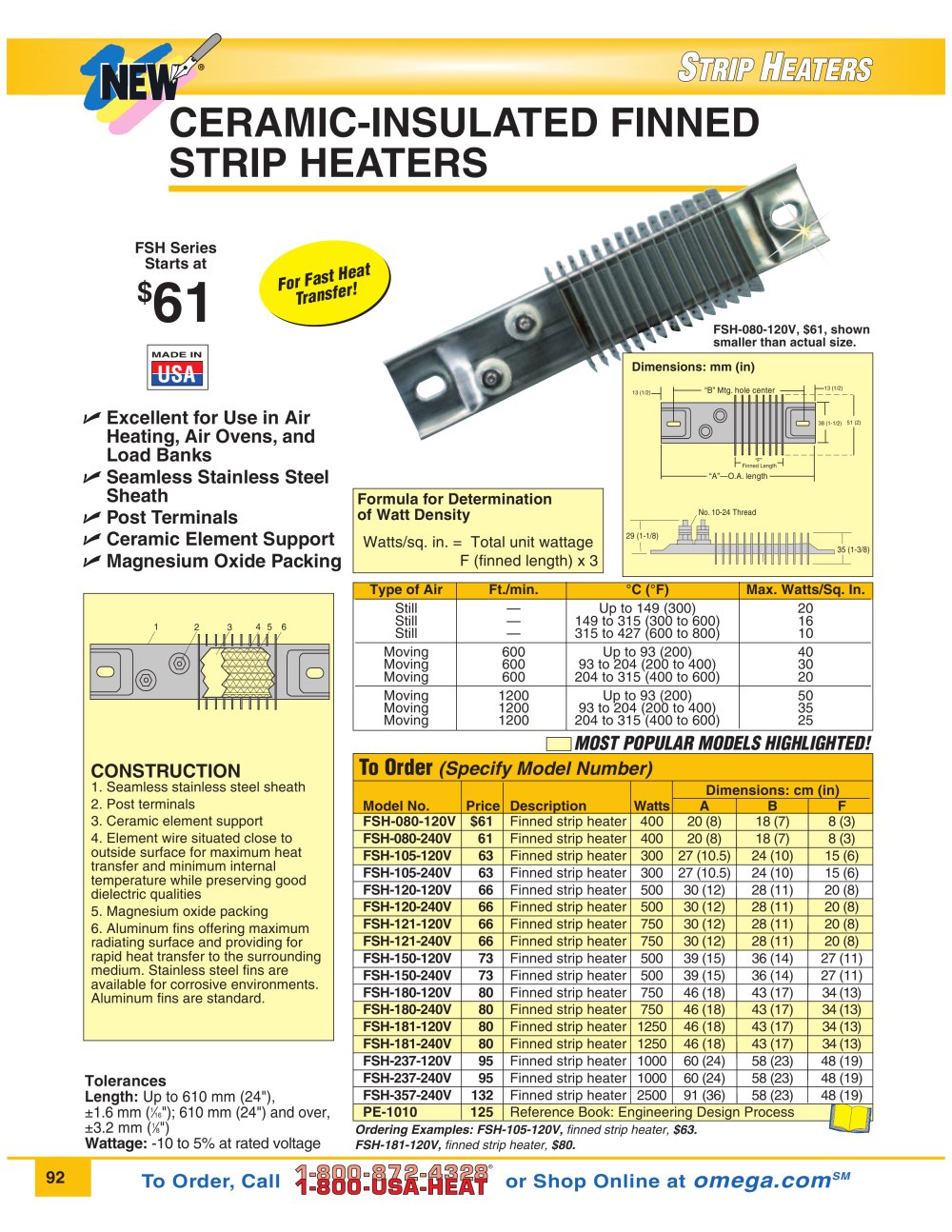

92 To Order, Call or Shop Online at omega.comSM ® MOST POPULAR MODELS HIGHLIGHTED! Type of Air Ft./min. °C (°F) Max. Watts/Sq. In. Still — Up to 149 (300) 20 Still — 149 to 315 (300 to 600) 16 Still — 315 to 427 (600 to 800) 10 Moving 600 Up to 93 (200) 40 Moving 600 93 to 204 (200 to 400) 30 Moving 600 204 to 315 (400 to 600) 20 Moving 1200 Up to 93 (200) 50 Moving 1200 93 to 204 (200 to 400) 35 Moving 1200 204 to 315 (400 to 600) 25 Tolerances Length: Up to 610 mm (24"), ±1.6 mm (116"); 610 mm (24") and over, ±3.2 mm (18") Wattage: -10 to 5% at rated voltage Ordering Examples: FSH-105-120V, finned strip heater, $63. FSH-181-120V, finned strip heater, $80. Watts/sq. in. = Total unit wattage F (finned length) x 3 Formula for Determination of Watt Density CERAMIC-INSULATED FINNED STRIP HEATERS FSH Series Starts at $61 Excellent for Use in Air Heating, Air Ovens, and Load Banks Seamless Stainless Steel Sheath Post Terminals Ceramic Element Support Magnesium Oxide Packing FSH-080-120V, $61, shown smaller than actual size. 1 2 3 4 5 6 CONSTRUCTION 1. Seamless stainless steel sheath 2. Post terminals 3. Ceramic element support 4. Element wire situated close to outside surface for maximum heat transfer and minimum internal temperature while preserving good dielectric qualities 5. Magnesium oxide packing 6. Aluminum fins offering maximum radiating surface and providing for rapid heat transfer to the surrounding medium. Stainless steel fins are available for corrosive environments. Aluminum fins are standard. To Order (Specify Model Number) Dimensions: cm (in) Model No. Price Description Watts A B F FSH-080-120V $61 Finned strip heater 400 20 (8) 18 (7) 8 (3) FSH-080-240V 61 Finned strip heater 400 20 (8) 18 (7) 8 (3) FSH-105-120V 63 Finned strip heater 300 27 (10.5) 24 (10) 15 (6) FSH-105-240V 63 Finned strip heater 300 27 (10.5) 24 (10) 15 (6) FSH-120-120V 66 Finned strip heater 500 30 (12) 28 (11) 20 (8) FSH-120-240V 66 Finned strip heater 500 30 (12) 28 (11) 20 (8) FSH-121-120V 66 Finned strip heater 750 30 (12) 28 (11) 20 (8) FSH-121-240V 66 Finned strip heater 750 30 (12) 28 (11) 20 (8) FSH-150-120V 73 Finned strip heater 500 39 (15) 36 (14) 27 (11) FSH-150-240V 73 Finned strip heater 500 39 (15) 36 (14) 27 (11) FSH-180-120V 80 Finned strip heater 750 46 (18) 43 (17) 34 (13) FSH-180-240V 80 Finned strip heater 750 46 (18) 43 (17) 34 (13) FSH-181-120V 80 Finned strip heater 1250 46 (18) 43 (17) 34 (13) FSH-181-240V 80 Finned strip heater 1250 46 (18) 43 (17) 34 (13) FSH-237-120V 95 Finned strip heater 1000 60 (24) 58 (23) 48 (19) FSH-237-240V 95 Finned strip heater 1000 60 (24) 58 (23) 48 (19) FSH-357-240V 132 Finned strip heater 2500 91 (36) 58 (23) 48 (19) PE-1010 125 Reference Book: Engineering Design Process “B” Mtg. hole center 38 (1-1/2) “F” Finned Length “A”—O.A. length 13 (1/2) 13 (1/2) 51 (2) Dimensions: mm (in) For Fast Heat Transfer! 29 (1-1/8) 35 (1-3/8) No. 10-24 Thread
