beam load cells LCM501 and LCM511 Series - OMEGA - #1

Text version of the page

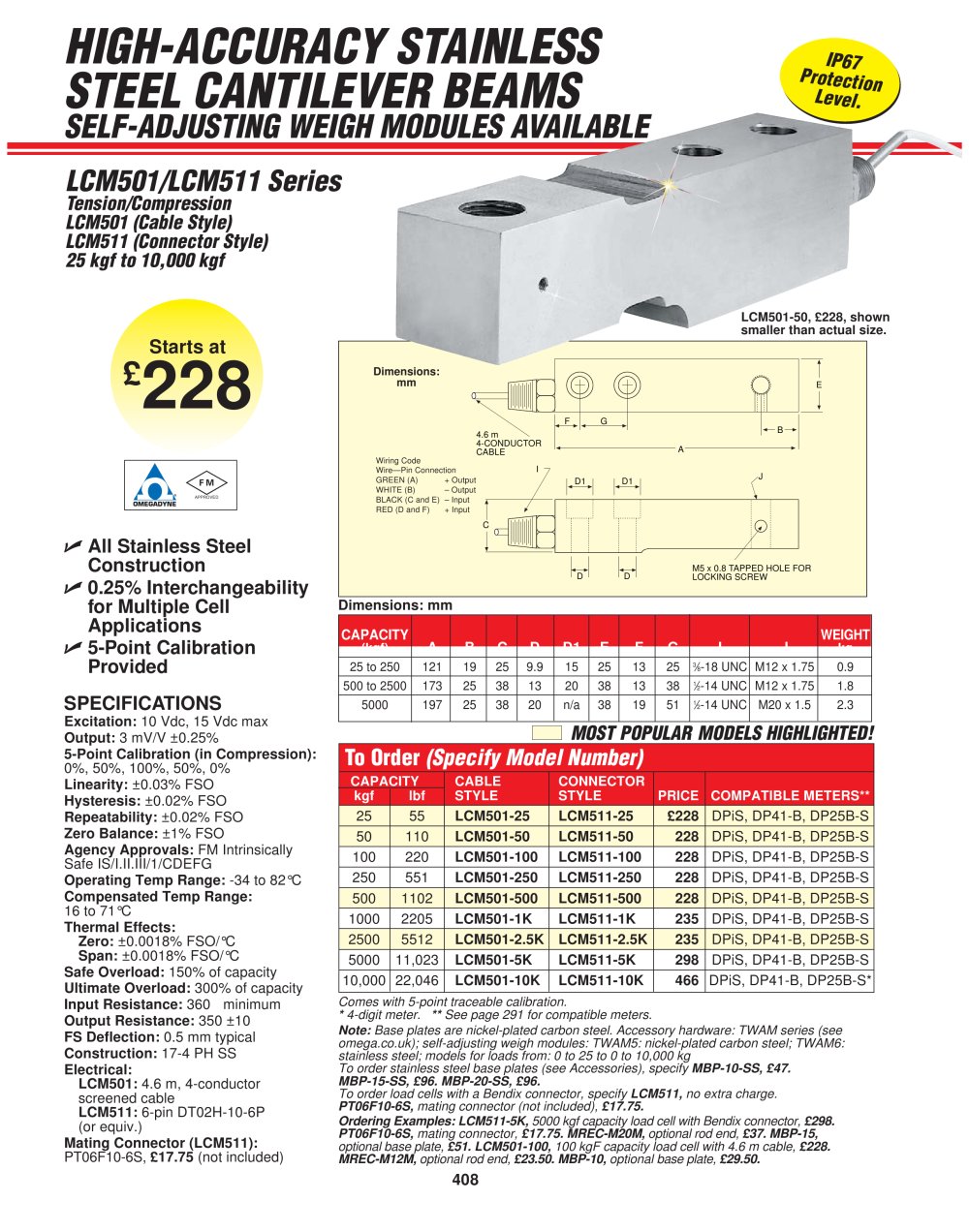

408 A F G B E M5 x 0.8 TAPPED HOLE FOR LOCKING SCREW D1 D1 J I C D D 4.6 m 4-CONDUCTOR CABLE Wiring Code Wire—Pin Connection GREEN (A) + Output WHITE (B) – Output BLACK (C and E) – Input RED (D and F) + Input  All Stainless Steel Construction  0.25% Interchangeability for Multiple Cell Applications  5-Point Calibration Provided LCM501/LCM511 Series Tension/Compression LCM501 (Cable Style) LCM511 (Connector Style) 25 kgf to 10,000 kgf LCM501-50, £228, shown smaller than actual size. SPECIFICATIONS Excitation: 10 Vdc, 15 Vdc max Output: 3 mV/V ±0.25% 5-Point Calibration (in Compression): 0%, 50%, 100%, 50%, 0% Linearity: ±0.03% FSO Hysteresis: ±0.02% FSO Repeatability: ±0.02% FSO Zero Balance: ±1% FSO Agency Approvals: FM Intrinsically Safe IS/I.II.III/1/CDEFG Operating Temp Range: -34 to 82°C Compensated Temp Range: 16 to 71°C Thermal Effects: Zero: ±0.0018% FSO/°C Span: ±0.0018% FSO/°C Safe Overload: 150% of capacity Ultimate Overload: 300% of capacity Input Resistance: 360 minimum Output Resistance: 350 ±10 FS Deflection: 0.5 mm typical Construction: 17-4 PH SS Electrical: LCM501: 4.6 m, 4-conductor screened cable LCM511: 6-pin DT02H-10-6P (or equiv.) Mating Connector (LCM511): PT06F10-6S, £17.75 (not included) HIGH-ACCURACY STAINLESS STEEL CANTILEVER BEAMS SELF-ADJUSTING WEIGH MODULES AVAILABLE Starts at £228 Dimensions: mm CAPACITY WEIGHT (kgf) A B C D D1 E F G I J kg 25 to 250 121 19 25 9.9 15 25 13 25 38-18 UNC M12 x 1.75 0.9 500 to 2500 173 25 38 13 20 38 13 38 12-14 UNC M12 x 1.75 1.8 5000 197 25 38 20 n/a 38 19 51 12-14 UNC M20 x 1.5 2.3 Dimensions: mm IP67 Protection Level. Comes with 5-point traceable calibration. * 4-digit meter. ** See page 291 for compatible meters. Note: Base plates are nickel-plated carbon steel. Accessory hardware: TWAM series (see omega.co.uk); self-adjusting weigh modules: TWAM5: nickel-plated carbon steel; TWAM6: stainless steel; models for loads from: 0 to 25 to 0 to 10,000 kg To order stainless steel base plates (see Accessories), specify MBP-10-SS, £47. MBP-15-SS, £96. MBP-20-SS, £96. To order load cells with a Bendix connector, specify LCM511, no extra charge. PT06F10-6S, mating connector (not included), £17.75. Ordering Examples: LCM511-5K, 5000 kgf capacity load cell with Bendix connector, £298. PT06F10-6S, mating connector, £17.75. MREC-M20M, optional rod end, £37. MBP-15, optional base plate, £51. LCM501-100, 100 kgF capacity load cell with 4.6 m cable, £228. MREC-M12M, optional rod end, £23.50. MBP-10, optional base plate, £29.50. To Order (Specify Model Number) CAPACITY CABLE CONNECTOR kgf lbf STYLE STYLE PRICE COMPATIBLE METERS** 25 55 LCM501-25 LCM511-25 £228 DPiS, DP41-B, DP25B-S 50 110 LCM501-50 LCM511-50 228 DPiS, DP41-B, DP25B-S 100 220 LCM501-100 LCM511-100 228 DPiS, DP41-B, DP25B-S 250 551 LCM501-250 LCM511-250 228 DPiS, DP41-B, DP25B-S 500 1102 LCM501-500 LCM511-500 228 DPiS, DP41-B, DP25B-S 1000 2205 LCM501-1K LCM511-1K 235 DPiS, DP41-B, DP25B-S 2500 5512 LCM501-2.5K LCM511-2.5K 235 DPiS, DP41-B, DP25B-S 5000 11,023 LCM501-5K LCM511-5K 298 DPiS, DP41-B, DP25B-S 10,000 22,046 LCM501-10K LCM511-10K 466 DPiS, DP41-B, DP25B-S* MOST POPULAR MODELS HIGHLIGHTED! FM APPROVED
