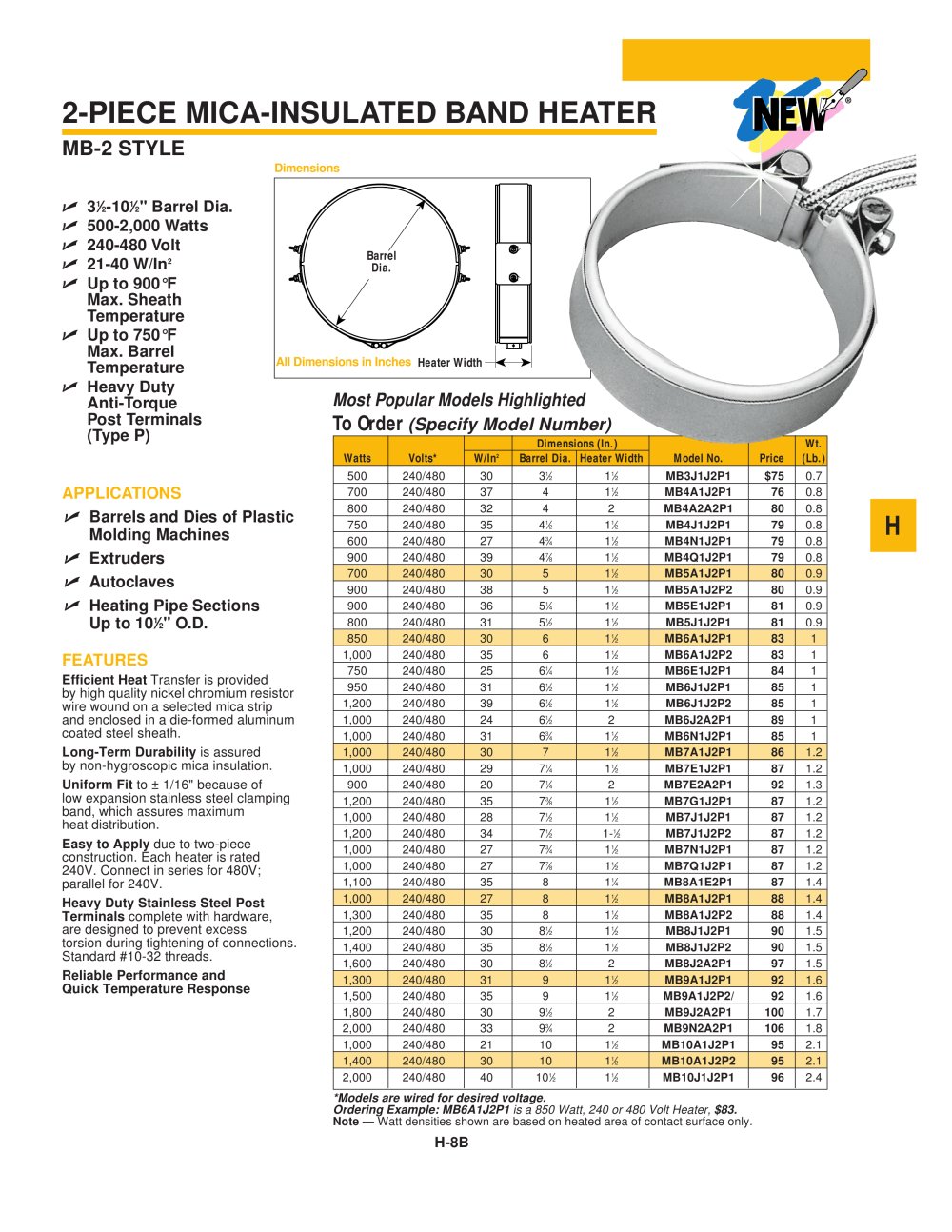

H-8B H U 312-1012" Barrel Dia. U 500-2,000 Watts U 240-480 Volt U 21-40 W/In2 U Up to 900°F Max. Sheath Temperature U Up to 750°F Max. Barrel Temperature U Heavy Duty Anti-Torque Post Terminals (Type P) APPLICATIONS U Barrels and Dies of Plastic Molding Machines U Extruders U Autoclaves U Heating Pipe Sections Up to 1012" O.D. FEATURES Efficient Heat Transfer is provided by high quality nickel chromium resistor wire wound on a selected mica strip and enclosed in a die-formed aluminum coated steel sheath. Long-Term Durability is assured by non-hygroscopic mica insulation. Uniform Fit to ± 1/16" because of low expansion stainless steel clamping band, which assures maximum heat distribution. Easy to Apply due to two-piece construction. Each heater is rated 240V. Connect in series for 480V; parallel for 240V. Heavy Duty Stainless Steel Post Terminals complete with hardware, are designed to prevent excess torsion during tightening of connections. Standard #10-32 threads. Reliable Performance and Quick Temperature Response *Models are wired for desired voltage. Ordering Example: MB6A1J2P1 is a 850 Watt, 240 or 480 Volt Heater, $83. Note —Watt densities shown are based on heated area of contact surface only. To Order (Specify Model Number) 2-PIECE MICA-INSULATED BAND HEATER MB-2 STYLE Dimensions All Dimensions in Inches Barrel Dia. Heater Width Dimensions (In.) Wt. Watts Volts* W/In2 Barrel Dia. Heater Width Model No. Price (Lb.) 500 240/480 30 312 112 MB3J1J2P1 $75 0.7 700 240/480 37 4 112 MB4A1J2P1 76 0.8 800 240/480 32 4 2 MB4A2A2P1 80 0.8 750 240/480 35 412 112 MB4J1J2P1 79 0.8 600 240/480 27 434 112 MB4N1J2P1 79 0.8 900 240/480 39 478 112 MB4Q1J2P1 79 0.8 700 240/480 30 5 112 MB5A1J2P1 80 0.9 900 240/480 38 5 112 MB5A1J2P2 80 0.9 900 240/480 36 514 112 MB5E1J2P1 81 0.9 800 240/480 31 512 112 MB5J1J2P1 81 0.9 850 240/480 30 6 112 MB6A1J2P1 83 1 1,000 240/480 35 6 112 MB6A1J2P2 83 1 750 240/480 25 614 112 MB6E1J2P1 84 1 950 240/480 31 612 112 MB6J1J2P1 85 1 1,200 240/480 39 612 112 MB6J1J2P2 85 1 1,000 240/480 24 612 2 MB6J2A2P1 89 1 1,000 240/480 31 634 112 MB6N1J2P1 85 1 1,000 240/480 30 7 112 MB7A1J2P1 86 1.2 1,000 240/480 29 714 112 MB7E1J2P1 87 1.2 900 240/480 20 714 2 MB7E2A2P1 92 1.3 1,200 240/480 35 738 112 MB7G1J2P1 87 1.2 1,000 240/480 28 712 112 MB7J1J2P1 87 1.2 1,200 240/480 34 712 1-12 MB7J1J2P2 87 1.2 1,000 240/480 27 734 112 MB7N1J2P1 87 1.2 1,000 240/480 27 778 112 MB7Q1J2P1 87 1.2 1,100 240/480 35 8 114 MB8A1E2P1 87 1.4 1,000 240/480 27 8 112 MB8A1J2P1 88 1.4 1,300 240/480 35 8 112 MB8A1J2P2 88 1.4 1,200 240/480 30 812 112 MB8J1J2P1 90 1.5 1,400 240/480 35 812 112 MB8J1J2P2 90 1.5 1,600 240/480 30 812 2 MB8J2A2P1 97 1.5 1,300 240/480 31 9 112 MB9A1J2P1 92 1.6 1,500 240/480 35 9 112 MB9A1J2P2/ 92 1.6 1,800 240/480 30 912 2 MB9J2A2P1 100 1.7 2,000 240/480 33 934 2 MB9N2A2P1 106 1.8 1,000 240/480 21 10 112 MB10A1J2P1 95 2.1 1,400 240/480 30 10 112 MB10A1J2P2 95 2.1 2,000 240/480 40 1012 112 MB10J1J2P1 96 2.4 Most Popular Models Highlighted
