8 Channel Thermocouple Datalogger

8 Channel Thermocouple Datalogger
2Pages

Catalog excerpts

DATA ACQUISITION www.omega.co.uk +44 (0)161 777 6611 R-4 Memory: 14,563 readings/channel Temperature Calibration: Digital calibration is available through software Calibration Date: Automatically recorded within device to alert user when calibration is required Recording Interval: 5 seconds to 12 hours selectable in software Start Time: Start time and date are programmable through software Real-Time Recording: Device can be used with PC to monitor and record data in real time Power: 9 V lithium battery included Battery Life: 1 year typical Time Accuracy: ±1 minute/month when RS-232 port is not in use Data Format: Date and time stamped; °C, °F, °K, °R, mV Computer Interface: PC serial, RS-232C COM or USB (interface cable required) Software: Windows 95/98/NT/2000/XP Operating Environment: -40 to 80°C (-40 to 176°F) 5 to 95% RH non-condensing Dimensions: 38 H x 111 W x 89 mm D (1.5 x 4.4 x 3.5") Weight: 450 g (16 oz) Material: Black anodised aluminium Specifications Internal Channel: 1 Temperature Accuracy: ±0.5°C (0 to 50°C) Temperature Resolution: 0.1°C Temperature Range: -40 to 80°C (-40 to 176°F) Thermocouple Channels: 8 Thermocouple Input Types: J, K, T, E, R, S, B, N Thermocouple Connection: Subminiature female jack Cold Junction Compensation: Automatic External Thermocouple Channel Accuracy* (Uniform 20°C Internal Temperature): J, K, T, E: ±0.5°C; R, S, B, N: ±2.5°C Resolution: J, K, T, E: 0.1°C; R, S, B, N: 0.5°C Temperature Measurement Range: Type J: -210 to 760°C; K: -270 to 1370°C; T: -270 to 400°C; E: -270 to 980°C; R: -50 to 1760°C; S: -50 to 1760°C; B: 50 to 1820°C; N: -270 to 1300°C The OM-CP-OCTTEMP is an 8-channel, battery-powered, standalone, thermocouple-based temperature data logger. This all-in-one compact, portable, easy to use device will measure and record up to 14,563 temperature measurements per channel. The OM-CP-OCTTEMP is a major leap forward in both size and performance. Its real-time clock ensures that all data is time and date stamped. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The data logger’s small size allows it to fit almost anywhere. Data retrieval is simple. Plug it into an available COM port and our easy-to-use software does the rest. The software converts your PC into a real-time strip chart recorder. Data can be printed in graphical and tabular format and can be exported to a text or Microsoft file. To Order (Specify Model Number) Model No. Price Description OM-CP-OCTTEMP £670.00 8-channel, thermocouple-based temperature data logger OM-CP-OCTTEMP-CERT 710.00 8-channel, thermocouple-based temperature data logger with calibration certificate OM-CP-IFC110 66.00 Windows software and 1.2 m (4') RS-232 cable with DB9F termination OM-CP-IFC200 80.00 Windows software and 3.7 m (12') USB interace cable OM-CP-BAT103 13.50 Replacement 9 V lithium battery CS-3791 101.00 Reference Book: Standard Handbook of Electronics Engineering Operator’s manual and RS-232 cable are included with the OM-CP-IFC110 Windows software (required to operate the data logger) is sold separately. Ordering Example: OM-CP-OCTTEMP-CERT, 8-channel, thermocouple-based temperature data logger with calibration certificate, OM-CP-IFC110, Windows software and RS-232 cable, £710 + 66 = £776. 8-Channel Temperature Data Logger Part of the NOMAD® Family OM-CP-OCTTEMP Automatic Cold Junction Compensation Programmable Start Time 8 Thermocouple Channels and 1 Ambient User Calibration Through Software Automatic Thermocouple Linearisation Miniature Size Real-Time Operation * Accuracy does not include errors due to thermocouple. AVAILABLE FOR FAST DELIVERY! OM-CP-OCTTEMP data logger, £670, shown larger than actual size, with KTSS-HH probe, sold separately, £19.50. OM-CP-IFC110, £66, Windows software displays data in graphical or tabular format Temperature version! £670 Basic Unit Plug in up to 8 probes

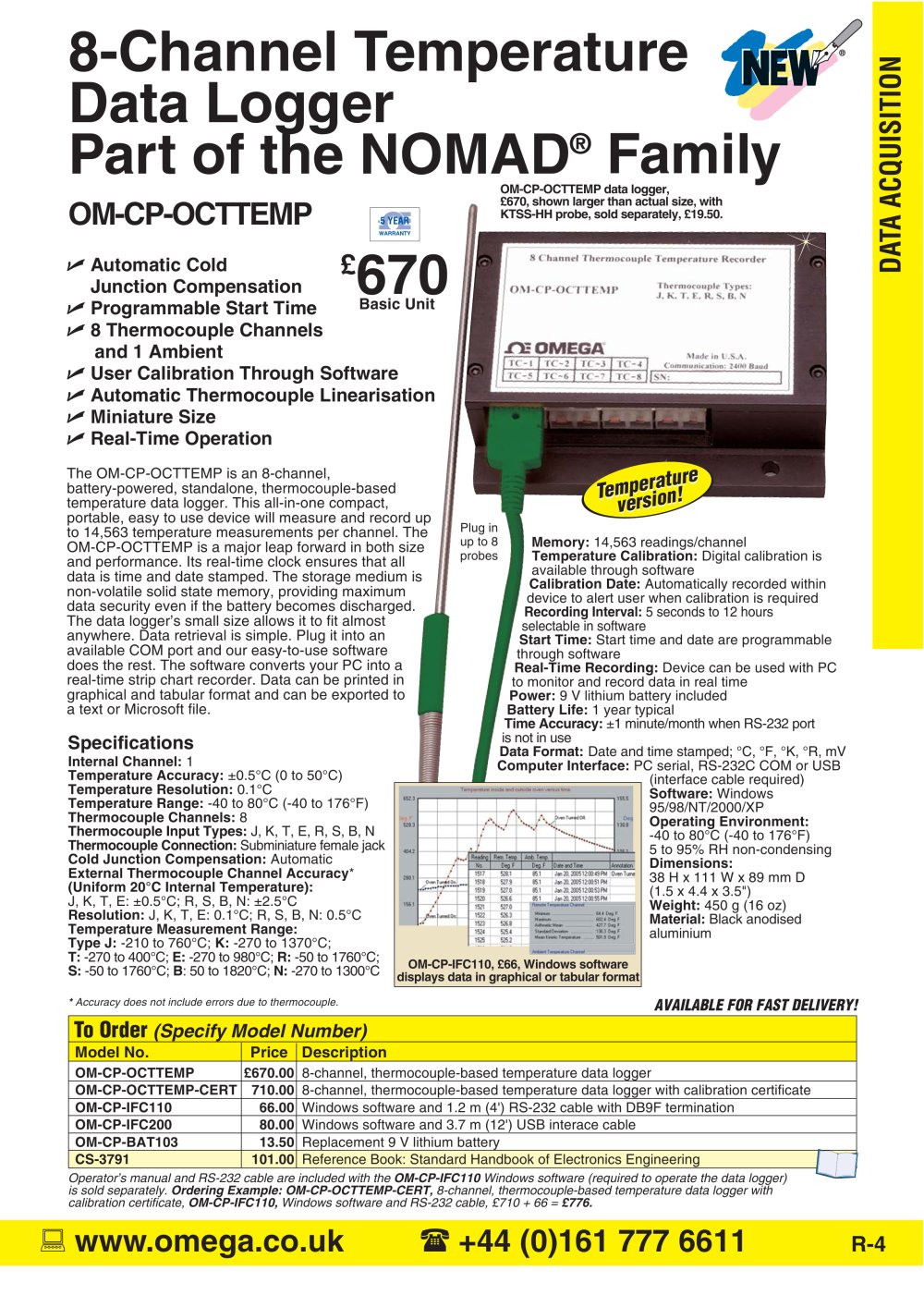

Open the catalog to page 1

Freephone 0800 488 488 | International +44(0) 161 777 6622 | Fax +44(0) 161 777 6622 | Sales@omega.co.uk www.omega.co.uk More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr 088-466-342 BENELUX www.omega.nl 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and Measurement...

Open the catalog to page 2
