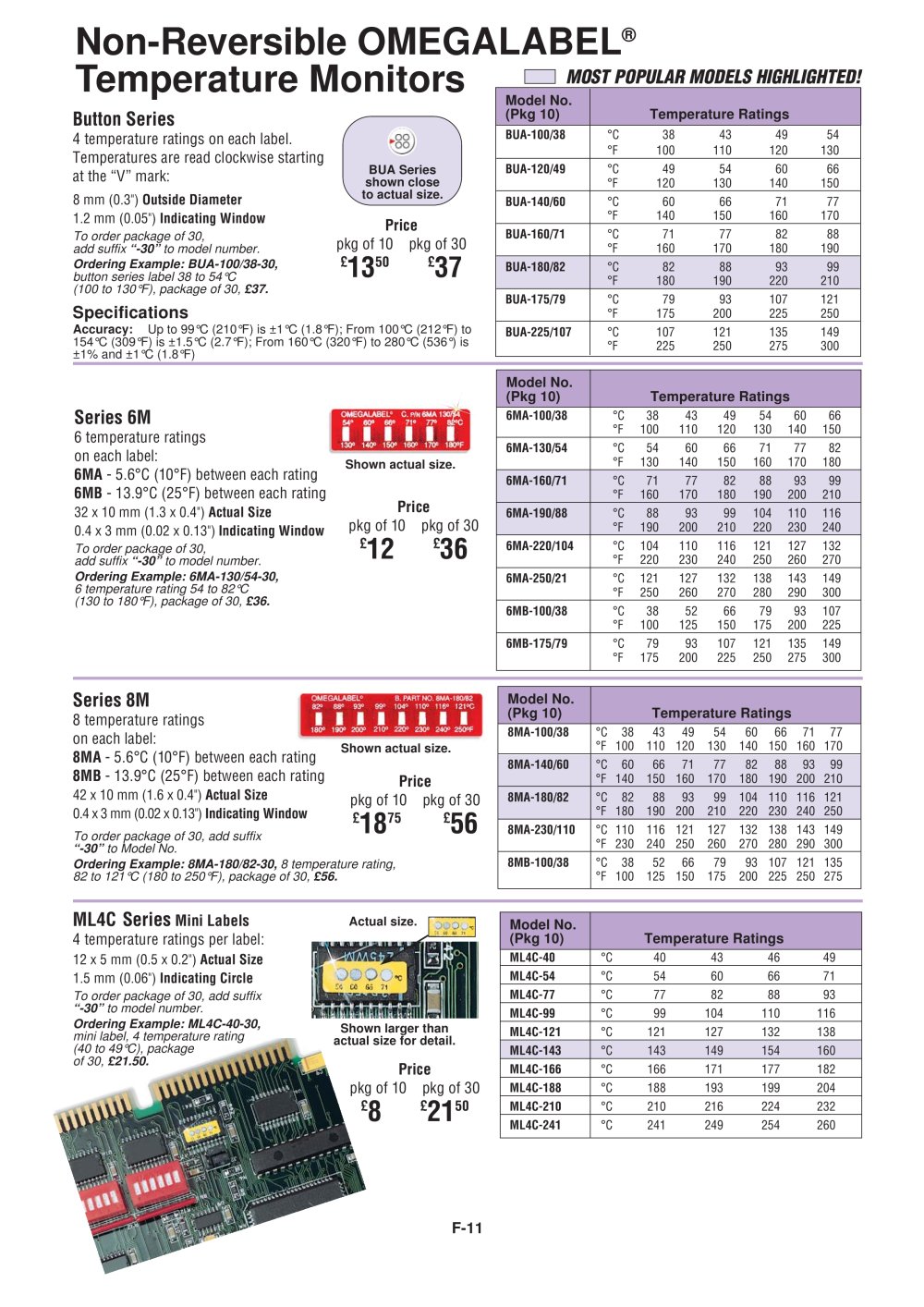

F-11 Model No. (Pkg 10) Temperature Ratings 8MA-100/38 °C 38 43 49 54 60 66 71 77 °F 100 110 120 130 140 150 160 170 8MA-140/60 °C 60 66 71 77 82 88 93 99 °F 140 150 160 170 180 190 200 210 8MA-180/82 °C 82 88 93 99 104 110 116 121 °F 180 190 200 210 220 230 240 250 8MA-230/110 °C 110 116 121 127 132 138 143 149 °F 230 240 250 260 270 280 290 300 8MB-100/38 °C 38 52 66 79 93 107 121 135 °F 100 125 150 175 200 225 250 275 Button Series 4 temperature ratings on each label. Temperatures are read clockwise starting at the “V” mark: 8 mm (0.3") Outside Diameter 1.2 mm (0.05") Indicating Window To order package of 30, add suffix “-30” to model number. Ordering Example: BUA-100/38-30, button series label 38 to 54°C (100 to 130°F), package of 30, £37. Series 6M 6 temperature ratings on each label: 6MA - 5.6°C (10°F) between each rating 6MB - 13.9°C (25°F) between each rating 32 x 10 mm (1.3 x 0.4") Actual Size 0.4 x 3 mm (0.02 x 0.13") Indicating Window To order package of 30, add suffix “-30” to model number. Ordering Example: 6MA-130/54-30, 6 temperature rating 54 to 82°C (130 to 180°F), package of 30, £36. Series 8M 8 temperature ratings on each label: 8MA - 5.6°C (10°F) between each rating 8MB - 13.9°C (25°F) between each rating 42 x 10 mm (1.6 x 0.4") Actual Size 0.4 x 3 mm (0.02 x 0.13") Indicating Window To order package of 30, add suffix “-30” to Model No. Ordering Example: 8MA-180/82-30, 8 temperature rating, 82 to 121°C (180 to 250°F), package of 30, £56. Model No. (Pkg 10) Temperature Ratings BUA-100/38 °C 38 43 49 54 °F 100 110 120 130 BUA-120/49 °C 49 54 60 66 °F 120 130 140 150 BUA-140/60 °C 60 66 71 77 °F 140 150 160 170 BUA-160/71 °C 71 77 82 88 °F 160 170 180 190 BUA-180/82 °C 82 88 93 99 °F 180 190 220 210 BUA-175/79 °C 79 93 107 121 °F 175 200 225 250 BUA-225/107 °C 107 121 135 149 °F 225 250 275 300 Model No. (Pkg 10) Temperature Ratings 6MA-100/38 °C 38 43 49 54 60 66 °F 100 110 120 130 140 150 6MA-130/54 °C 54 60 66 71 77 82 °F 130 140 150 160 170 180 6MA-160/71 °C 71 77 82 88 93 99 °F 160 170 180 190 200 210 6MA-190/88 °C 88 93 99 104 110 116 °F 190 200 210 220 230 240 6MA-220/104 °C 104 110 116 121 127 132 °F 220 230 240 250 260 270 6MA-250/21 °C 121 127 132 138 143 149 °F 250 260 270 280 290 300 6MB-100/38 °C 38 52 66 79 93 107 °F 100 125 150 175 200 225 6MB-175/79 °C 79 93 107 121 135 149 °F 175 200 225 250 275 300 ML4C Series Mini Labels 4 temperature ratings per label: Model No. (Pkg 10) Temperature Ratings ML4C-40 °C 40 43 46 49 ML4C-54 °C 54 60 66 71 ML4C-77 °C 77 82 88 93 ML4C-99 °C 99 104 110 116 ML4C-121 °C 121 127 132 138 ML4C-143 °C 143 149 154 160 ML4C-166 °C 166 171 177 182 ML4C-188 °C 188 193 199 204 ML4C-210 °C 210 216 224 232 ML4C-241 °C 241 249 254 260 Actual size. Shown larger than actual size for detail. Non-Reversible OMEGALABEL® Temperature Monitors Price pkg of 10 pkg of 30 £1350 £37 Price pkg of 10 pkg of 30 £12 £36 Price pkg of 10 pkg of 30 £1875 £56 Price pkg of 10 pkg of 30 £8 £2150 12 x 5 mm (0.5 x 0.2") Actual Size 1.5 mm (0.06") Indicating Circle To order package of 30, add suffix “-30” to model number. Ordering Example: ML4C-40-30, mini label, 4 temperature rating (40 to 49°C), package of 30, £21.50. Shown actual size. BUA Series shown close to actual size. Shown actual size. Specifications Accuracy: Up to 99°C (210°F) is ±1°C (1.8°F); From 100°C (212°F) to 154°C (309°F) is ±1.5°C (2.7°F); From 160°C (320°F) to 280°C (536°) is ±1% and ±1°C (1.8°F) MOST POPULAR MODELS HIGHLIGHTED!
