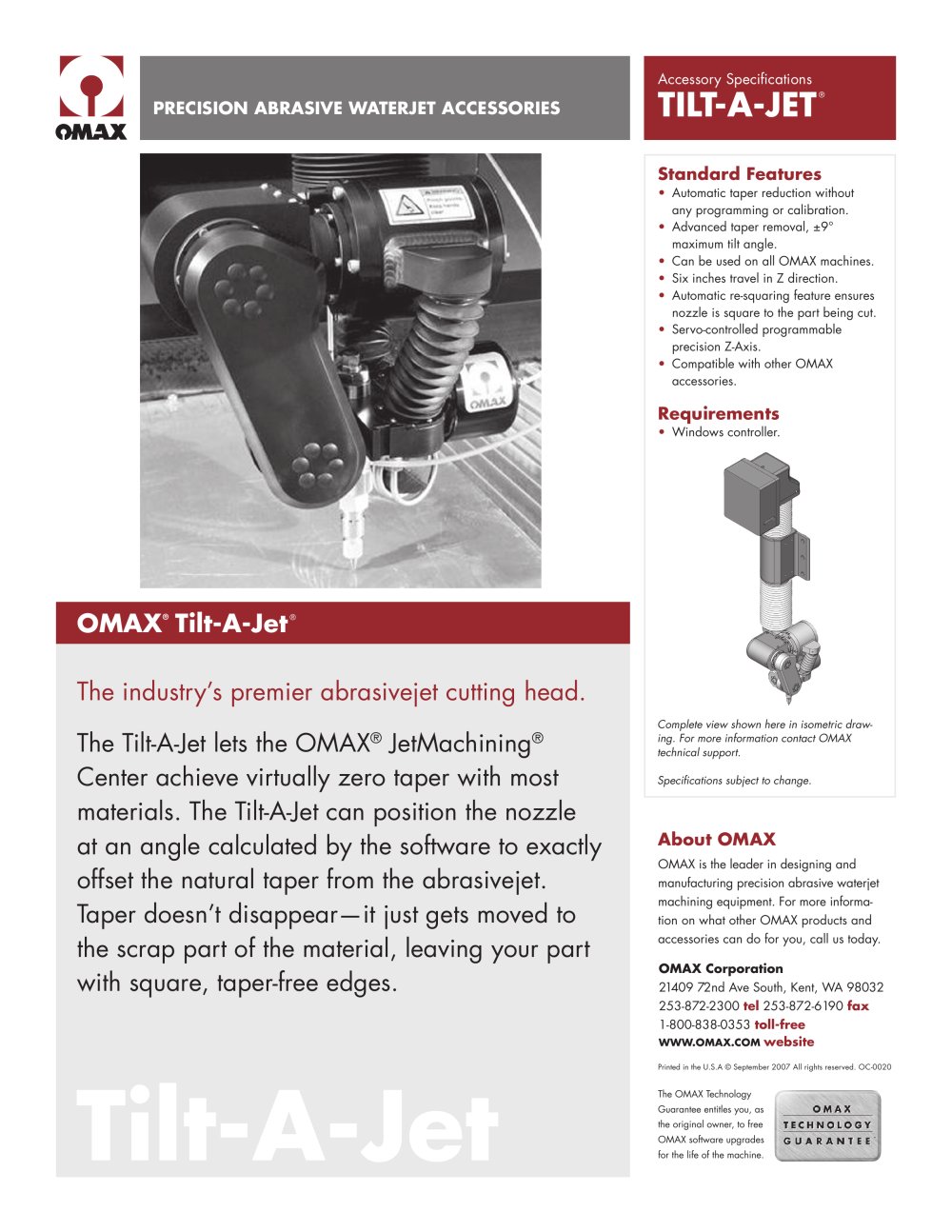

PRECISION ABRASIVE WATERJET ACCESSORIES Accessory Specifications TILT-A-JET OMAX® Tilt-A-Jet Tilt-A-Jet The OMAX Technology Guarantee entitles you, as the original owner, to free OMAX software upgrades for the life of the machine. The industry’s premier abrasivejet cutting head. The Tilt-A-Jet lets the OMAX® JetMachining® Center achieve virtually zero taper with most materials. The Tilt-A-Jet can position the nozzle specifications at an angle calculated by the software to exactly offset the natural taper from the abrasivejet. Taper doesn’t disappear—it just gets moved to the scrap part of the material, leaving your part with square, taper-free edges. OMAX Corporation 21409 72nd Ave South, Kent, WA 98032 253-872-2300 tel 253-872-6190 fax 1-800-838-0353 toll-free WWW.OMAX.COM website Printed in the U.S.A © September 2007 All rights reserved. OC-0020 About OMAX OMAX is the leader in designing and manufacturing precision abrasive waterjet machining equipment. For more information on what other OMAX products and accessories can do for you, call us today. Standard Features • Automatic taper reduction without any programming or calibration. • Advanced taper removal, ±9° maximum tilt angle. • Can be used on all OMAX machines. • Six inches travel in Z direction. • Automatic re-squaring feature ensures nozzle is square to the part being cut. • Servo-controlled programmable precision Z-Axis. • Compatible with other OMAX accessories. Requirements • Windows controller. Complete view shown here in isometric drawing. For more information contact OMAX technical support. Specifications subject to change. ® ® C o r p o r a t i o n
