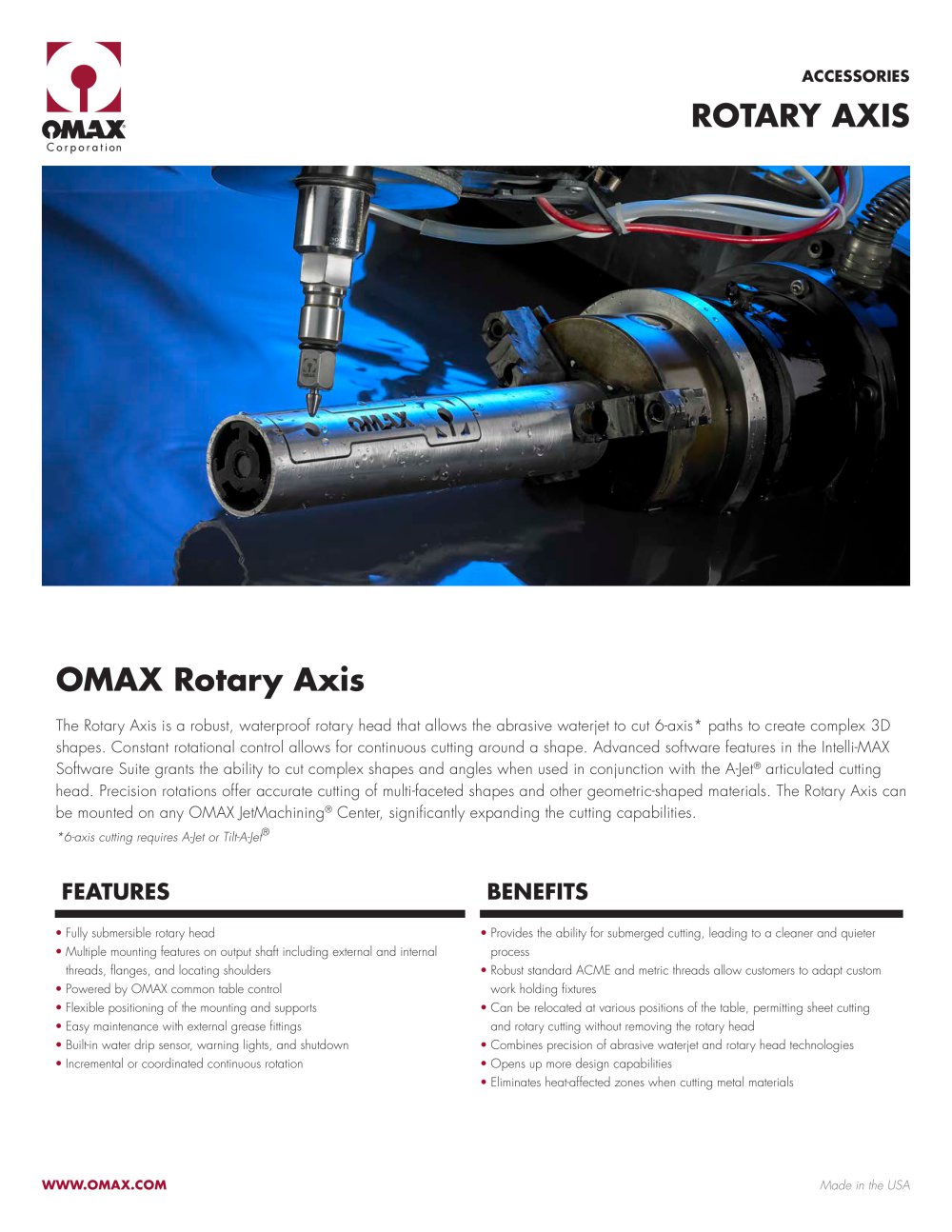

PRECISION ABRASIVE WATERJET ACCESSORIES Accessory Specifications Rotary Axis OMAX® Rotary Axis ROTARY AXIS The Rotary Axis is a robust, waterproof rotary head allowing the waterjet to cut XYZ paths to create complex 3D parts. The Rotary Axis is capable of precision, incremental index rotations permitting the waterjet to cut pipe, circular, square, or other geometric-shaped material stock. The versatile rotary head gives users the ability to attach customized fixtures. C o r p o r a t i o n The OMAX Technology Guarantee entitles you, as the original owner, to free OMAX software upgrades for the life of the machine. Standard Features • Fully submergible rotary head • Multiple mounting features on output shaft including external and internal threads, flanges, and locating shoulders • Powered by OMAX common table control • Flexible positioning of the mounting and supports • Easy maintenance with external grease fittings • Built-in water drip sensor, warning lights and shutdown Capabilities (when used with accessories) • 10,000 steps per revolution standard • 11 ft-lb (15N*m) constant torque • 28 ft-lb (39N*m) maximum torque • Maximum radial load at end of output shaft 391 lbf (1.74kN) • Maximum radial load 12” from end of the output shaft 67 lbf (0.289kN) • Maximum radial load 24” from end of the output shaft 36 lbf (0.164kN) • On larger format machines, maximum diameter 24” (cannot exceed load or torque limit) • 0.01 degree of repeatability: at 1” diameter = 0.0001”; at 10” diameter = 0.0008” Benefits • Provides the ability for submerged cutting, leading to a cleaner and quieter process • Robust standard ACME and metric threads allow customers to adapt custom work holding fixtures • No extra electrical service required; simply plug into the OMAX table • Can be relocated at various positions of the table, permitting sheet cutting and rotary cutting without removing the rotary head • Combines precision of abrasive waterjet and rotary head technologies • Opens up more design capabilities • Eliminates heat-affected zones when cutting metal materials
