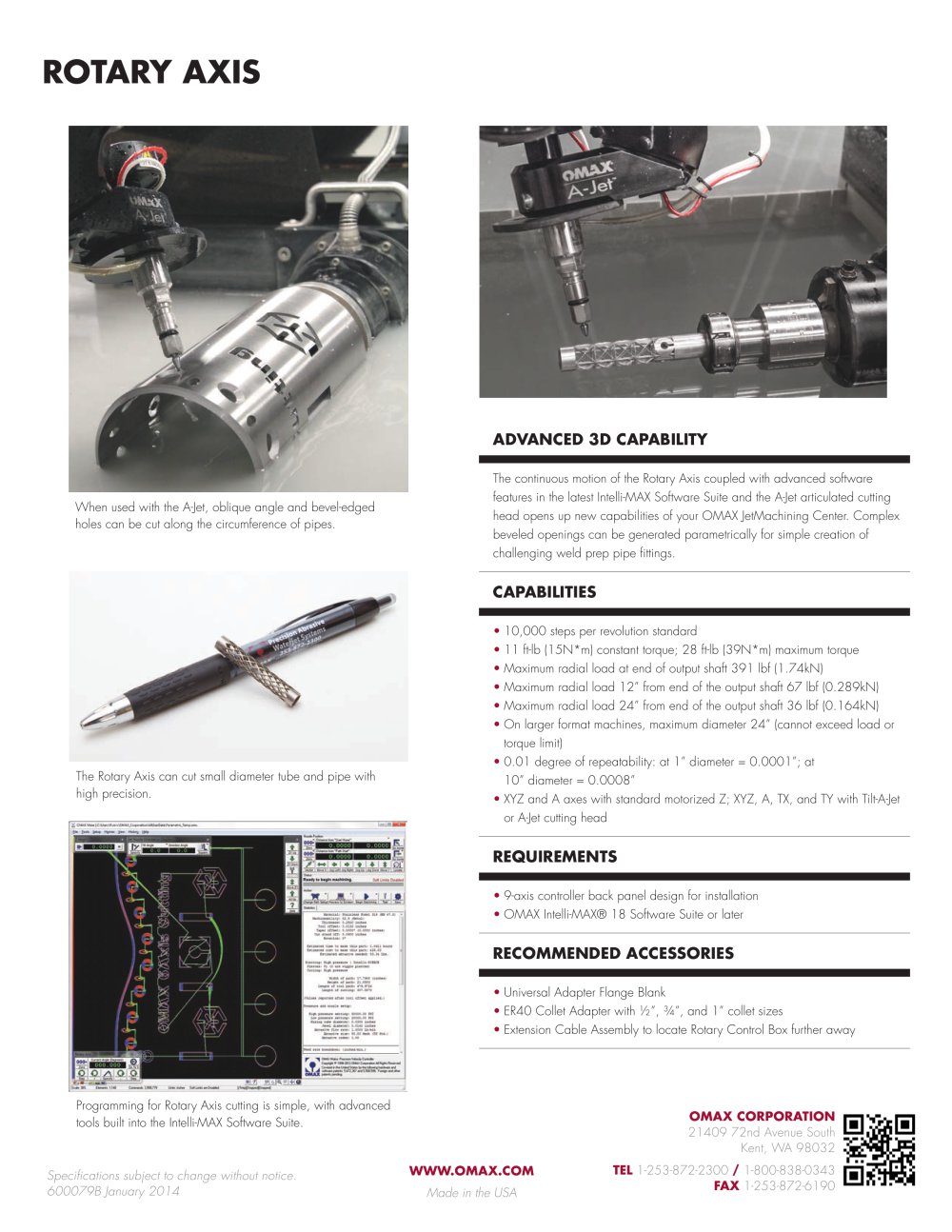

OMAX Rotary Axis About OMAX OMAX has the industry leading patented abrasivejet controller with a built-in expert system. Our exclusive “Compute First- Move Later” motion control system automates most programming and tool setup work, virtually eliminating the need for extensive operator training. Plus, with free OMAX Intelli-MAX® Software upgrades for the life of the machine and our ongoing commitment to advance the efficiency of our technology and software, OMAX saves you time and money. For information on what other OMAX products and accessories can do for you, call us today at 800-838-0343 or visit our website at www.omax.com. OMAX Corporation 21409 72nd Ave South, Kent, WA 98032 253-872-2300 tel 253-872-6190 fax 1-800-838-0343 toll-free WWW.OMAX.COM website Printed in the U.S.A © July 2009 All rights reserved. S-0038 C o r p o r a t i o n Requirements • A new 9-axis controller back panel design for installation • OMAX Intelli-MAX® Software Suite Version 13 or greater Rotary Axis shown on an OMAX 2652 Accessories All accessory attachments are pre-machined to precision mate with the OMAX Rotary Axis head output shaft. Universal Adapter Flange The Universal Adapter Flange is ideal for a 3 or 4 jaw chuck mount. It is pre-machined for an economy 4 jaw chuck and can be modified for custom work holding fixtures. The accessory threads onto the Rotary Axis motor shaft. ER40 Collet Adapter This adapter ships ready-to-use with three different collet sizes (1/2”, 3/4”, or 1”) for round stock or tube. The adapter can also be used with a variety of other sized ER40 collets available from your local tooling supplier. With extra collet sizes, you can even attach irregular and oversized stock that has a material end turned down to the specific ER40 size. The accessory threads onto the Rotary Axis motor shaft. Extension Cable Assembly This option allows you to position the Rotary Control Box further away, up to 48”, from the rotary head. Use up to four extensions.
