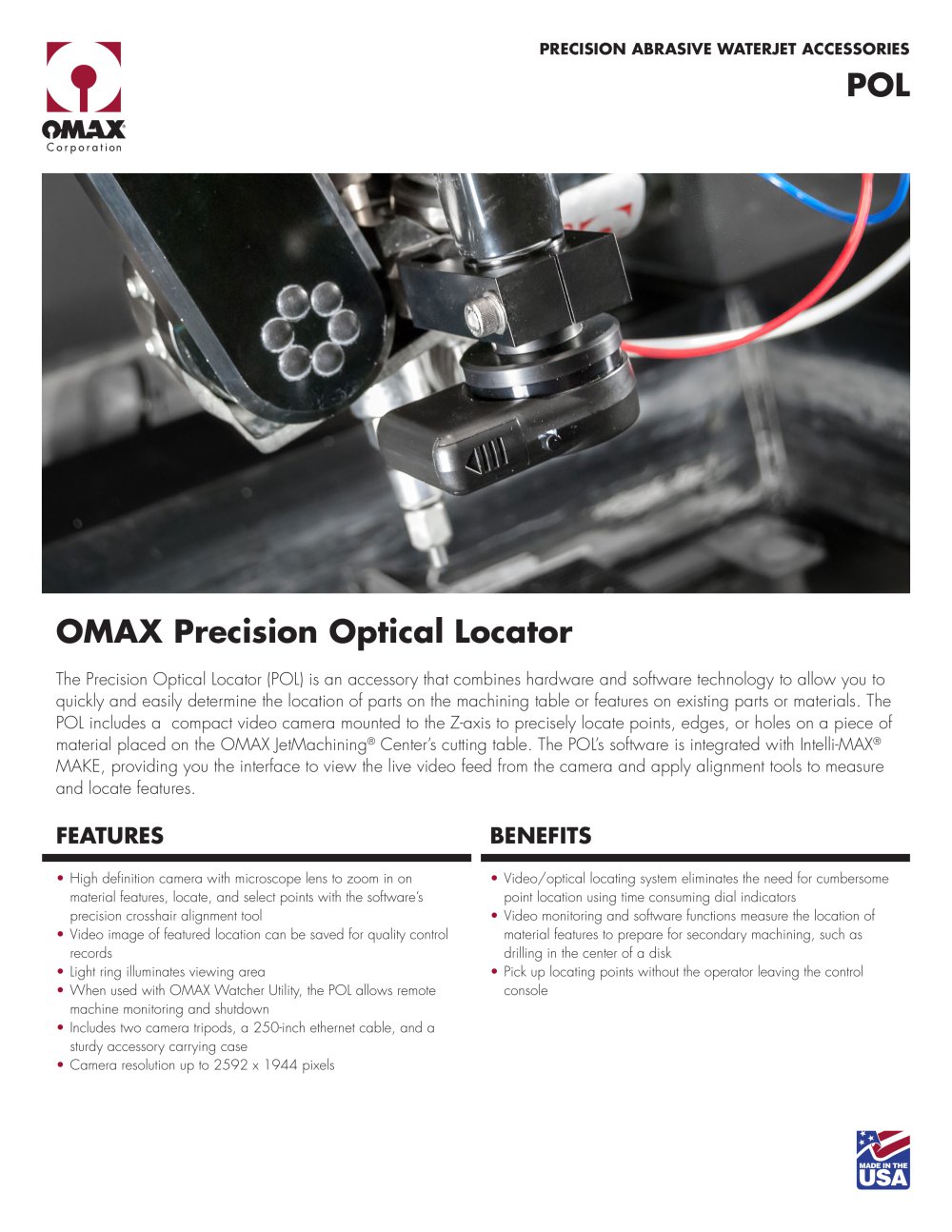

PRECISION ABRASIVE WATERJET ACCESSORIES Accessory Specifications POL OMAX® Precision Optical Locator POL Precision Optical Locator (POL) ensures precision cutting of pre-machined components. Standard Features • Video/optical locating system eliminates the need for cumbersome point location using time consuming dial indicators • Uses USB camera with microscope lens • Operates anywhere on the cutting table to pick up locating points at remote corners of the cutting table without the operator leaving the control console • Software package integrates into OMAX Make for Windows® control program • Video image of point location can be stored for Quality Control records, if desired • Light ring illuminates viewing area • OMAX Watcher allows remote machine monitoring • Two USB extension cables • Camera tripods (2) • Camera resolution: 1280 x 1024 • Carrying case for all accessories Requirements • Windows upgrade. Contact OMAX Customer Service for information • Motorized Z-axis or Tilt-A-Jet® • Remove from Z-axis during cutting OMAX Corporation 21409 72nd Ave South, Kent, WA 98032 253-872-2300 tel 253-872-6190 fax 1-800-838-0343 toll-free WWW.OMAX.COM website Printed in the U.S.A © August 2008 All rights reserved. S-0016 About OMAX OMAX has the industry leading patented abrasivejet controller with a built-in expert system. Our exclusive “Compute First-Move Later” motion control system automates most programming and tool setup work, virtually eliminating the need for extensive operator training. Plus, with free OMAX Intelli-MAX® Software upgrades for the life of the machine and our ongoing commitment to advance the efficiency of our technology and software, OMAX saves you time and money. Quickly lines up existing part features. Software includes: • Wizard for rotating parts based on features • Digital Zoom • Interaction with Layout and Make The POL uses modern compact video technology to precisely locate points, edges or holes on a piece of material placed on the OMAX cutting table. The software package then reorients the cutting program to precisely align with the located features. C o r p o r a t i o n The OMAX Technology Guarantee entitles you, as the original owner, to free OMAX software upgrades for the life of the machine.
