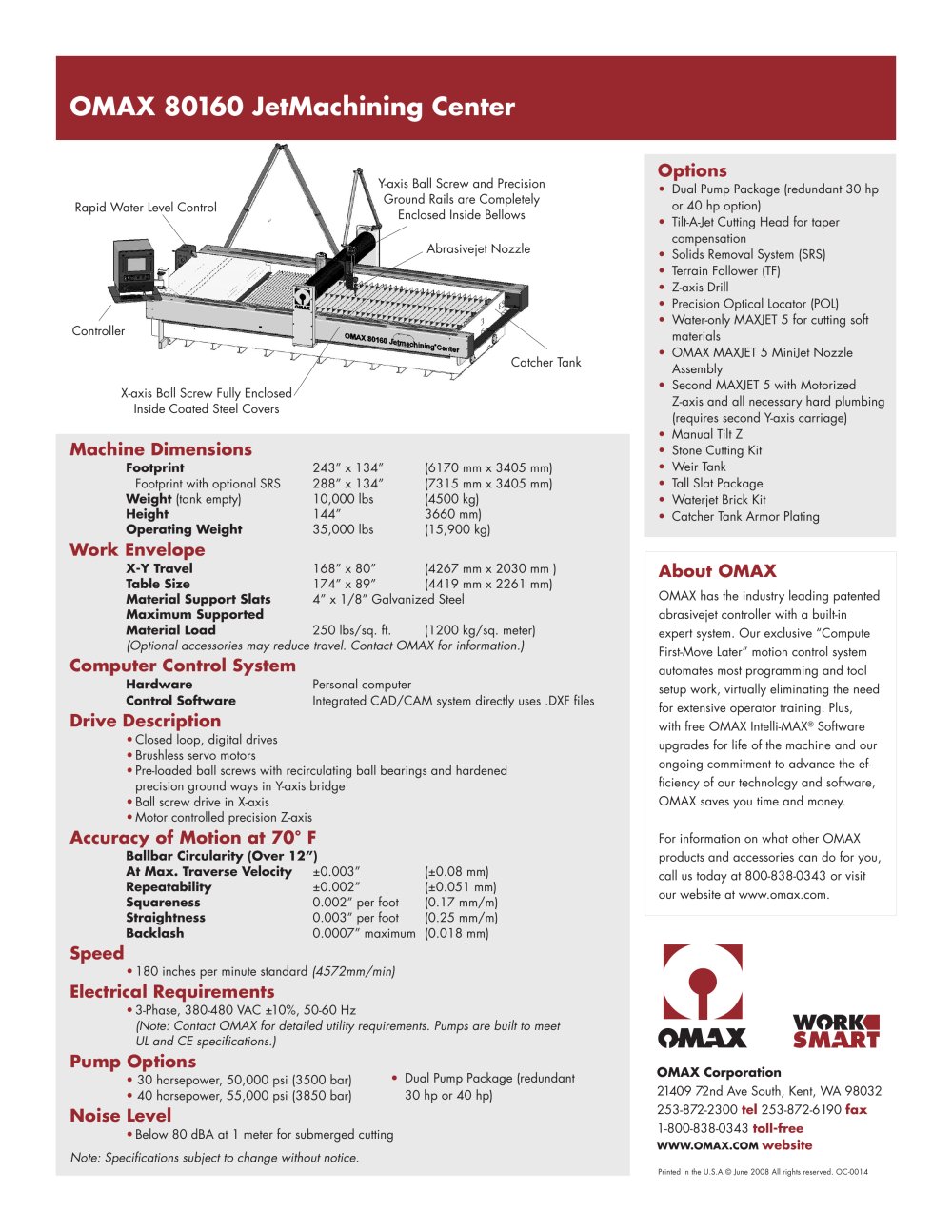

Note: Specifications subject to change without notice. Printed in the U.S.A © June 2008 All rights reserved. OC-0014 OMAX 80160 JetMachining Center Options • Dual Pump Package (redundant 30 hp or 40 hp option) • Tilt-A-Jet Cutting Head for taper compensation • Solids Removal System (SRS) • Terrain Follower (TF) • Z-axis Drill • Precision Optical Locator (POL) • Water-only MAXJET 5 for cutting soft materials • OMAX MAXJET 5 MiniJet Nozzle Assembly • Second MAXJET 5 with Motorized Z-axis and all necessary hard plumbing (requires second Y-axis carriage) • Manual Tilt Z • Stone Cutting Kit • Weir Tank • Tall Slat Package • Waterjet Brick Kit • Catcher Tank Armor Plating Machine Dimensions Footprint 243” x 134” (6170 mm x 3405 mm) Footprint with optional SRS 288” x 134” (7315 mm x 3405 mm) Weight (tank empty) 10,000 lbs (4500 kg) Height 144” 3660 mm) Operating Weight 35,000 lbs (15,900 kg) Work Envelope X-Y Travel 168” x 80” (4267 mm x 2030 mm ) Table Size 174” x 89” (4419 mm x 2261 mm) Material Support Slats 4” x 1/8” Galvanized Steel Maximum Supported Material Load 250 lbs/sq. ft. (1200 kg/sq. meter) (Optional accessories may reduce travel. Contact OMAX for information.) Computer Control System Hardware Personal computer Control Software Integrated CAD/CAM system directly uses .DXF files Drive Description • Closed loop, digital drives • Brushless servo motors • Pre-loaded ball screws with recirculating ball bearings and hardened precision ground ways in Y-axis bridge • Ball screw drive in X-axis • Motor controlled precision Z-axis Accuracy of Motion at 70° F Ballbar Circularity (Over 12”) At Max. Traverse Velocity ±0.003” (±0.08 mm) Repeatability ±0.002” (±0.051 mm) Squareness 0.002” per foot (0.17 mm/m) Straightness 0.003” per foot (0.25 mm/m) Backlash 0.0007” maximum (0.018 mm) Speed • 180 inches per minute standard (4572mm/min) Electrical Requirements • 3-Phase, 380-480 VAC ±10%, 50-60 Hz (Note: Contact OMAX for detailed utility requirements. Pumps are built to meet UL and CE specifications.) Pump Options • 30 horsepower, 50,000 psi (3500 bar) • 40 horsepower, 55,000 psi (3850 bar) Noise Level • Below 80 dBA at 1 meter for submerged cutting Y-axis Ball Screw and Precision Ground Rails are Completely Enclosed Inside Bellows X-axis Ball Screw Fully Enclosed Inside Coated Steel Covers Rapid Water Level Control Abrasivejet Nozzle Catcher Tank • Dual Pump Package (redundant 30 hp or 40 hp) OMAX Corporation 21409 72nd Ave South, Kent, WA 98032 253-872-2300 tel 253-872-6190 fax 1-800-838-0343 toll-free WWW.OMAX.COM website C o r p o r a t i o n About OMAX OMAX has the industry leading patented abrasivejet controller with a built-in expert system. Our exclusive “Compute First-Move Later” motion control system automates most programming and tool setup work, virtually eliminating the need for extensive operator training. Plus, with free OMAX Intelli-MAX® Software upgrades for life of the machine and our ongoing commitment to advance the efficiency of our technology and software, OMAX saves you time and money. For information on what other OMAX products and accessories can do for you, call us today at 800-838-0343 or visit our website at www.omax.com. Controller
