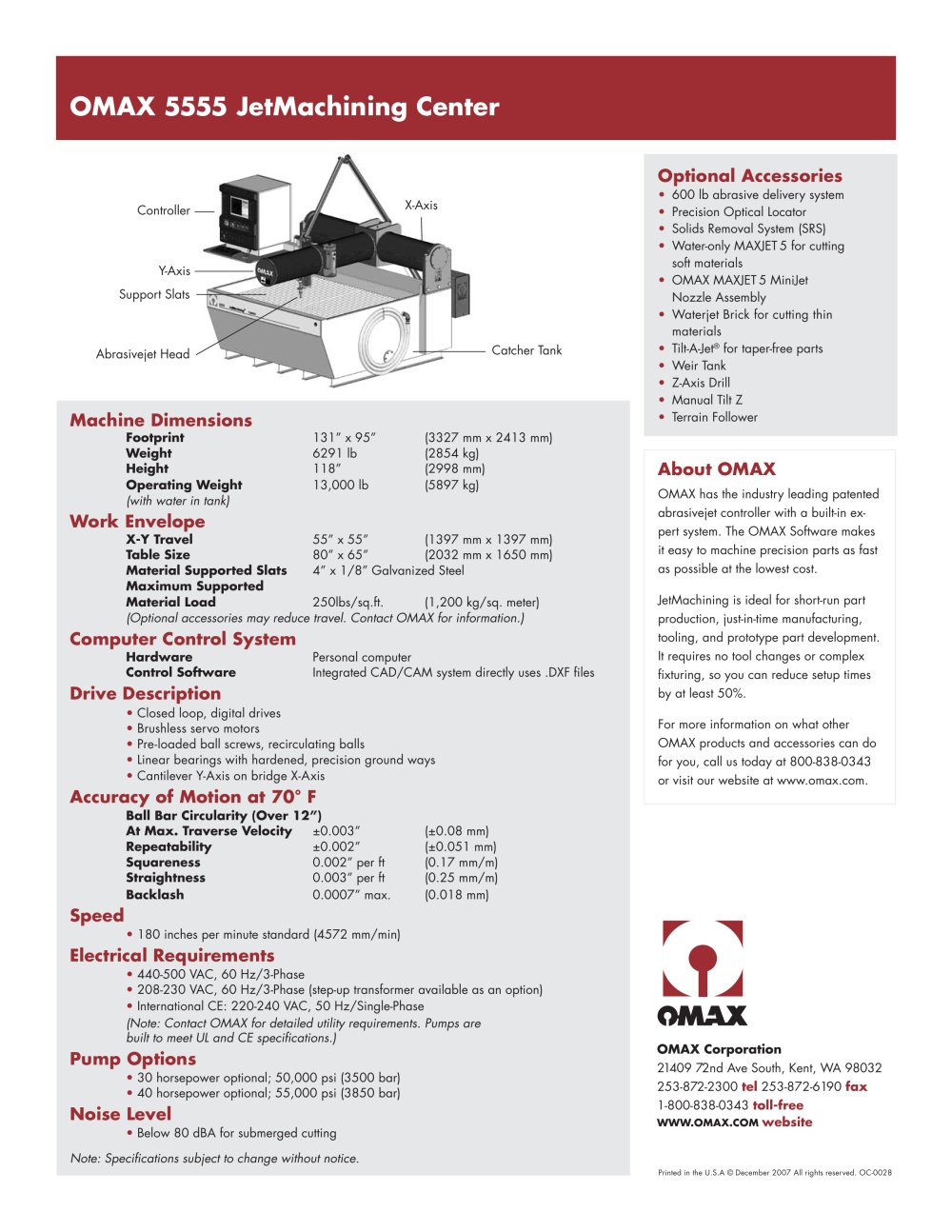

Note: Specifications subject to change without notice. C o r p o r a t i o n OMAX Corporation 21409 72nd Ave South, Kent, WA 98032 253-872-2300 tel 253-872-6190 fax 1-800-838-0343 toll-free WWW.OMAX.COM website Printed in the U.S.A © December 2007 All rights reserved. OC-0028 OMAX 5555 JetMachining Center Machine Dimensions Footprint 131” x 95” (3327 mm x 2413 mm) Weight 6291 lb (2854 kg) Height 118” (2998 mm) Operating Weight 13,000 lb (5897 kg) (with water in tank) Work Envelope X-Y Travel 55” x 55” (1397 mm x 1397 mm) Table Size 80” x 65” (2032 mm x 1650 mm) Material Supported Slats 4” x 1/8” Galvanized Steel Maximum Supported Material Load 250lbs/sq.ft. (1,200 kg/sq. meter) (Optional accessories may reduce travel. Contact OMAX for information.) Computer Control System Hardware Personal computer Control Software Integrated CAD/CAM system directly uses .DXF files Drive Description • Closed loop, digital drives • Brushless servo motors • Pre-loaded ball screws, recirculating balls • Linear bearings with hardened, precision ground ways • Cantilever Y-Axis on bridge X-Axis Accuracy of Motion at 70° F Ball Bar Circularity (Over 12”) At Max. Traverse Velocity ±0.003” (±0.08 mm) Repeatability ±0.002” (±0.051 mm) Squareness 0.002” per ft (0.17 mm/m) Straightness 0.003” per ft (0.25 mm/m) Backlash 0.0007” max. (0.018 mm) Speed • 180 inches per minute standard (4572 mm/min) Electrical Requirements • 440-500 VAC, 60 Hz/3-Phase • 208-230 VAC, 60 Hz/3-Phase (step-up transformer available as an option) • International CE: 220-240 VAC, 50 Hz/Single-Phase (Note: Contact OMAX for detailed utility requirements. Pumps are built to meet UL and CE specifications.) Pump Options • 30 horsepower optional; 50,000 psi (3500 bar) • 40 horsepower optional; 55,000 psi (3850 bar) Noise Level • Below 80 dBA for submerged cutting Optional Accessories • 600 lb abrasive delivery system • Precision Optical Locator • Solids Removal System (SRS) • Water-only Maxjet 5 for cutting soft materials • OMAX MAXJET 5 MiniJet Nozzle Assembly • Waterjet Brick for cutting thin materials • Tilt-A-Jet® for taper-free parts • Weir Tank • Z-Axis Drill • Manual Tilt Z • Terrain Follower About OMAX OMAX has the industry leading patented abrasivejet controller with a built-in expert system. The OMAX Software makes it easy to machine precision parts as fast as possible at the lowest cost. JetMachining is ideal for short-run part production, just-in-time manufacturing, tooling, and prototype part development. It requires no tool changes or complex fixturing, so you can reduce setup times by at least 50%. For more information on what other OMAX products and accessories can do for you, call us today at 800-838-0343 or visit our website at www.omax.com. Support Slats Catcher Tank X-Axis Abrasivejet Head Controller Y-Axis
