OMAX Model 2652 - OMAX - #2

Text version of the page

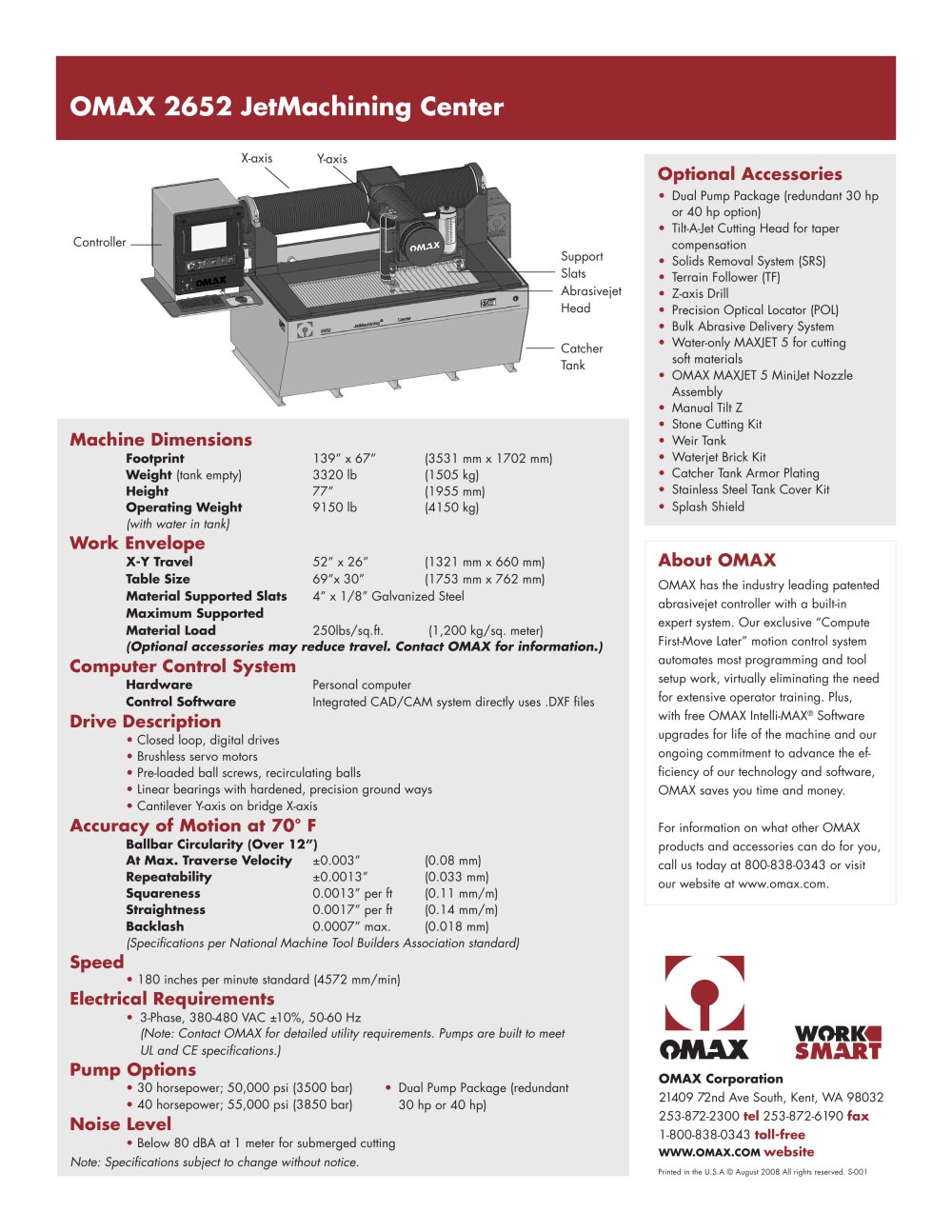

Machine Dimensions Footprint 139” x 67” (3531 mm x 1702 mm) Weight (tank empty) 3320 lb (1505 kg) Height 77” (1955 mm) Operating Weight 9150 lb (4150 kg) (with water in tank) Work Envelope X-Y Travel 52” x 26” (1321 mm x 660 mm) Table Size 69”x 30” (1753 mm x 762 mm) Material Supported Slats 4” x 1/8” Galvanized Steel Maximum Supported Material Load 250lbs/sq.ft. (1,200 kg/sq. meter) (Optional accessories may reduce travel. Contact OMAX for information.) Computer Control System Hardware Personal computer Control Software Integrated CAD/CAM system directly uses .DXF files Drive Description • Closed loop, digital drives • Brushless servo motors • Pre-loaded ball screws, recirculating balls • Linear bearings with hardened, precision ground ways • Cantilever Y-axis on bridge X-axis Accuracy of Motion at 70° F Ballbar Circularity (Over 12”) At Max. Traverse Velocity ±0.003” (0.08 mm) Repeatability ±0.0013” (0.033 mm) Squareness 0.0013” per ft (0.11 mm/m) Straightness 0.0017” per ft (0.14 mm/m) Backlash 0.0007” max. (0.018 mm) (Specifications per National Machine Tool Builders Association standard) Speed • 180 inches per minute standard (4572 mm/min) Electrical Requirements • 3-Phase, 380-480 VAC ±10%, 50-60 Hz (Note: Contact OMAX for detailed utility requirements. Pumps are built to meet UL and CE specifications.) Pump Options • 30 horsepower; 50,000 psi (3500 bar) • 40 horsepower; 55,000 psi (3850 bar) Noise Level • Below 80 dBA at 1 meter for submerged cutting Note: Specifications subject to change without notice. Printed in the U.S.A © August 2008 All rights reserved. S-001 OMAX 2652 JetMachining Center Optional Accessories • Dual Pump Package (redundant 30 hp or 40 hp option) • Tilt-A-Jet Cutting Head for taper compensation • Solids Removal System (SRS) • Terrain Follower (TF) • Z-axis Drill • Precision Optical Locator (POL) • Bulk Abrasive Delivery System • Water-only MAXJET 5 for cutting soft materials • OMAX MAXJET 5 MiniJet Nozzle Assembly • Manual Tilt Z • Stone Cutting Kit • Weir Tank • Waterjet Brick Kit • Catcher Tank Armor Plating • Stainless Steel Tank Cover Kit • Splash Shield Controller X-axis Y-axis Support Slats Catcher Tank Abrasivejet Head OMAX Corporation 21409 72nd Ave South, Kent, WA 98032 253-872-2300 tel 253-872-6190 fax 1-800-838-0343 toll-free WWW.OMAX.COM website C o r p o r a t i o n About OMAX OMAX has the industry leading patented abrasivejet controller with a built-in expert system. Our exclusive “Compute First-Move Later” motion control system automates most programming and tool setup work, virtually eliminating the need for extensive operator training. Plus, with free OMAX Intelli-MAX® Software upgrades for life of the machine and our ongoing commitment to advance the efficiency of our technology and software, OMAX saves you time and money. For information on what other OMAX products and accessories can do for you, call us today at 800-838-0343 or visit our website at www.omax.com. • Dual Pump Package (redundant 30 hp or 40 hp)
