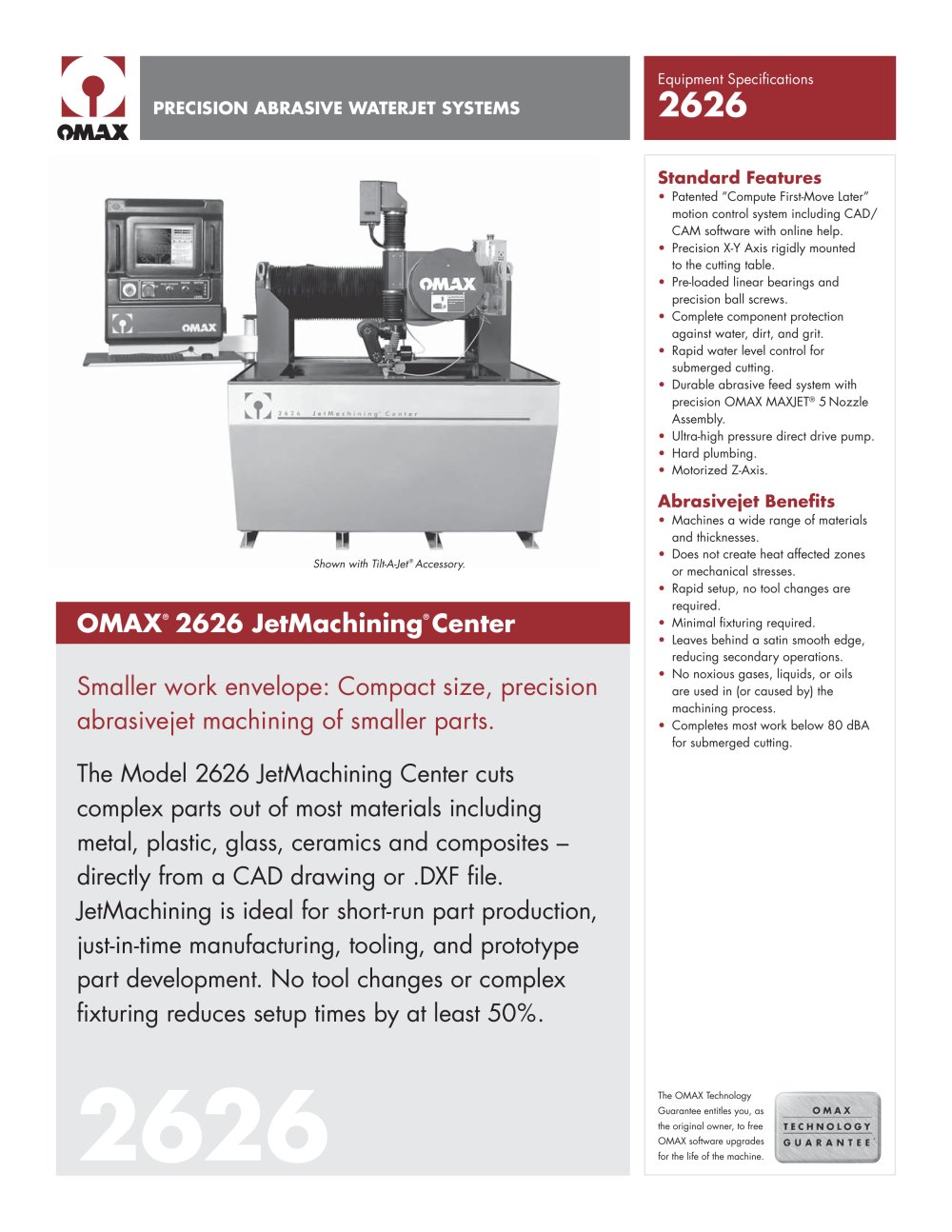

PRECISION ABRASIVE WATERJET SYSTEMS Equipment Specifi cations 2626 OMAX® 2626 JetMachining® Center 2626 The OMAX Technology Guarantee entitles you, as the original owner, to free OMAX software upgrades for the life of the machine. Standard Features • Patented “Compute First-Move Later” motion control system including CAD/ CAM software with online help. • Precision X-Y Axis rigidly mounted to the cutting table. • Pre-loaded linear bearings and precision ball screws. • Complete component protection against water, dirt, and grit. • Rapid water level control for submerged cutting. • Durable abrasive feed system with precision OMAX MAXJET® 5 Nozzle Assembly. • Ultra-high pressure direct drive pump. • Hard plumbing. • Motorized Z-Axis. Abrasivejet Benefi ts • Machines a wide range of materials and thicknesses. • Does not create heat affected zones or mechanical stresses. • Rapid setup, no tool changes are required. • Minimal fi xturing required. • Leaves behind a satin smooth edge, reducing secondary operations. • No noxious gases, liquids, or oils are used in (or caused by) the machining process. • Completes most work below 80 dBA for submerged cutting. The Model 2626 JetMachining Center cuts complex parts out of most materials including metal, plastic, glass, ceramics and composites – directly from a CAD drawing or .DXF fi le. JetMachining is ideal for short-run part production, just-in-time manufacturing, tooling, and prototype part development. No tool changes or complex fi xturing reduces setup times by at least 50%. Smaller work envelope: Compact size, precision abrasivejet machining of smaller parts. Shown with Tilt-A-Jet® Accessory.

Note: Specifi cations subject to change without notice. OMAX Corporation 21409 72nd Ave South, Kent, WA 98032 253-872-2300 tel 253-872-6190 fax 1-800-838-0343 toll-free WWW.OMAX.COM website Printed in the U.S.A © June 2007 All rights reserved. OC-0015 About OMAX OMAX has the industry leading patented abrasivejet controller with a built-in expert system. The OMAX Software makes it easy to machine precision parts as fast as possible at the lowest cost. JetMachining is ideal for short-run part production, just-in-time manufacturing, tooling, and prototype part development. It requires no tool changes...
