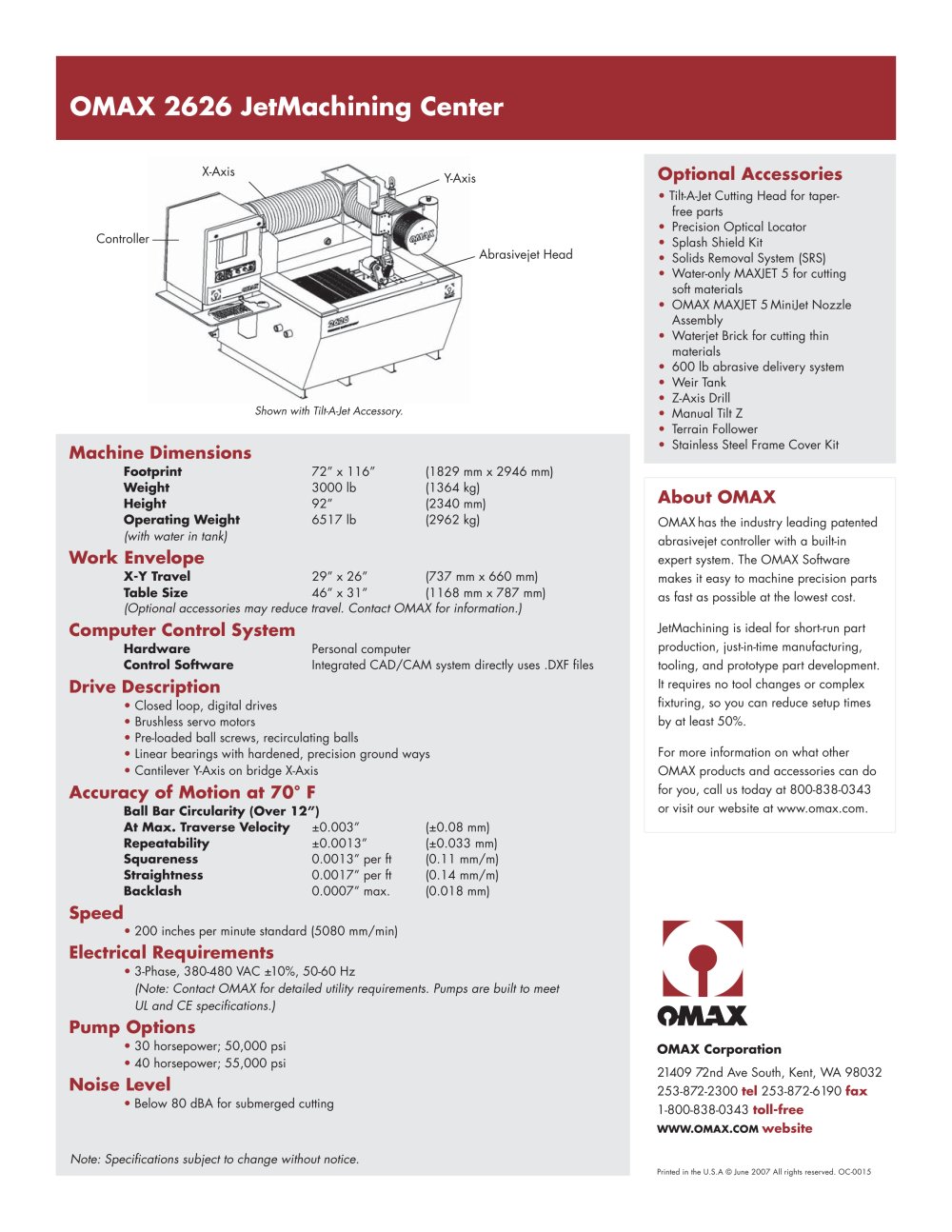

Note: Specifi cations subject to change without notice. OMAX Corporation 21409 72nd Ave South, Kent, WA 98032 253-872-2300 tel 253-872-6190 fax 1-800-838-0343 toll-free WWW.OMAX.COM website Printed in the U.S.A © June 2007 All rights reserved. OC-0015 About OMAX OMAX has the industry leading patented abrasivejet controller with a built-in expert system. The OMAX Software makes it easy to machine precision parts as fast as possible at the lowest cost. JetMachining is ideal for short-run part production, just-in-time manufacturing, tooling, and prototype part development. It requires no tool changes or complex fi xturing, so you can reduce setup times by at least 50%. For more information on what other OMAX products and accessories can do for you, call us today at 800-838-0343 or visit our website at www.omax.com. OMAX 2626 JetMachining Center Machine Dimensions Footprint 72” x 116” (1829 mm x 2946 mm) Weight 3000 lb (1364 kg) Height 92” (2340 mm) Operating Weight 6517 lb (2962 kg) (with water in tank) Work Envelope X-Y Travel 29” x 26” (737 mm x 660 mm) Table Size 46” x 31” (1168 mm x 787 mm) (Optional accessories may reduce travel. Contact OMAX for information.) Computer Control System Hardware Personal computer Control Software Integrated CAD/CAM system directly uses .DXF fi les Drive Description • Closed loop, digital drives • Brushless servo motors • Pre-loaded ball screws, recirculating balls • Linear bearings with hardened, precision ground ways • Cantilever Y-Axis on bridge X-Axis Accuracy of Motion at 70° F Ball Bar Circularity (Over 12”) At Max. Traverse Velocity ±0.003” (±0.08 mm) Repeatability ±0.0013” (±0.033 mm) Squareness 0.0013” per ft (0.11 mm/m) Straightness 0.0017” per ft (0.14 mm/m) Backlash 0.0007” max. (0.018 mm) Speed • 200 inches per minute standard (5080 mm/min) Electrical Requirements • 3-Phase, 380-480 VAC ±10%, 50-60 Hz (Note: Contact OMAX for detailed utility requirements. Pumps are built to meet UL and CE specifi cations.) Pump Options • 30 horsepower; 50,000 psi • 40 horsepower; 55,000 psi Noise Level • Below 80 dBA for submerged cutting Optional Accessories • Tilt-A-Jet Cutting Head for taperfree parts • Precision Optical Locator • Splash Shield Kit • Solids Removal System (SRS) • Water-only MAXJET 5 for cutting soft materials • OMAX MAXJET 5 MiniJet Nozzle Assembly • Waterjet Brick for cutting thin materials • 600 lb abrasive delivery system • Weir Tank • Z-Axis Drill • Manual Tilt Z • Terrain Follower • Stainless Steel Frame Cover Kit Controller Abrasivejet Head X-Axis Y-Axis Shown with Tilt-A-Jet Accessory.
