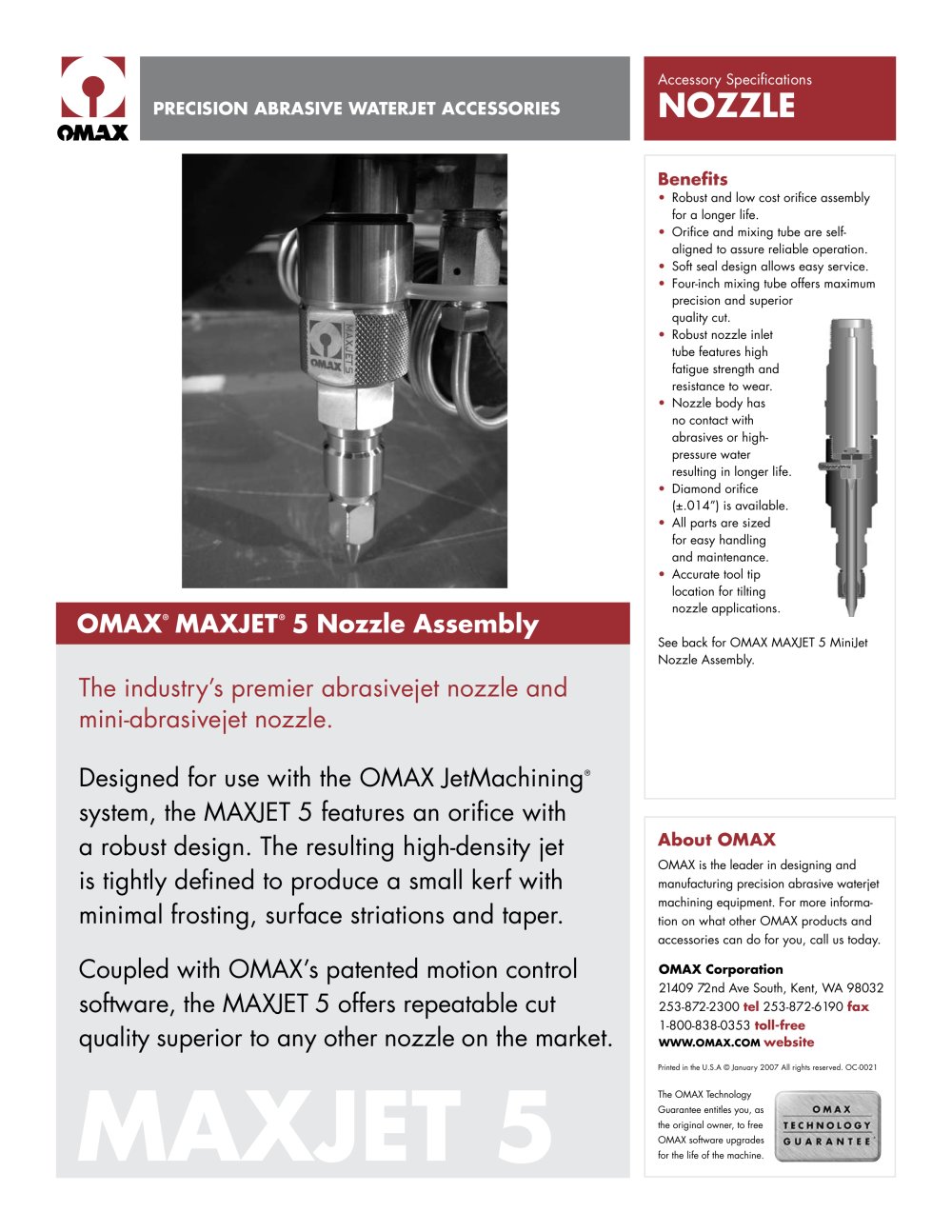

C o r p o r a t i o n PRECISION ABRASIVE WATERJET ACCESSORIES Accessory Specifications NOZZLE OMAX® Maxjet® 5 Nozzle Assembly MAXJET 5 The OMAX Technology Guarantee entitles you, as the original owner, to free OMAX software upgrades for the life of the machine. The industry’s premier abrasivejet nozzle and mini-abrasivejet nozzle. Designed for use with the OMAX JetMachining® system, the MAXJET 5 features an orifice with a robust design. The resulting high-density jet is tightly defined to produce a small kerf with minimal frosting, surface striations and taper. Coupled with OMAX’s patented motion control software, the MAXJET 5 offers repeatable cut quality superior to any other nozzle on the market. Benefits • Robust and low cost orifice assembly for a longer life. • Orifice and mixing tube are selfaligned to assure reliable operation. • Soft seal design allows easy service. • Four-inch mixing tube offers maximum precision and superior quality cut. • Robust nozzle inlet tube features high fatigue strength and resistance to wear. • Nozzle body has no contact with abrasives or highpressure water resulting in longer life. • Diamond orifice (±.014”) is available. • All parts are sized for easy handling and maintenance. • Accurate tool tip location for tilting nozzle applications. See back for OMAX Maxjet 5 MiniJet Nozzle Assembly. OMAX Corporation 21409 72nd Ave South, Kent, WA 98032 253-872-2300 tel 253-872-6190 fax 1-800-838-0353 toll-free WWW.OMAX.COM website Printed in the U.S.A © January 2007 All rights reserved. OC-0021 About OMAX OMAX is the leader in designing and manufacturing precision abrasive waterjet machining equipment. For more information on what other OMAX products and accessories can do for you, call us today.
