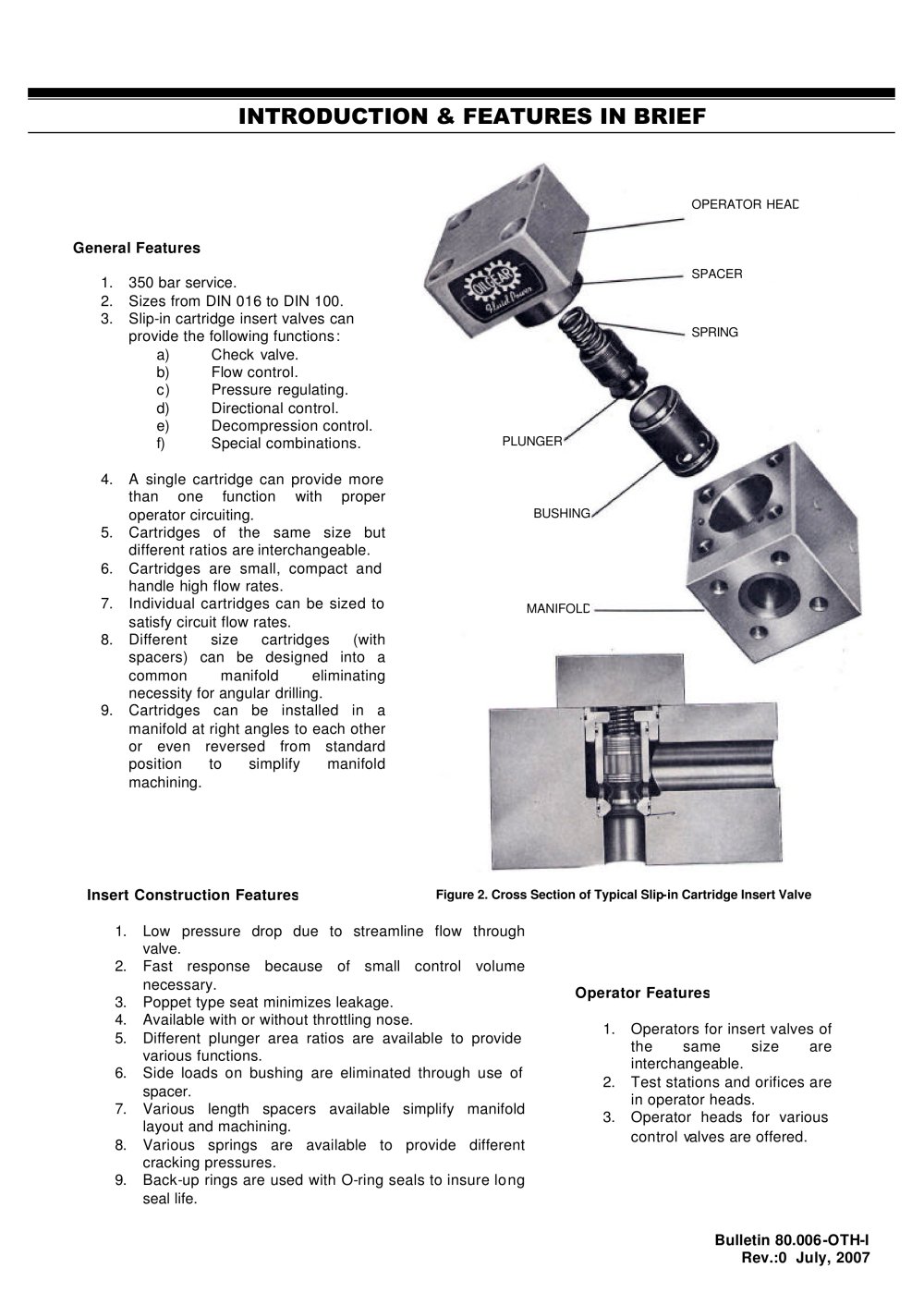

INTRODUCTION & FEATURES IN BRIEF

OPERATOR HEA D General Features 1.350 bar service.2.Sizes from DIN 016 to DIN 100.3.Slip-in cartridge insert valves can provide the following functions:a)Check valve.b)Flow control.c)Pressure regulating.d)Directional control.e)Decompression control.f)Special combinations.4.A single cartridge can provide more than one function with properoperator circuiting.5.Cartridges of the same size butdifferent ratios are interchangeable.6.Cartridges are small, compact and handle high flow rates.7.Individual cartridges can be sized to satisfy circuit flow rates.8.Different size cartridges (withspacers) can be designed into acommon manifold eliminatingnecessity for angular drilling.9.Cartridges can be installed in amanifold at right angles to each other or even reversed from standard position to simplify manifoldmachining.
SPACE R SPRING PLUNGE R BUSHING MANIFOL D Insert Construction Feature s
Figure 2. Cross Section of Typical Slip-in Cartridge Insert Valve 1.Low pressure drop due to streamline flow throughvalve.2.Fast response because of small control volumenecessary.3.Poppet type seat minimizes leakage. 4.Available with or without throttling nose.5.Different plunger area ratios are available to provide various functions.6.Side loads on bushing are eliminated through use of spacer.7.Various length spacers available simplify manifoldlayout and machining.8.Various springs are available to provide differentcracking pressures.9.Back-up rings are used with O-ring seals to insure longseal life. Operator Feature s 1.Operators for insert valves of the same size are interchangeable.2.Test stations and orifices are in operator heads.3.Operator heads for various control valves are offered. Bulletin 80.006 - OTH - IRev.:0July, 2007
