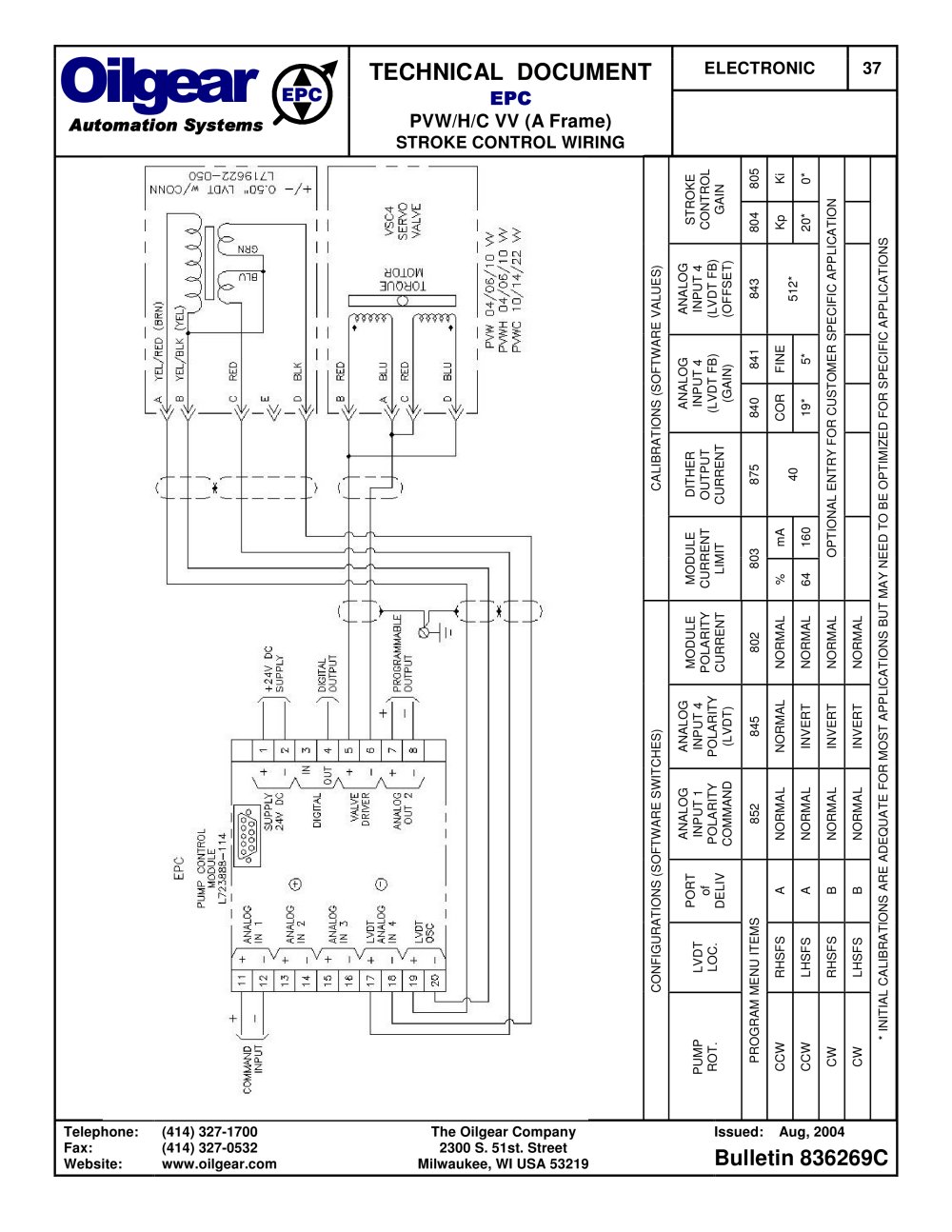

The Oilgear Company 2300 S. 51st. Street Milwaukee, WI USA 53219 ANALOG INPUT 4 POLARITY (LVDT) 845 NORMAL INVERT INVERT INVERT ANALOG INPUT 1 POLARITY COMMAND 852 NORMAL NORMAL NORMAL NORMAL DITHER OUTPUT CURRENT ANALOG INPUT 4 (LVDT FB) (GAIN) ANALOG INPUT 4 (LVDT FB) (OFFSET) STROKE CONTROL GAIN OPTIONAL ENTRY FOR CUSTOMER SPECIFIC APPLICATION MODULE CURRENT LIMIT MODULE POLARITY CURRENT CALIBRATIONS (SOFTWARE VALUES) * INITIAL CALIBRATIONS ARE ADEQUATE FOR MOST APPLICATIONS BUT MAY NEED TO BE OPTIMIZED FOR SPECIFIC APPLICATIONS PROGRAM MENU ITEMS CONFIGURATIONS (SOFTWARE SWITCHES) STROKE CONTROL WIRING

TECHNICAL DOCUMENT STROKE CONTROL WIRING General Notes: This document references schematic wiring standards and software configurations/calibrations required to operate a specific pump, utilizing the Oilgear EPC amplifier. The pump is identified by a partial model code. Complete model codes are defined in pump bulletins. “L” (list) numbers or serial numbers may also identify pumps. Contact the Oilgear Company to cross reference “L” and serial numbers to model codes. Reference Technical Document 836261 for the “Flow Control Program” and Technical Document 836260 for the EPC “User Manual”. Both...
