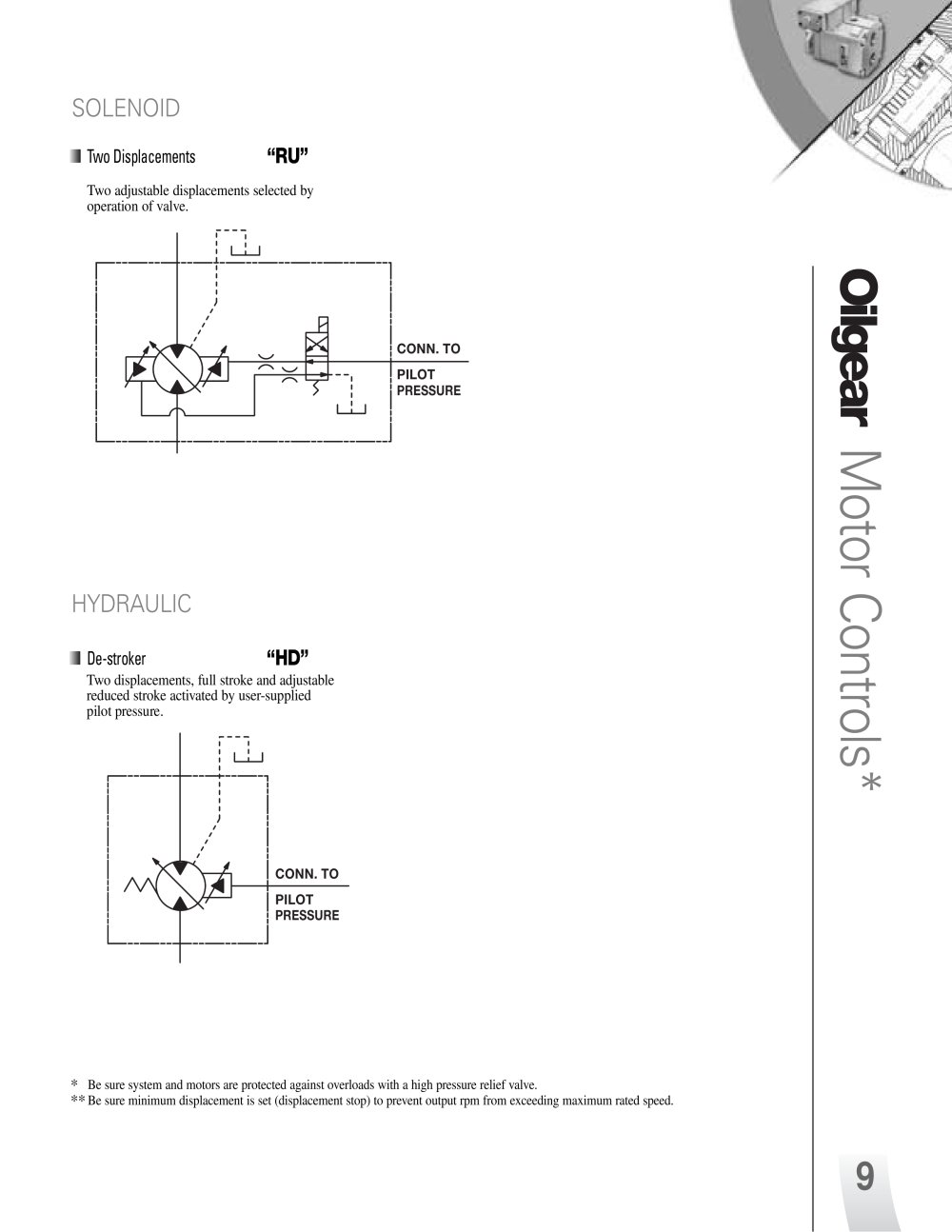

SOLENOID HYDRAULIC

Two Displacements

“RU”

Two adjustable displacements selected by operation of valve.

CONN. TO PILOT PRESSURE
Motor Controls*

De-stroker

“HD”

Two displacements, full stroke and adjustable reduced stroke activated by user-supplied pilot pressure.

CONN. TO PILOT PRESSURE

*

Be sure system and motors are protected against overloads with a high pressure relief valve.

**

Be sure minimum displacement is set (displacement stop) to prevent output rpm from exceeding maximum rated speed.
