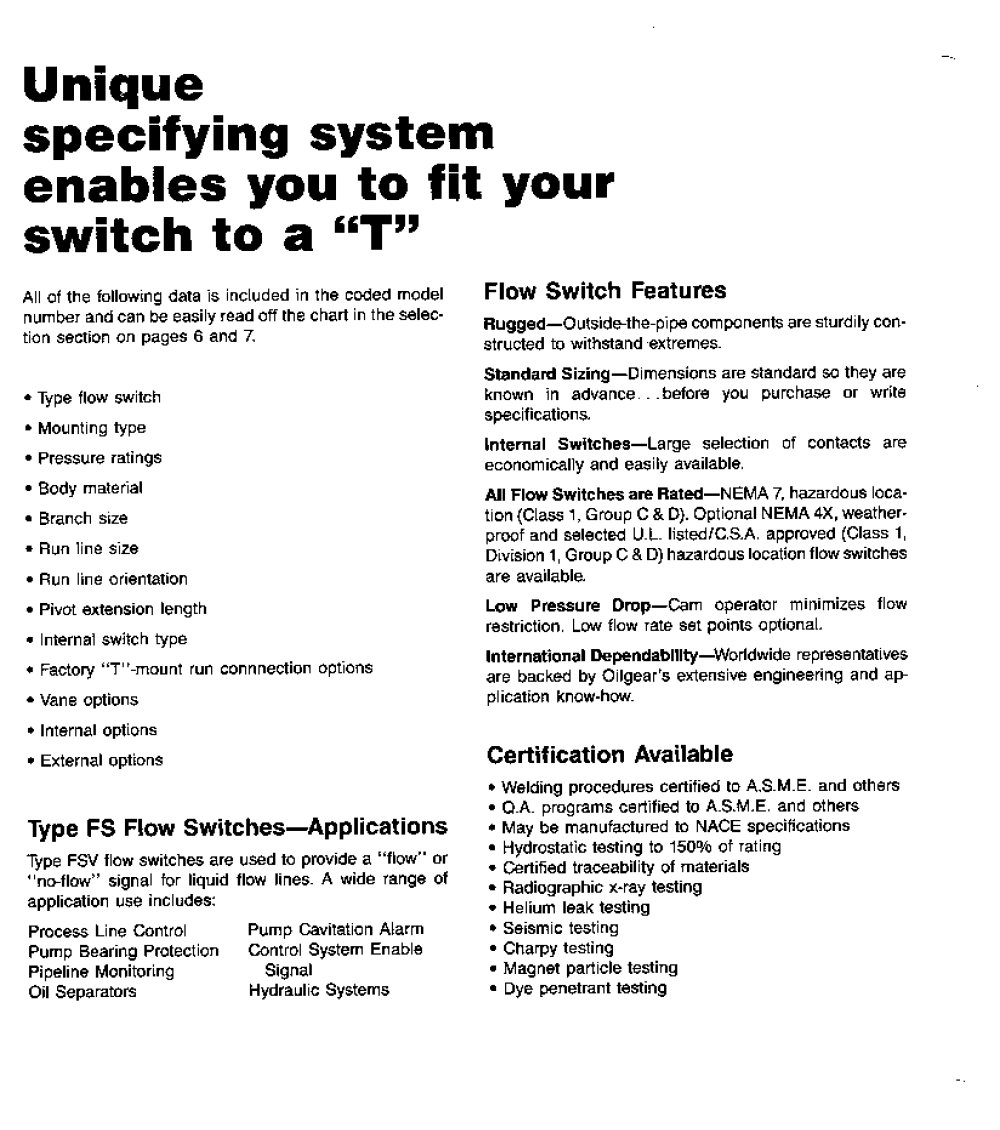

| Unique specifying system enables you to fit your switch to a "T" | |||||||||
| Flow Switch Features Rugged—O jlside-lhe-pipe components are sturdily constructed to withstand extremes. Standard Sizing—Dimensions are standard so they are known in advance before you purchase or writs specifications Internal Switches—Large selection of contacts are economically and easily available. All Flow Switches are Rated—NEMA 7, hazardous location (Class 1, Group C S D). Optional NEMA 4X, weather-proot and selected U.L lisied/CS.A approved (Class 1. Division 1, Group C 8 D) hazardous location flow switches are available. Low Pressure Drop—Cam operator minimizes How restriction. Low flow rate set points optional. International Dependability—Worldwide re press ntaiives are backed by Oilgear's extensive engineering and application know-how | |||||||||
| All of the tallowing data is included in the coded model number and can be easily read oft the chart in the selection section on pages 6 ana 7. « Type flow switch • Mounting type • Pressure ratings • Body male rial • Branch size • Run line orientation • Pivot ejitenston length • MMN switch type • Factory "T"-mount run connnection options • Vans options • Internal options • External options Type FS Flow Switches—Applications Type FSV How switches are used to provide a ''How" or "no-How" signal for Squid flow lines A wide range of application use includes: Process Line Control Pump Cavitation Alarm Pump Bearing Protection Control System Enable Pipeline Monitoring Signal Oil Separators Hydraulic Systems | |||||||||
| Certification Available • Walding procedures certified to A.S.M.E. and others • OA. programs certified to A.S.M.E and otrters • Way be manufactured to NACE specifications • Hydrostatic lasting to 150% of rating • Certified traeeabillty of materials • Radiographic x-ray testing • Helium leak testing • Seismic testing • Charpy testing • Magnet part'de testing ■ Dye penetrant testing | |||||||||
