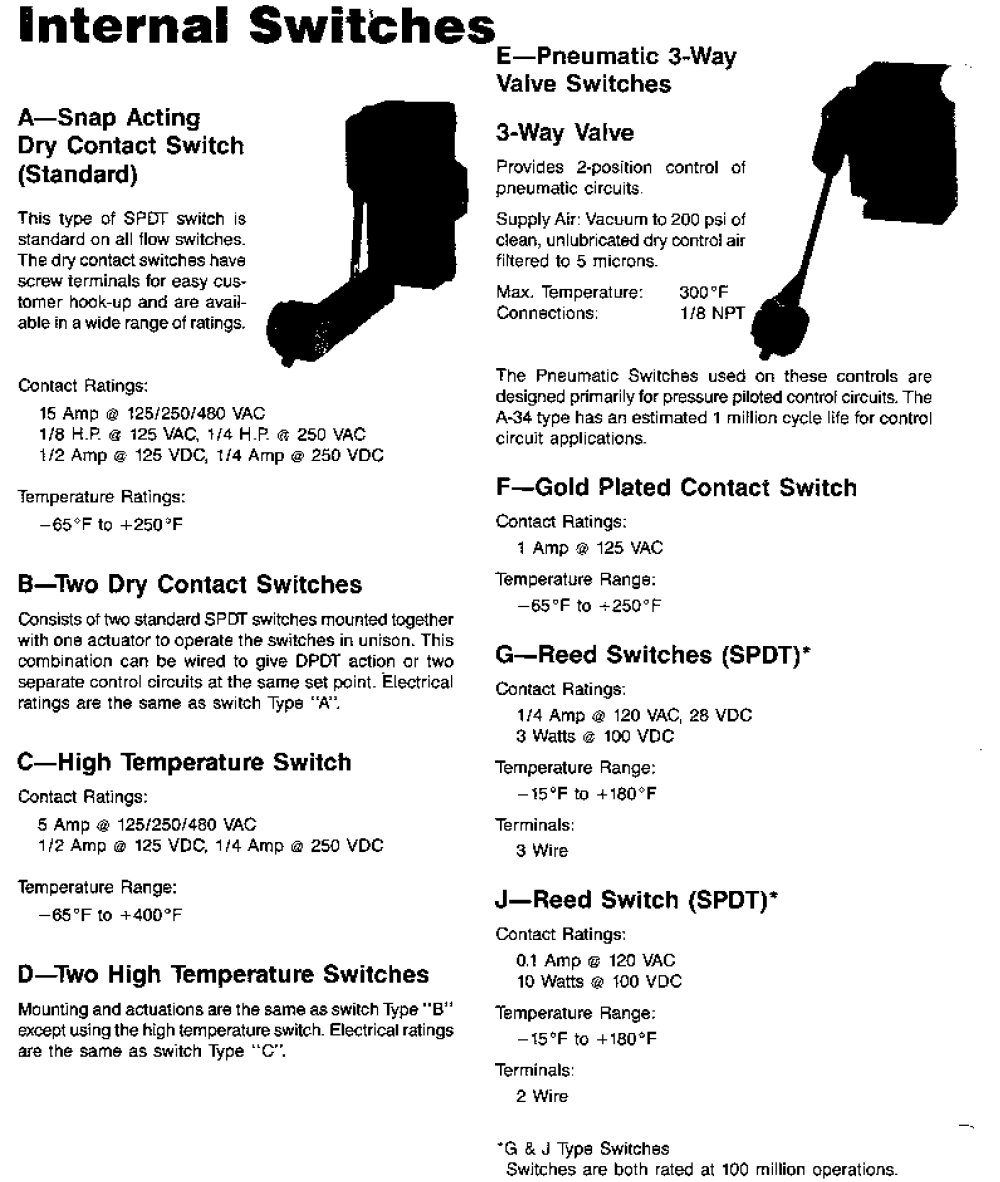

| Internal Switches | ||||||||||||||||
| E—Pneumatic 3-Way Valve Switches | ||||||||||||||||
| A—Snap Acting Dry Contact Switch (Standard) This type of SPDT switch is standard on all flow switches. The dry contact switches have screw terminals for easy customer hook-up and are available in a wide range of ratings. | ||||||||||||||||
| 3-Way Valve Provides 2-position pneumatic circuits | ||||||||||||||||
| control of | ||||||||||||||||
| Supply Air Vacuum to 200 psi of clean, unlubncated dry control air fiftered to 5 microns. Wax. Temperature: 300°F Connections. 1/8 NPT | ||||||||||||||||
| The Pneumatic Switches used on these controls are designed primarily for pressure piloted controf circuits. The A-34 type has an estimated 1 miflion cycle life for control circuit applications. F—Gold Plated Contact Switch Contact Ratings: 1 Amp % 125 VAC Temperature Range: -65°F to -^25Q°F G—Reed Switches (SPOT)' Contact Ratings: 1/4 Amp ® 120 VAC, 28 VDC 3 Watts ft 100 VDC Temperature Range: -15°F to +16ITF Terminals: 3 Wire J—Reed Switch (SPOT)* Contact Ratings: 0.1 Amp @ 120 VAC 10 Watts © 100 VDC Temperature Range: -15*F to +1B0*F Terminals' 2 Wire | ||||||||||||||||
| Contact Ratings: 15 Amp ® 125/250/480 VAC 1/8 HP. ft 125 VAC, 1/4 HP. ft 250 VAC 1/2 Amp @ 125 VDC, 1/4 Amp @ 250 VDC Temperature Ratings: -65^F to +250JF B—Two Dry Contact Switches Consists of two standard SPOT switches mounted together with one actuator to operate The switches in unison. This combination can be wired to give DPDT action or two separate control circuits at the same set point. Electrical ratings are the same as switch Type "A". C—High Temperature Switch Contact Ratings: 5 Amp <& 125/250/480 VAC 1 /2 Amp ® 125 VDC, 1 /4 Amp ft 250 VDC Temperature Range: -65°Fto +400*F | ||||||||||||||||
| D—Two High Temperature Switches Mounting and actuations are the same as switch Type "B" except using the high temperature switch. Electrical ratings are The same as switch Type "C". | ||||||||||||||||
| *G & J Type Switches Switches are both rated at 100 million operations. | ||||||||||||||||
