REFERENCED TORQUE RANGEDESCRIPTIONMODEL

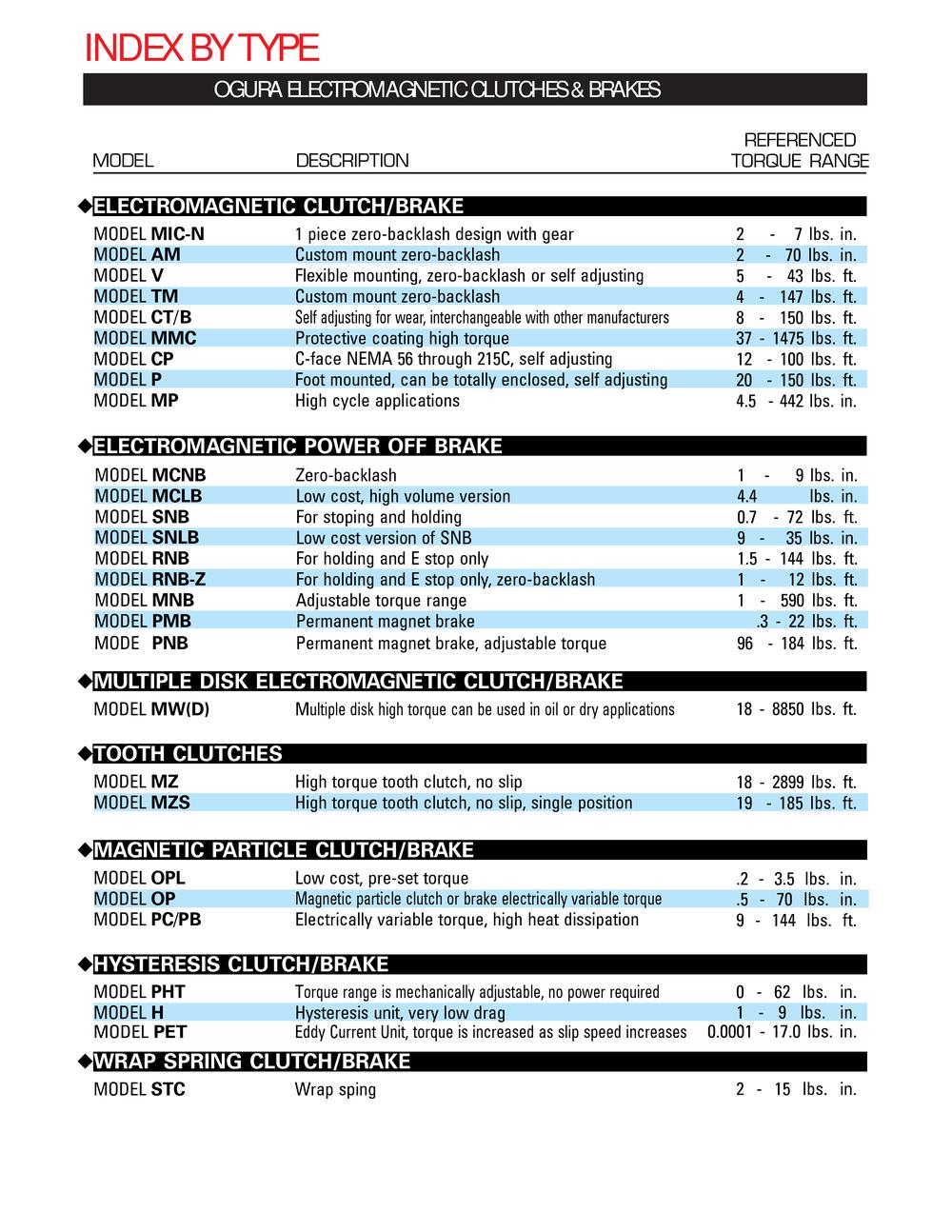

OGURA Industrial Products - 14328 INDEXBYTYPE

OGURAELECTROMAGNETICCLUTCHES&BRAKES

â—† ELECTROMAGNETIC CLUTCH/BRAKE

MODEL MIC-N 1 piece zero-backlash design with gearCustom mount zero-backlash Flexible mounting, zero-backlash or self adjusting Custom mount zero-backlash MODEL AM MODEL V MODEL TM MODEL CT / B Self adjusting for wear, interchangeable with other manufacturers MODEL MMC Protective coating high torque C-face NEMA 56 through 215C, self adjusting Foot mounted, can be totally enclosed, self adjusting High cycle applications2 - 7 lbs. in.2 - 70 lbs. in. 5 - 43 lbs. ft. 4 - 147 lbs. ft. 8 - 150 lbs. ft. 37 - 1475 lbs. ft. 12 - 100 lbs. ft. 20 - 150 lbs. ft. 4.5 - 442 lbs. in. MODEL CP MODEL P MODEL MP

â—† ELECTROMAGNETIC POWER OFF BRAKE

MODEL MCNB Zero-backlashLow cost, high volume version For stoping and holding Low cost version of SNB For holding and E stop only For holding and E stop only, zero-backlash Adjustable torque range Permanent magnet brake1 - 9 lbs. in.4.4 lbs. in. 0.7 - 72 lbs. ft. 9 - 35 lbs. in. 1.5 - 144 lbs. ft. 1 - 12 lbs. ft. 1 - 590 lbs. ft. MODEL MCLB MODEL SNB MODEL SNLB MODEL RNB MODEL RNB-Z MODEL MNB MODE L PMB .3 - 22 lbs. ft. MODE PNB Permanent magnet brake, adjustable torque96 - 184 lbs. ft.

â—† MULTIPLE DISK ELECTROMAGNETIC CLUTCH/BRAKE

MODEL MW(D) M ultiple disk high torque can be used in oil or dry applications 18 - 8850 lbs. ft.

â—† TOOTH CLUTCHES

MODEL MZ High torque tooth clutch, no slipHigh torque tooth clutch, no slip, single position18 - 2899 lbs. ft.19 - 185 lbs. ft. MODEL MZS

â—† MAGNETIC PARTICLE CLUTCH/BRAKE

MODEL OPL Low cost, pre-set torque MODEL OP Magnetic particle clutch or brake electrically variable torque MODEL PC / PB Electrically variable torque, high heat dissipation.2 - 3.5 lbs. in..5 - 70 lbs. in. 9 - 144 lbs. ft.

â—† HYSTERESIS CLUTCH/BRAKE

MODEL PHT T orque range is mechanically adjustable, no power required MODEL H Hysteresis unit, very low drag0 - 62 lbs. in.1 - 9 lbs. in.
MODEL PET Eddy Current Unit, torque is increased as slip speed increases 0.0001 - 17.0 lbs. in.

â—† WRAP SPRING CLUTCH/BRAKE

MODEL STC Wrap sping 2 - 15 lbs. in.
