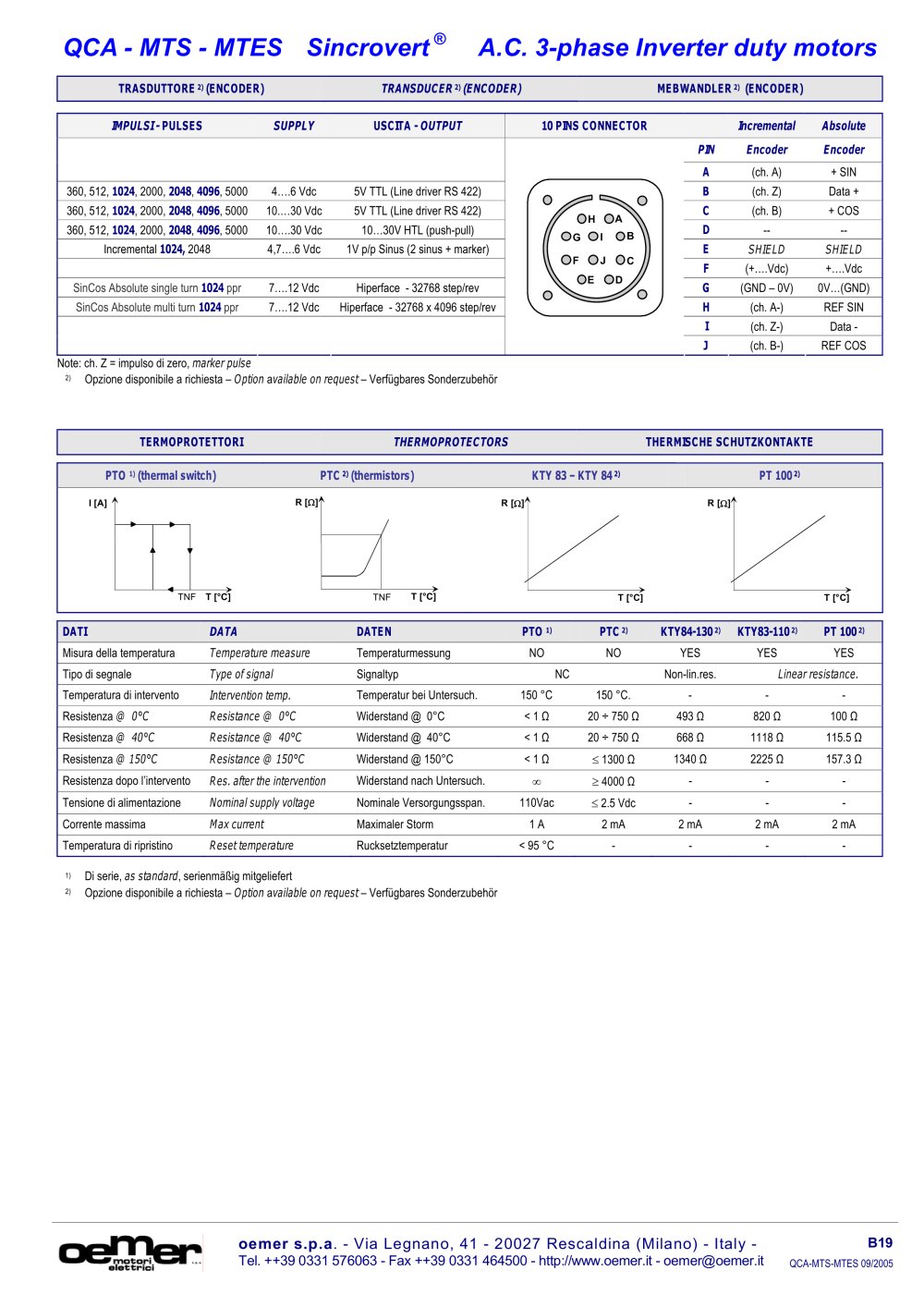

QCA - MTS - MTES Sincrovert

®

A.C. 3-phase Inverter duty motors

TRASDUTTORE
2) (ENCODER) TRANSDUCER
2) (ENCODER) MEBWANDLER
2) (ENCODER) IMPULSI - PULSES SUPPLY USCITA - OUTPUT 10 PINS CONNECTOR Incremental Absolute PIN Encoder Encoder A (ch. A)+ SIN 360, 512, 1024 , 2000, 2048 , 4096 , 50004….6 Vdc 5V TTL (Line driver RS 422) B (ch. Z) Data + 360, 512, 1024 , 2000, 2048 , 4096 , 500010.…30 Vdc 5V TTL (Line driver RS 422)
AHGIBFJCED C (ch. B) + COS 360, 512, 1024 , 2000, 2048 , 4096 , 500010….30 Vdc 10…30V HTL (push-pull) D -- -- Incremental 1024, 20484,7….6 Vdc 1V p/p Sinus (2 sinus + marker) E SHIELD SHIELD F (+….Vdc) +….Vdc SinCos Absolute single turn 1024 ppr 7….12 Vdc Hiperface - 32768 step/rev G (GND – 0V) 0V…(GND) SinCos Absolute multi turn 1024 ppr 7….12 Vdc Hiperface - 32768 x 4096 step/rev H (ch. A-) REF SIN I (ch. Z-) Data - J (ch. B-) REF COS Note: ch. Z = impulso di zero, marker pulse
2) Opzione disponibile a richiesta – Option a vailable on request – Verfügbares Sonderzubehör TERMOPROTETTORI THERMOPROTECTORS THERMISCHE SCHUTZKONTAKTE PTO
1) (thermal switch) PTC
2) (thermistors) KTY 83 – KTY 84
2) PT 100
2) I [A] T [°C] R [ ]T [ C] R [ ]T R [ ]T TNF TNF [ C ] [ C ] DATI DATA DATEN PTO
1) PTC
2) KTY84-130
2) KTY83-110
2) PT 100
2) Misura della temperatura Temperature measure Temperaturmessung NO NO YES YES YES Tipo di segnale Type of signal Signaltyp NC Non-lin.res. Linear resistance. Temperatura di intervento Intervention temp. Temperatur bei Untersuch. 150 °C 150 °C. - - - Resistenza @ 0°C Resistance @ 0°C Widerstand @ 0°C
1) Di serie, as standard , serienmäßig mitgeliefert
2) Opzione disponibile a richiesta – Option a vailable on request – Verfügbares Sonderzubehör

oemer s.p.a . - Via Legnano, 41 - 20027 Rescaldina (Milano) - Italy -

B19 Tel. ++39 0331 576063 - Fax ++39 0331 464500 - http://www.oemer.it - oemer@oemer.it

QCA-MTS-MTES 09/2005
